Keyless Entry Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

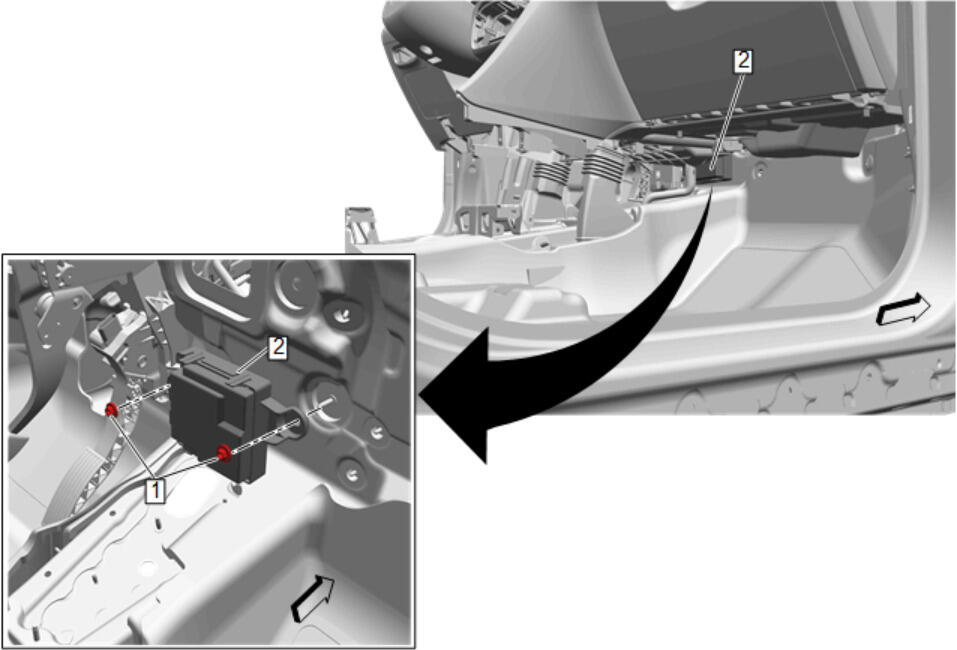

Callout	Component Name
Preliminary Procedure Heater and Air Conditioning Evaporator and Blower Module Removal and Installation
1	Keyless Entry Control Module Bracket Nut [2x] CAUTION: Fastener Caution Tighten 4.3 N.m (38 lb in)
2	Keyless Entry Control Module Bracket Procedure Disconnect the electrical connectors. Transfer keyless entry control module as necessary.

Callout

Component Name

Keyless Entry Control Module Bracket Nut [2x]

CAUTION:

Tighten
4.3 N.m (38 lb in)

Keyless Entry Control Module Bracket

Procedure
