Keyless Entry Control Module Replacement

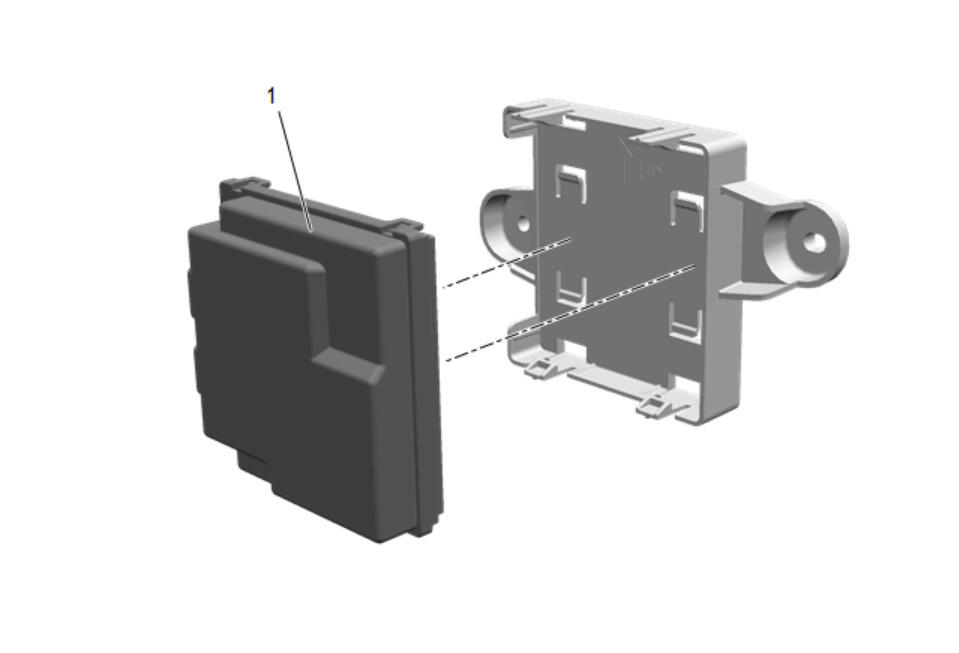

GM5285008Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Keyless Entry Control Module Bracket Replacement
1 Keyless Entry Control Module

Procedure

  1. Release the retaining tabs.
  2. Perform the necessary programming and setup procedure: K84 Keyless Entry Control Module: Programming and Setup
