Steering Gear Heat Shield Replacement

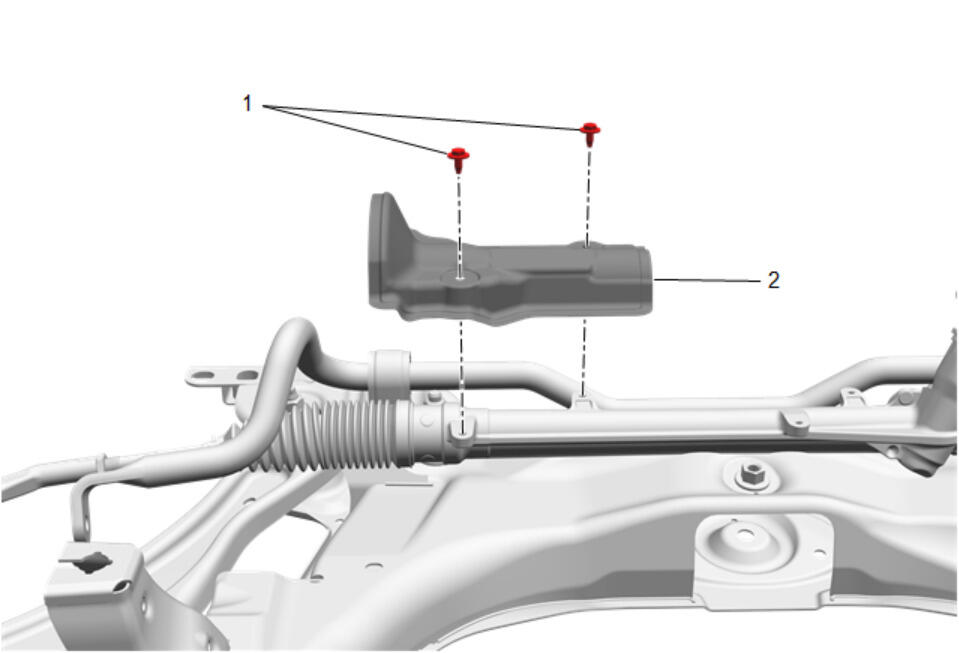

GM5282685Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Drivetrain and Front Suspension Cradle Removal and Installation (AWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (FWD)
1 Steering Gear Heat Shield Bolt
CAUTION:

Fastener Caution


Tighten
9 N.m (80 lb in)
2 Steering Gear Heat Shield
