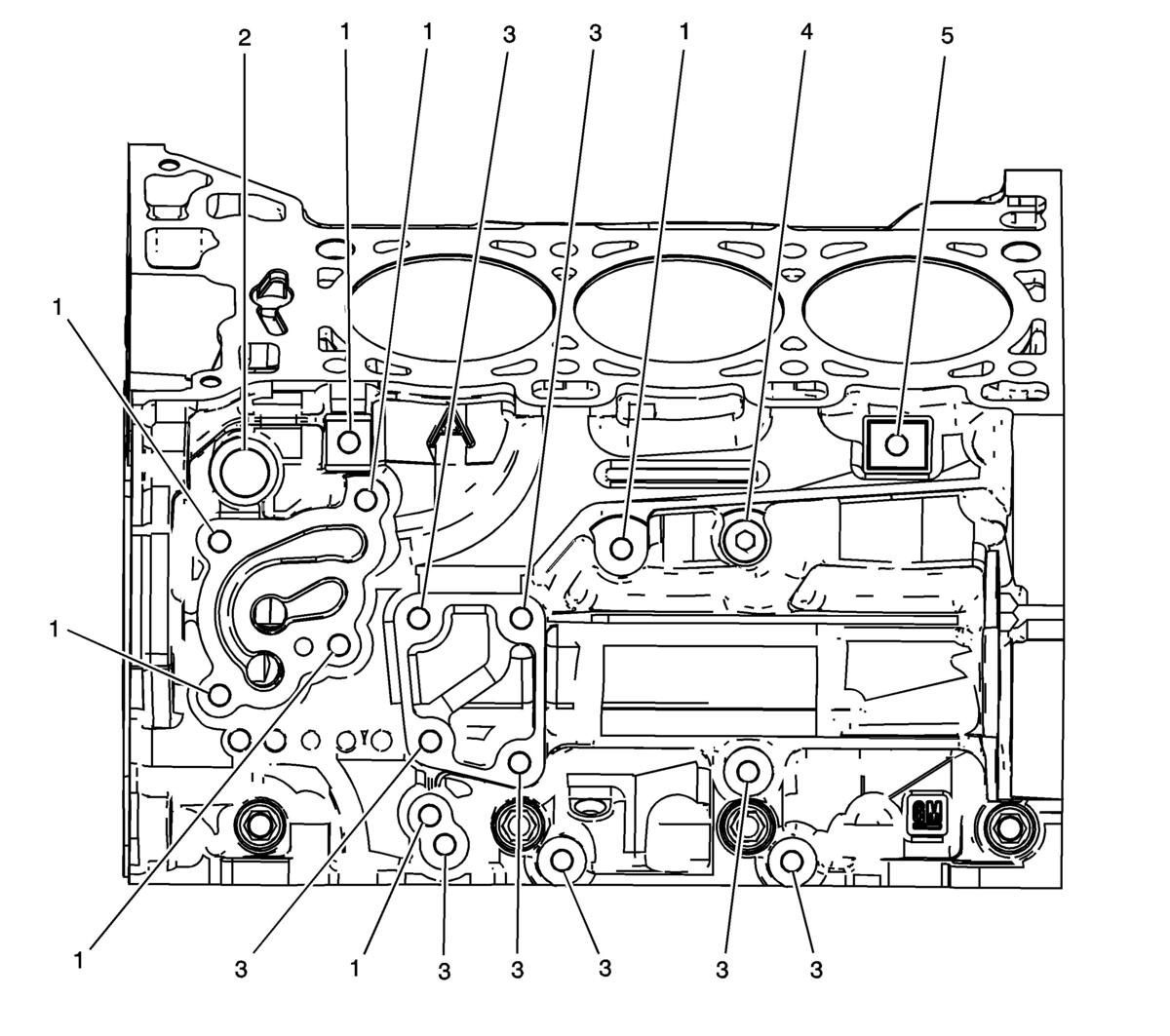

Engine Block Left Side
Engine Block Left Side
| Hole Location | Thread Size | Drill | Counter Bore Tool | Stop Collar | Tap | Driver | Insert | Drill Depth (Maximum) | Tap Depth (Minimum) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| J 42385 - | MM | (IN) | MM | (IN) | |||||||
| 1 | M8 x 1.25 | 206 | 207 | N/A | 208 | 209 | 210 | 28.5 | 1.1220 | 23.0 | 0.9055 |
| 2 | M20 x 1.5 | 715 | 716 | N/A | 717 | 718 | 719 | 30.0 | 1.1810 | 20.0 | 0.7874 |
| 3 | M10 x 1.5 | 211 | 212 | N/A | 213 | 214 | 215 | 33.5 | 1.3190 | 27.0 | 1.0630 |
| 4 | M14 x 1.5 | 409 | 410 | N/A | 411 | 412 | 735 | THRU | 15.0 | 0.5905 | |
| 5 | M8 x 1.25 | 206 | 207 | N/A | 208 | 209 | 415 | 16.5 | 0.6496 | 11.0 | 0.4331 |
