Arrows and Symbols

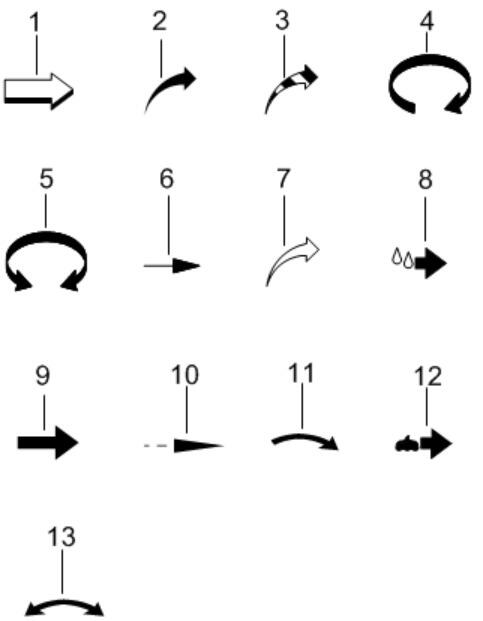

The arrows and symbols shown below are used in service information to indicate position of vehicle, direction, and location.
| Callout | Component Name |
|---|---|
| 1 | Front of Vehicle Arrow - Direction of arrow may vary. |
| 2 | View Detail Arrow - Direction of arrow may vary. |
| 3 | Ambient Air Mixed with Another Gas or Indicate Temperature Change Arrow - Direction of arrow may vary. |
| 4 | Motion or Direction Single Arrow |
| 5 | Motion or Direction Double Arrow |
| 6 | Dimension Arrow - Used for showing a dimension. |
| 7 | Ambient/Clean Air Flow or Cool Air Flow Arrow - Direction of arrow may vary. |
| 8 | Lubrication Point Arrow - Oil or Fluid |
| 9 | Task Related Arrow - Used to show task related location. |
| 10 | Sectioning Arrow - Used to show sectioning. |
| 11 | Motion Arrow - Direction of arrow may vary. |
| 12 | Lubrication Point Arrow - Grease or Petroleum Jelly |
| 13 | Multidirectional Arrow |
