Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

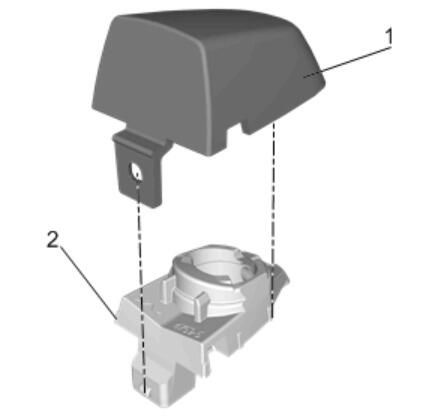

Install the front side door lock cylinder opening cover (1) to the lock cylinder insulator.(2)
Courtesy of GENERAL MOTORS COMPANY

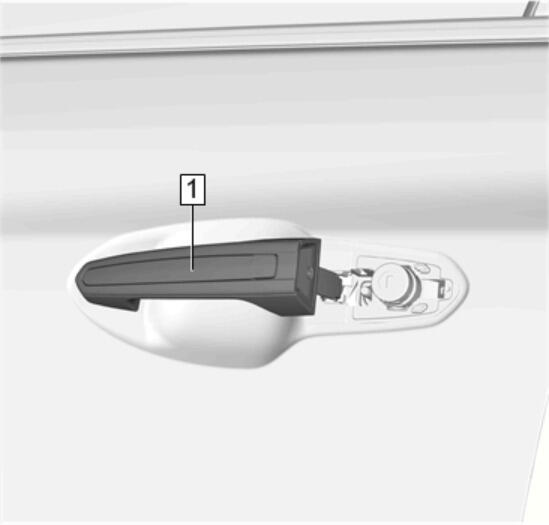

Pull the door handle (1) out to the open position.
Courtesy of GENERAL MOTORS COMPANY

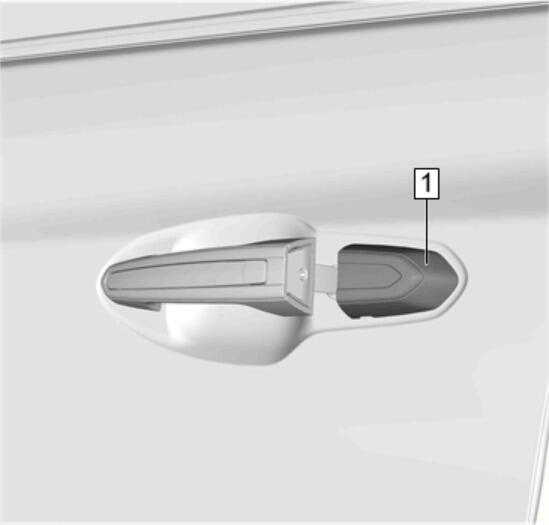

Front Side Door Lock Cylinder Bezel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

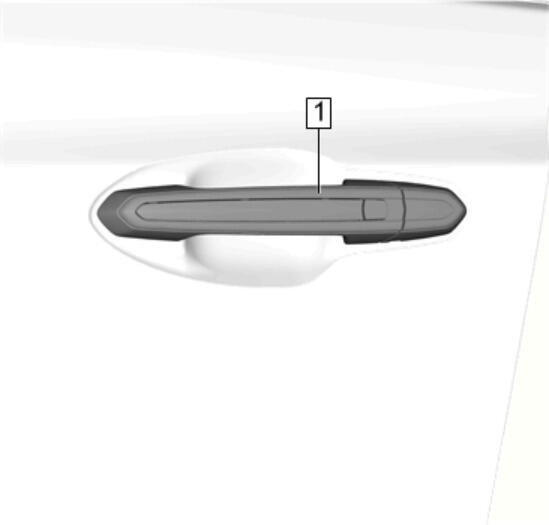

Place the front side door outside handle (1) in the closed position.
Courtesy of GENERAL MOTORS COMPANY

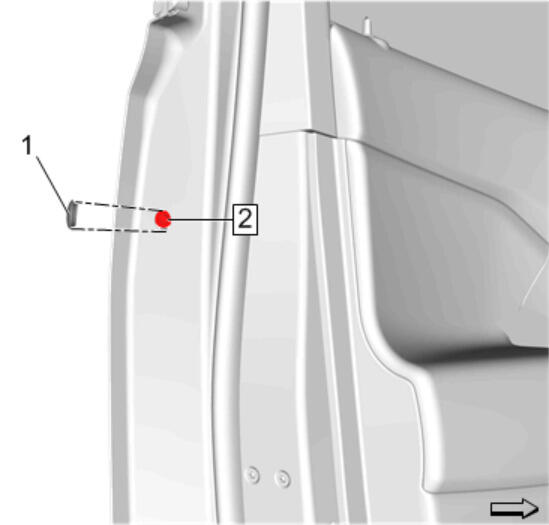

CAUTION:
Refer to Fastener Caution .

Front Side Door Outside Handle Lock Cylinder Screw (2) - Tighten 4 N.m (31 lb in)
Front Side Door Lock Cylinder Opening Cover (1) - Install
