Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Access Hole Cover (1) - Remove

NOTE:

USE HAND TOOL ONLY. Using a battery operated gun or power tool can BREAK the component.
Around 10 - 12 rotations is enough to allow the Front Side Door Outside Handle Lock Cylinder to be removed.

Front Side Door Outside Handle Lock Cylinder Screw (2) - Loosen
Courtesy of GENERAL MOTORS COMPANY

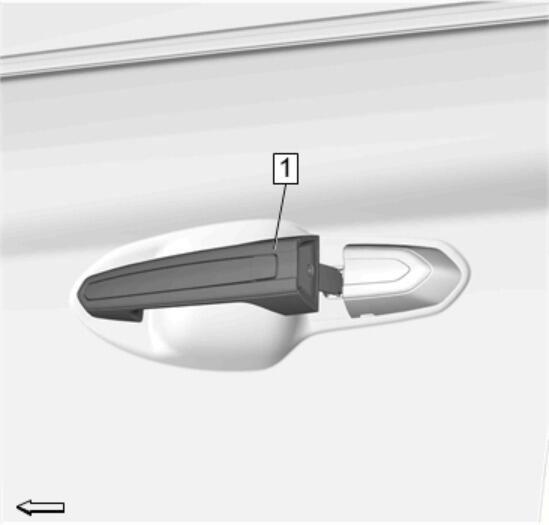

Pull the door handle (1) out to the open position.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Cylinder Bezel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

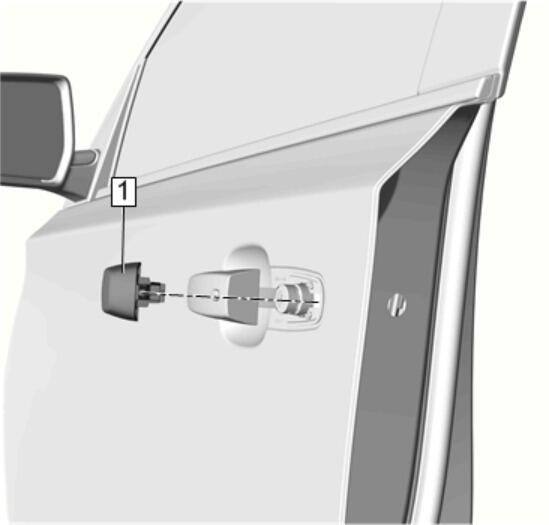

Using the appropriate tool, remove the front side door lock cylinder opening cover (1) from the lock cylinder insulator.(2)
