Front Side Door Lock Cylinder Rod Replacement

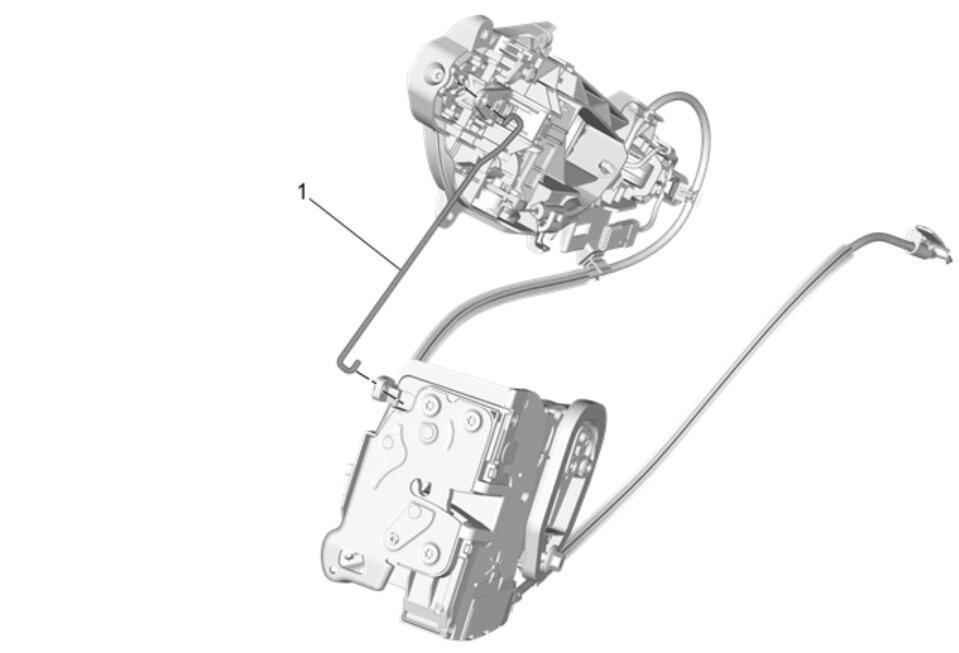

GM3825621Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Latch Replacement
1 Front Side Door Lock Cylinder Rod

Procedure

  1. Remove the front side door lock cylinder rod from the lock cylinder by turning the housing bracket clockwise.
  2. Release the lock cylinder rod from the latch only. Do NOT remove the door handle cables from the latch.
