Front Side Door Locking Rod Knob Replacement

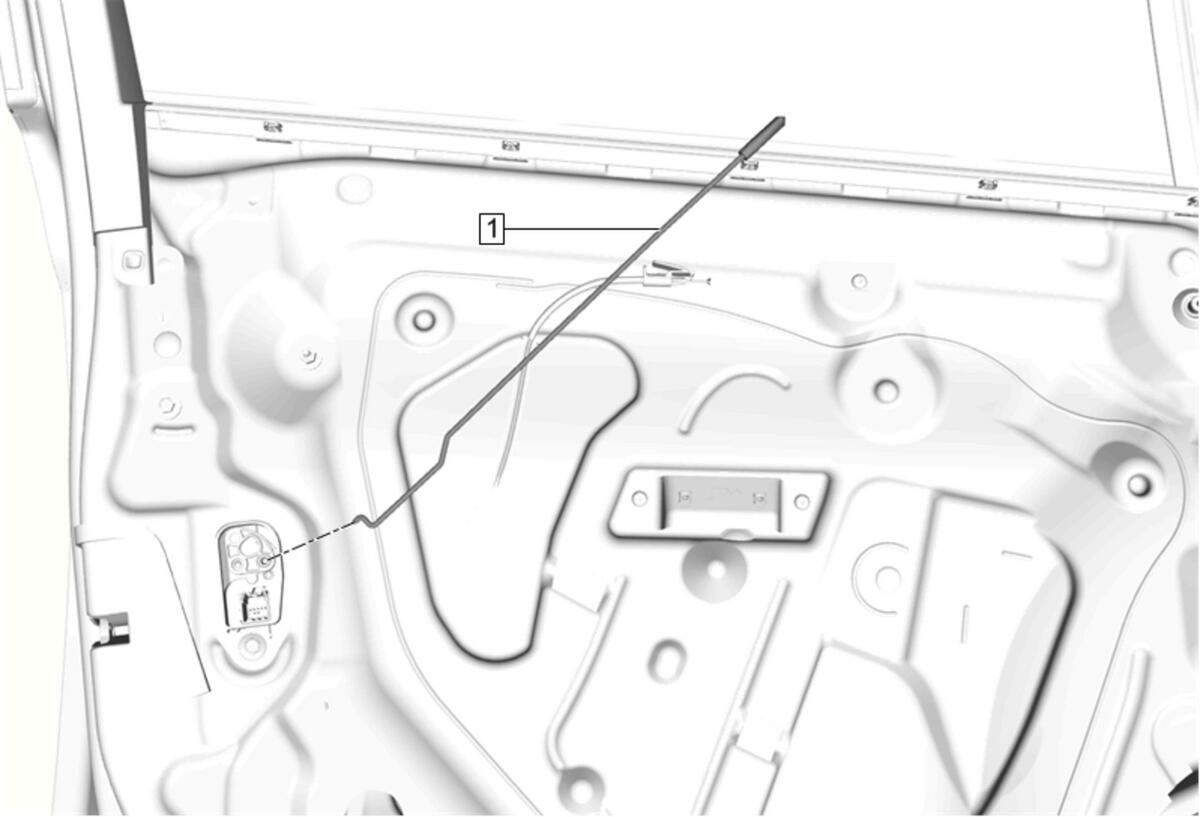

GM4293867Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Trim Replacement
1 Front Side Door Locking Rod Knob
Procedure
Turn the locking rod down, while twisting it out to releasing it from the latch.
