Liftgate Close Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Liftgate Lower Trim Finish Panel Replacement

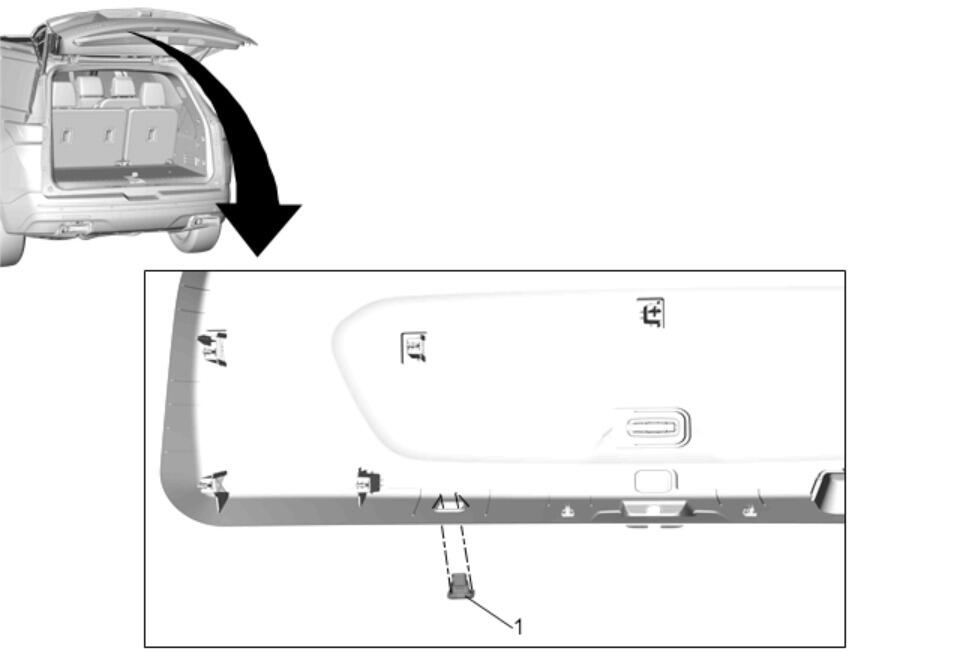

1	Liftgate Close Switch Procedure Disconnect the electrical connector. Release the liftgate close switch retainers and push out from the liftgate trim finish panel.

Callout

Component Name

Liftgate Close Switch

Procedure

Disconnect the electrical connector.
Release the liftgate close switch retainers and push out from the liftgate trim finish panel.
