Liftgate Latch Striker Replacement

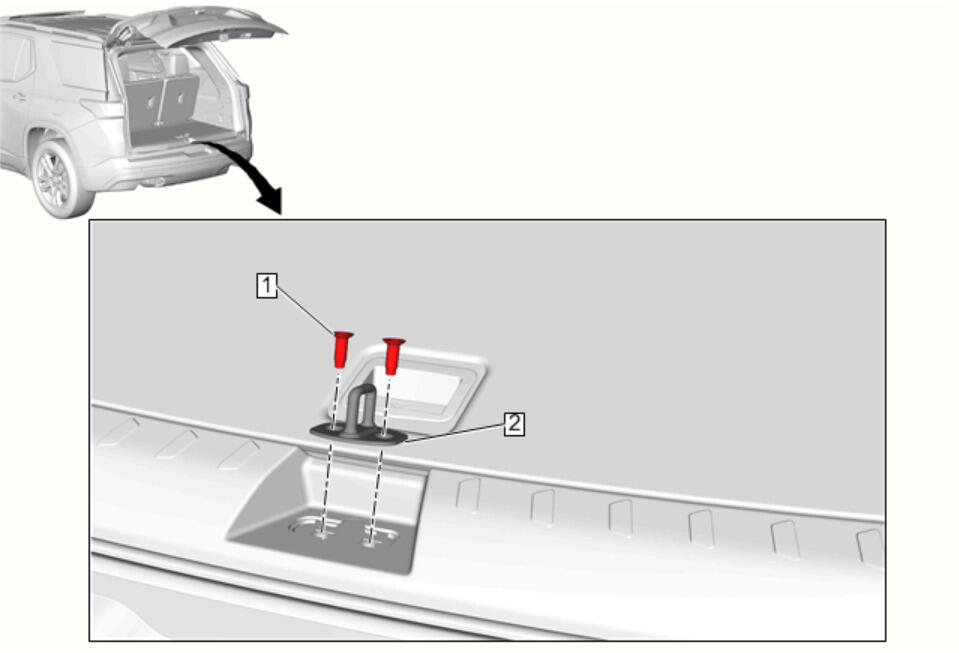

| Callout | Component Name |
|---|---|
| 1 | Liftgate Latch Striker Bolt [ 2x ]
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Liftgate Latch Striker Procedure Mark the location of the striker with a grease pencil to ensure proper alignment during installation. |
