Liftgate Side Sensor Replacement

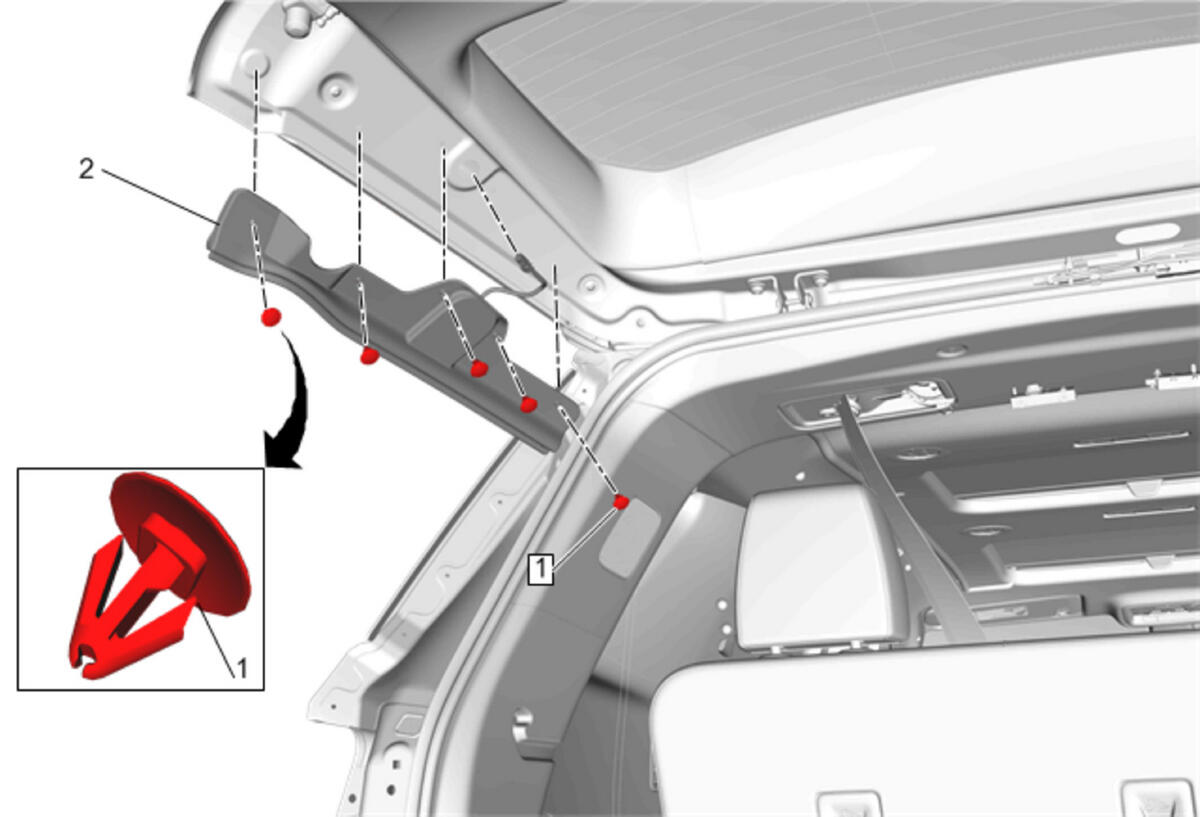

GM4736269Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the liftgate.
1 Liftgate Side Sensor Retainer [ 5x ]
2 Liftgate Side Sensor

Procedure

  1. Using a trim type tool, release the retainers.
  2. Disconnect the electrical connector.
