Rear Closure Fixed Handle Applique Replacement

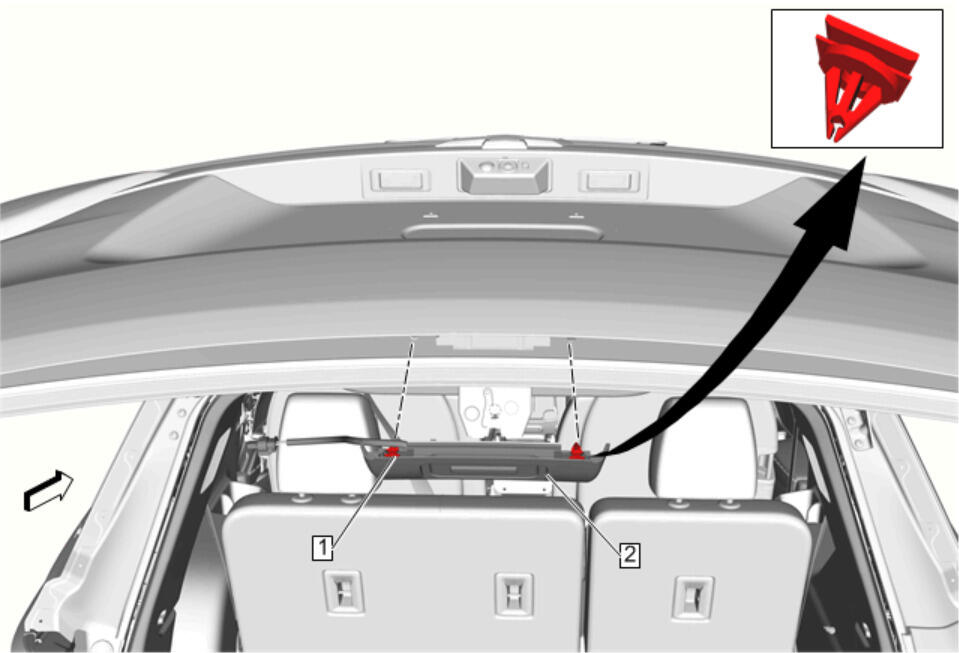

GM4738653Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the liftgate.
1 Rear Closure Fixed Handle Applique Retainer [ 2x ]
2 Rear Closure Fixed Handle Applique

Procedure

  1. Release the retainers.
  2. Disconnect the electrical connector:
  3. Close the liftgate.
