Rear Closure Hands Free Module Replacement

Courtesy of GENERAL MOTORS COMPANY

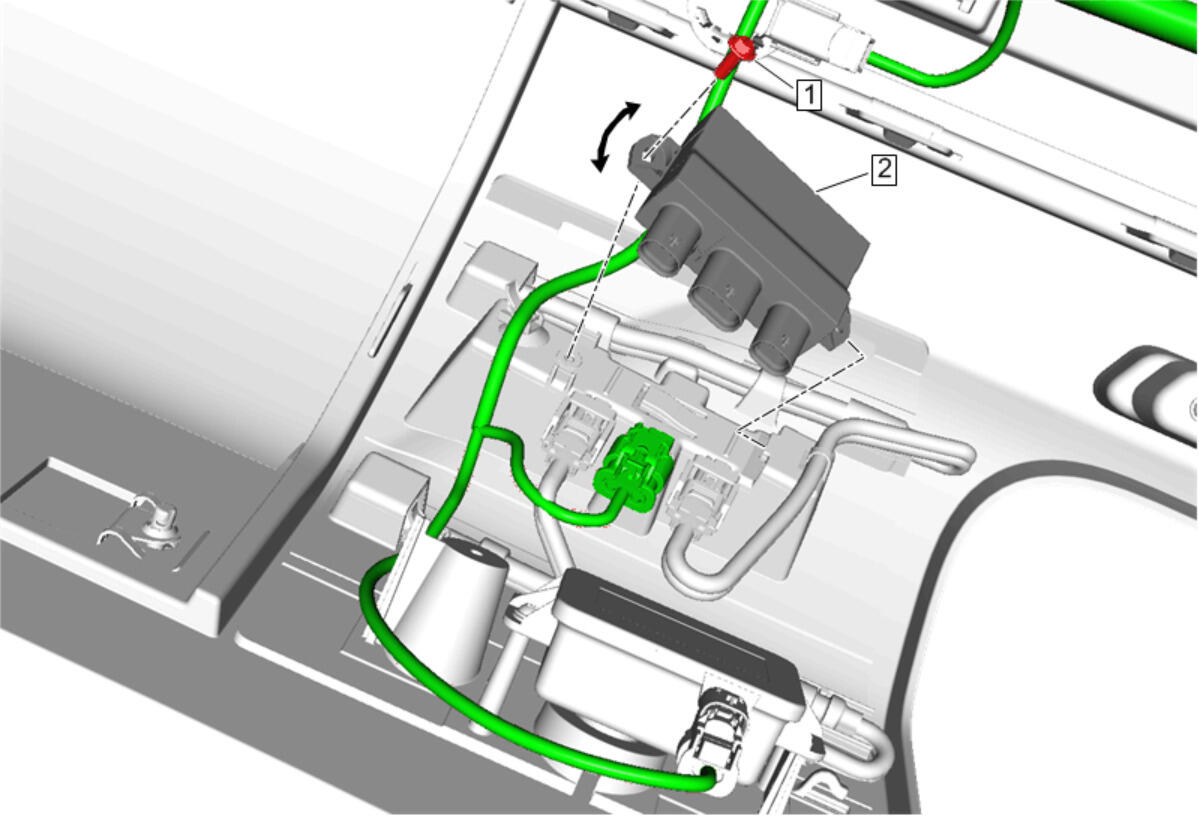

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Energy Absorber Replacement
1	Rear Closure Hands Free Module Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Closure Hands Free Module Procedure Disconnect all electrical connectors. Tilt the module upward to remove.

Callout

Component Name

Rear Closure Hands Free Module Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear Closure Hands Free Module

Procedure
