Installation Procedure

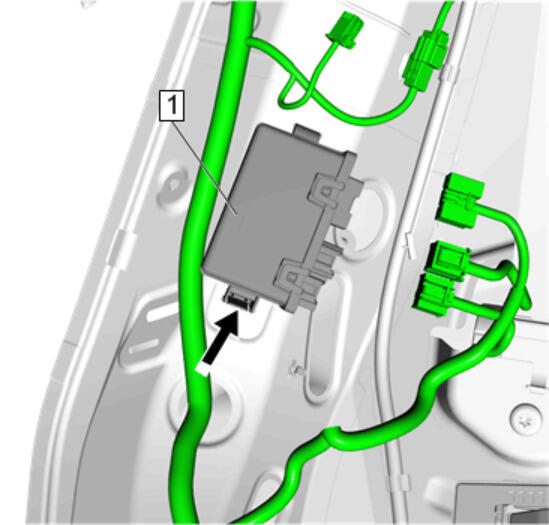

  1. GM4743589Courtesy of GENERAL MOTORS COMPANY

    Accessory and Liftgate Control Module (1) - Install

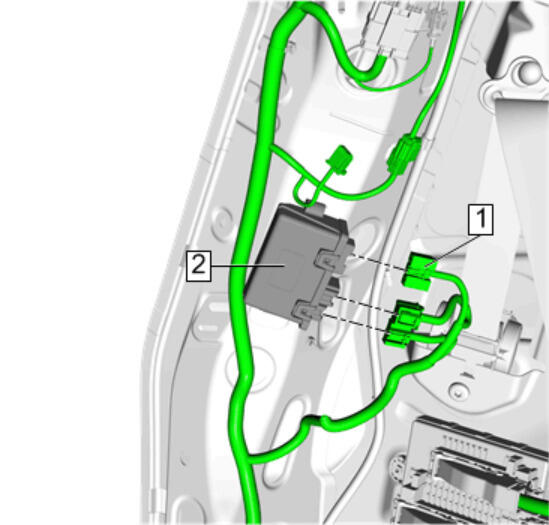

  2. GM4743584Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Accessory and Liftgate Control Module (2) - Connect

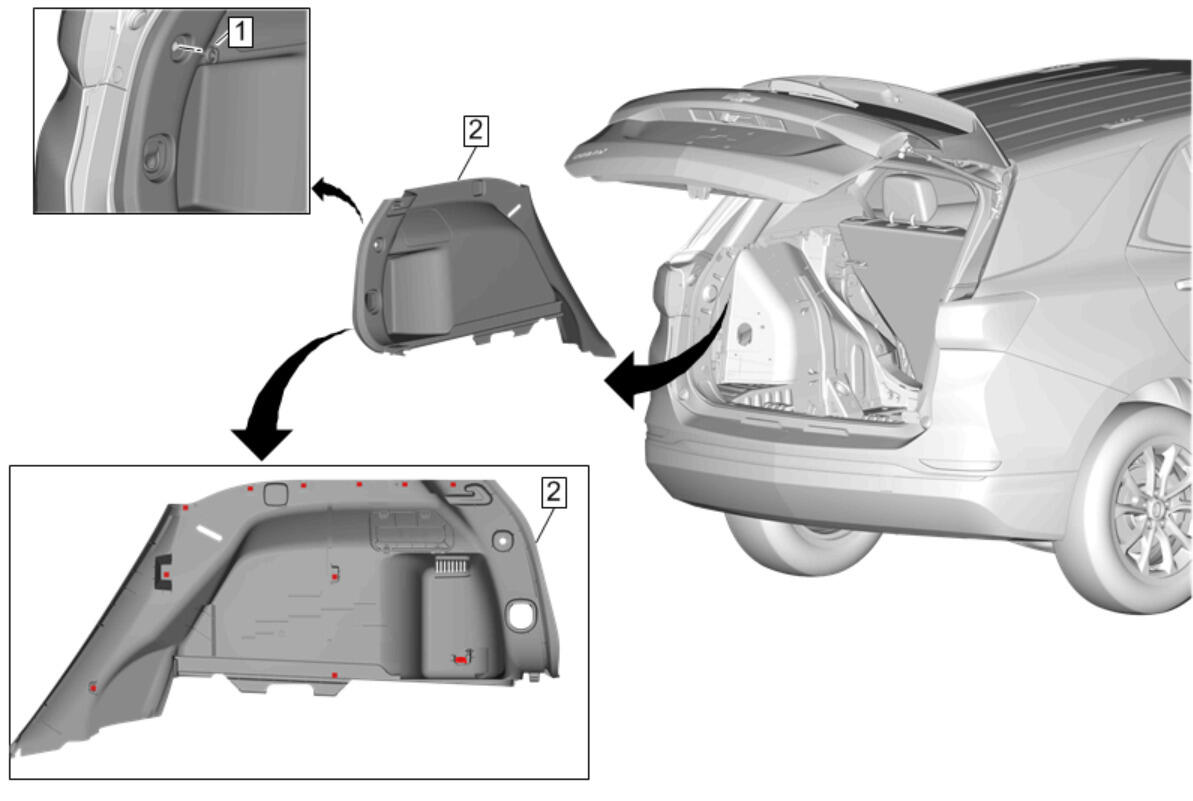

  3. GM4592670Courtesy of GENERAL MOTORS COMPANY

    Quarter Lower Rear Trim Panel (2) - Install - Quarter Lower Rear Trim Panel Replacement (Right Side) , or Quarter Lower Rear Trim Panel Replacement (Left Side)

  4. Perform the necessary programming and setup procedure: Control Module References
