Remote Function Actuator Module Replacement

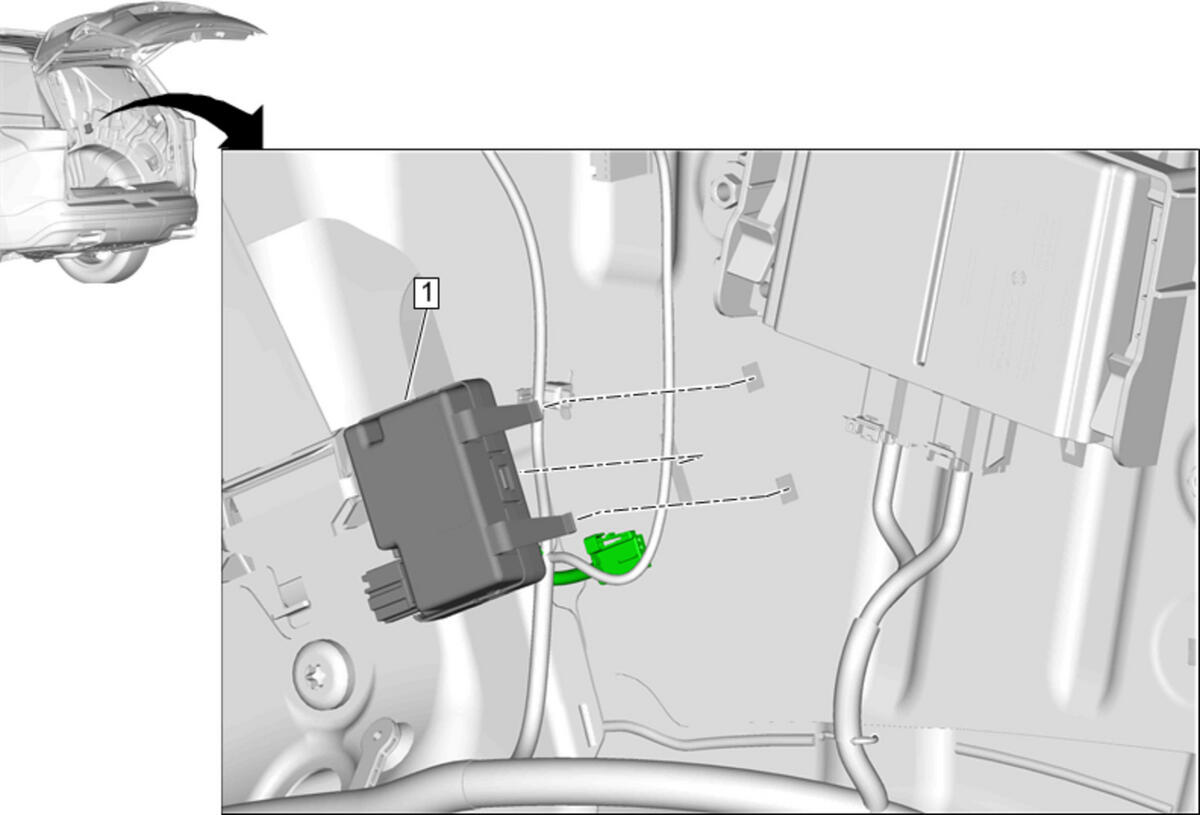

GM4753438Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Quarter Lower Rear Trim Panel Replacement (Right Side) , or Quarter Lower Rear Trim Panel Replacement (Left Side)
1 Remote Control Door Lock Receiver

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
