Inside Rearview Mirror Replacement

Courtesy of GENERAL MOTORS COMPANY

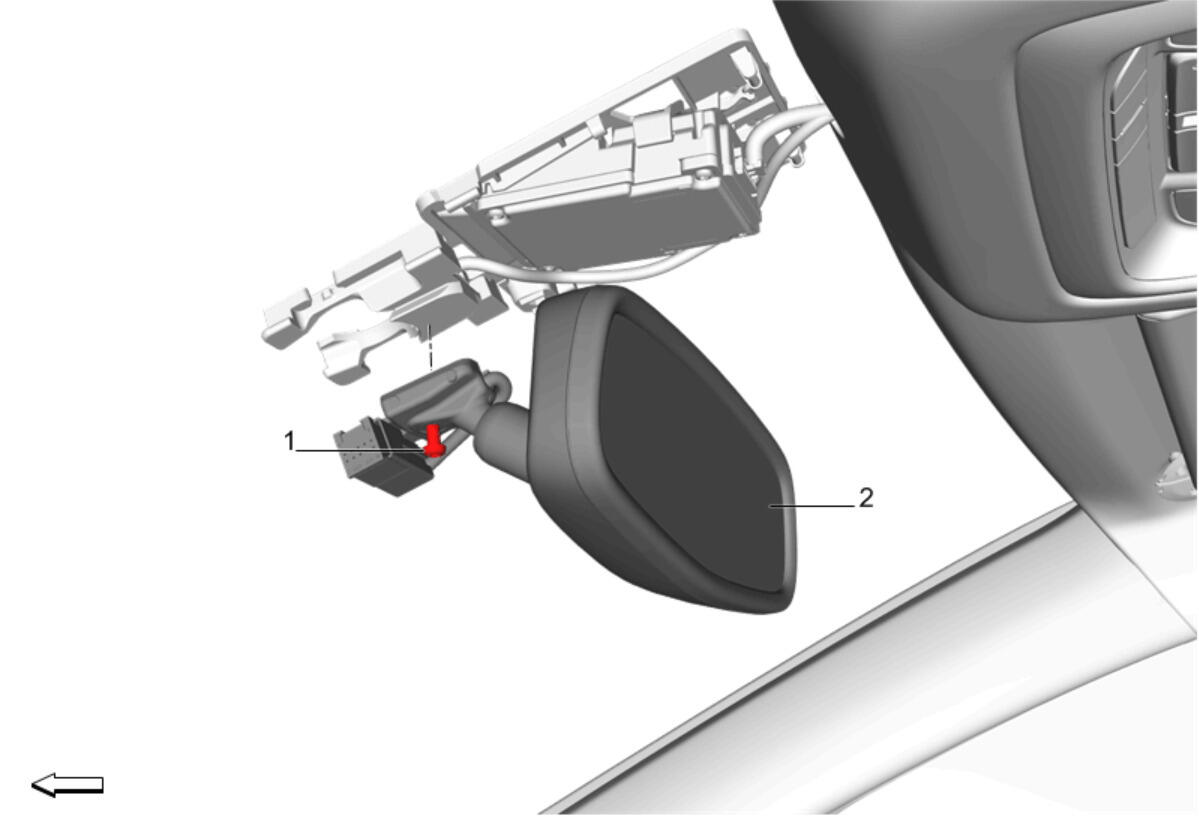

Callout	Component Name
WARNING: While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal. Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement (With UHX) , or Windshield Multifunction Sensor Mount Bracket Cover Replacement (Without UHX)
1	Inside Rearview Mirror Set Screw CAUTION: Refer to Fastener Caution . Procedure Loosen the set screw located at the base of the mirror. Tighten 1.8 N.m (16 lb in)
2	Inside Rearview Mirror Procedure Slide the mirror off the rearview mirror button. Disconnect the electrical connector.

Callout

Component Name

WARNING:

While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal.

Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement (With UHX) , or Windshield Multifunction Sensor Mount Bracket Cover Replacement (Without UHX)

Inside Rearview Mirror Set Screw

CAUTION:

Refer to Fastener Caution .

Procedure
Loosen the set screw located at the base of the mirror.
Tighten
1.8 N.m (16 lb in)

Inside Rearview Mirror

Procedure

Slide the mirror off the rearview mirror button.
Disconnect the electrical connector.
