Driver Seat Adjuster Memory Module Replacement

Courtesy of GENERAL MOTORS COMPANY

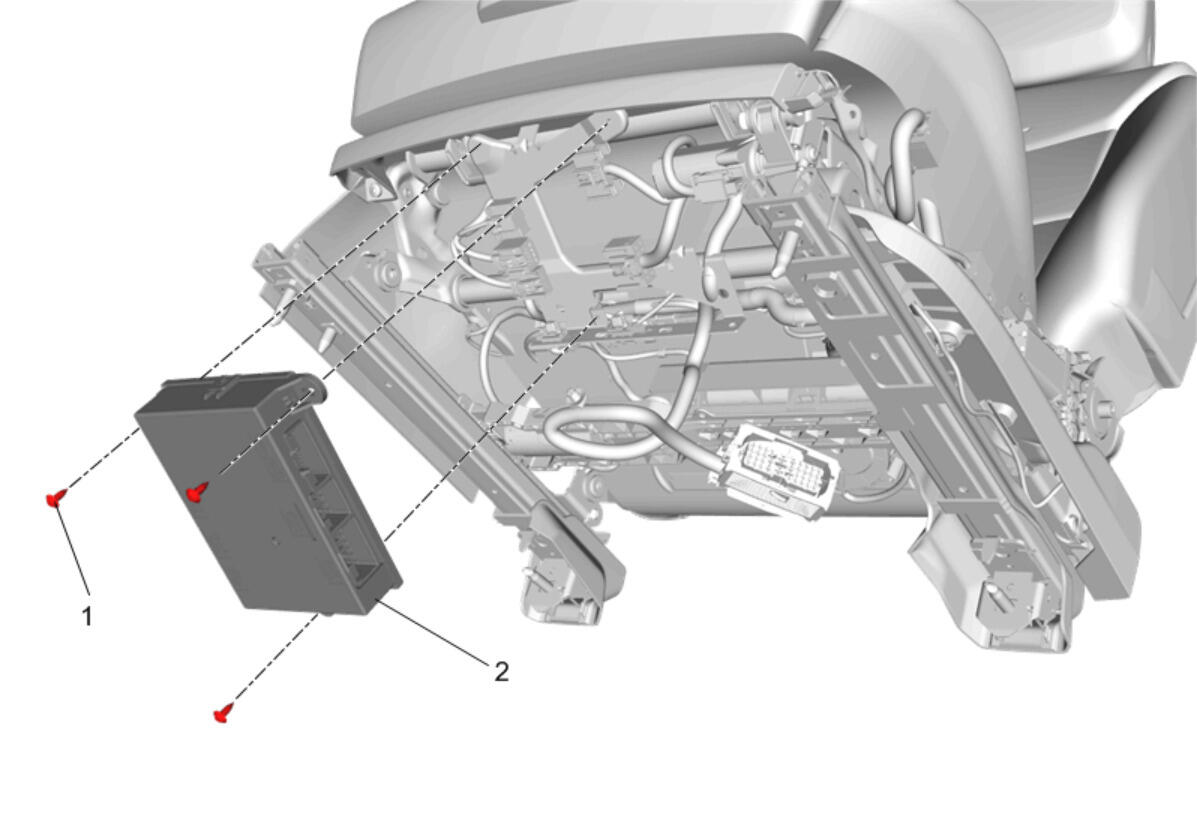

Callout	Component Name
Preliminary Procedure Front Seat Removal and Installation - Reposition
1	Driver Seat Adjuster Memory Module Fastener [ 3x ] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Driver Seat Adjuster Memory Module Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Front Seat Removal and Installation - Reposition

Driver Seat Adjuster Memory Module Fastener [ 3x ]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Driver Seat Adjuster Memory Module

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure: Control Module References
