Folding 3rd Row Seat Module Replacement

Courtesy of GENERAL MOTORS COMPANY

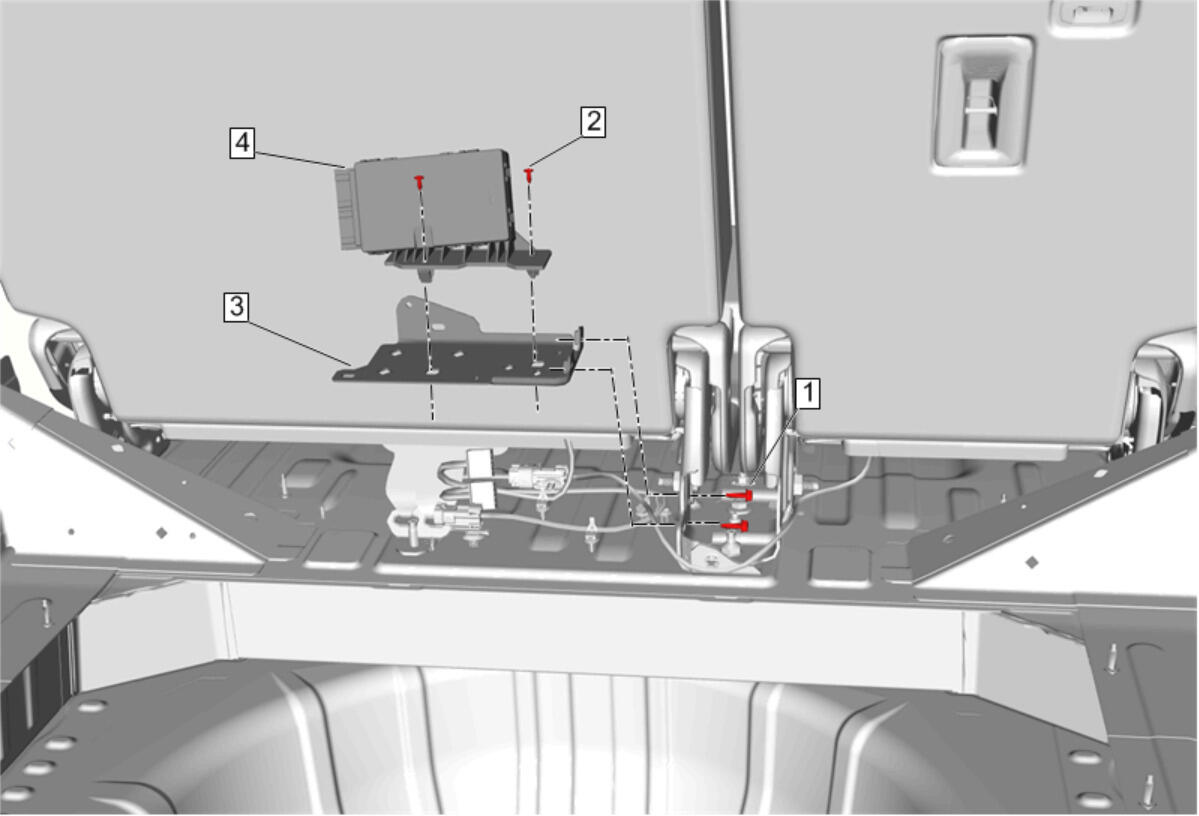

Callout	Component Name
1	Folding 3rd Row Seat Bracket Bolt [ 2x ] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Folding 3rd Row Seat Module Screw [ 2x ] Tighten 2.5 N.m (22 lb in)
3	Folding 3rd Row Seat Bracket
4	Folding 3rd Row Seat Module Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: Control Module References
