Installation Procedure

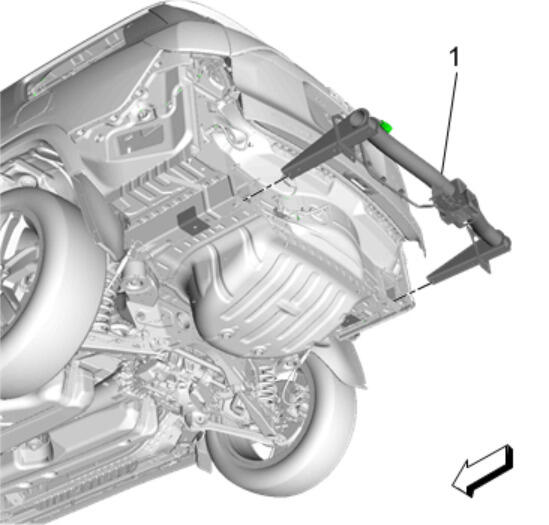

  1. GM4375796Courtesy of GENERAL MOTORS COMPANY

    Trailer Hitch Assembly (1) - Install

  2. GM4375795Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

    Trailer Hitch Support Bracket Bolt - Underside (1) - Install and tighten [4x] 100 N.m (74 lb ft)

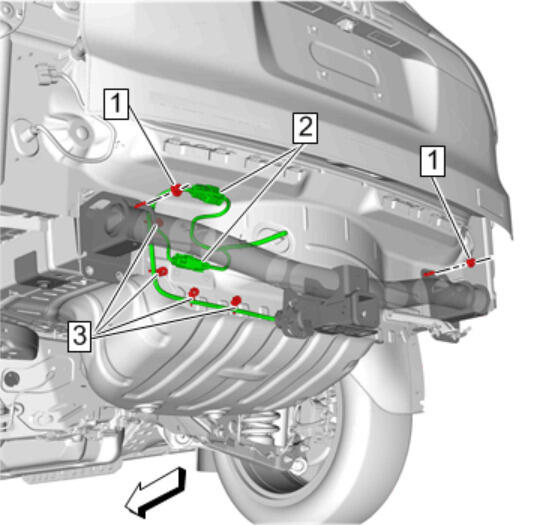

  3. GM4375793Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (2) - Connect [2x]

  4. Trailer Hitch Support Bracket Nut (1) - Install and tighten [2x] 58 N.m (43 lb ft)
  5. Retainer (3) - Engage [4x]
  6. Exhaust Muffler - Install - Exhaust Muffler Replacement
  7. Rear Bumper Fascia - Install - Rear Bumper Fascia Removal And Installation
