Installation Procedure
- Electronic Brake and Traction Control Module Bracket - Install - Electronic Brake and Traction Control Module Bracket Replacement

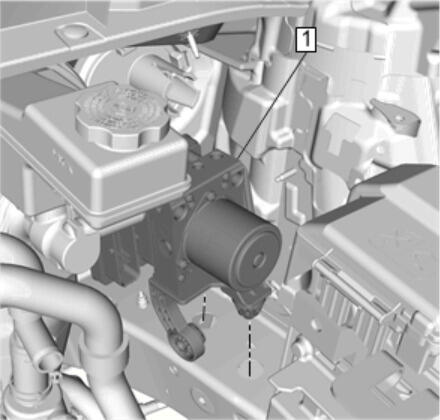

Electronic Brake Control Module with Brake Pressure Modulator Valve Assembly (1) - Install
- CAUTION:

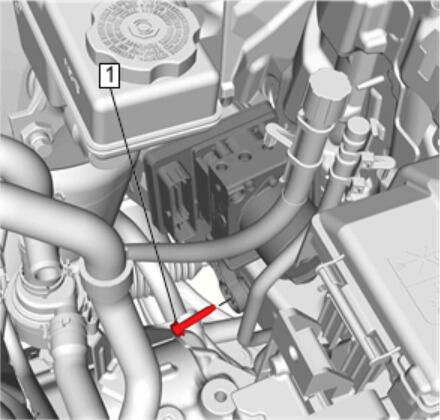

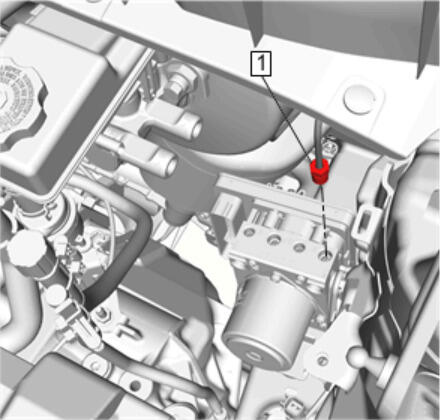

Brake Pressure Modulator Valve Bracket Bolt (1) - Install and tighten 22 N.m (16 lb ft)
- Remove the cap from the brake pipe fitting and the plug from the BPMV outlet port.

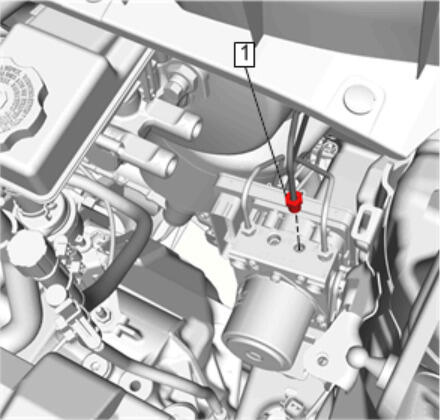

Left Rear Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
- Remove the cap from the brake pipe fitting and the plug from the BPMV outlet port.

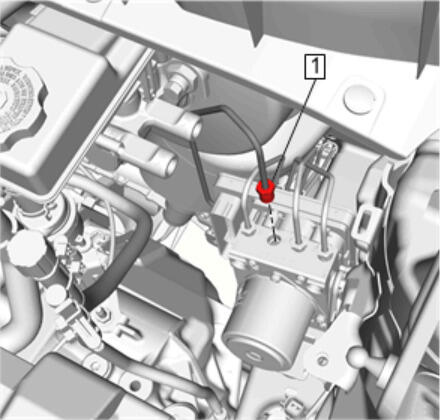

Right Rear Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
- Remove the cap from the brake pipe fitting and the plug from the BPMV outlet port.

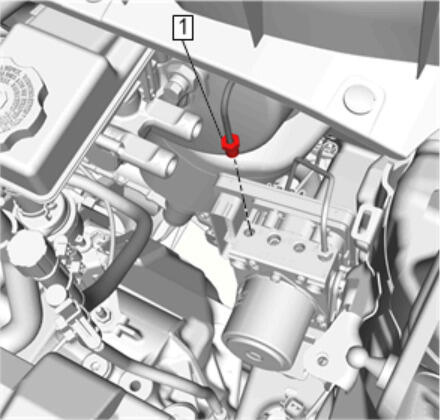

Right Front Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
- Remove the cap from the brake pipe fitting and the plug from the BPMV outlet port.
Left Front Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
- Connect the EBCM electrical connector.
- Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Pipe - Install - Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Pipe Replacement
- Brake Pressure Modulator Valve Master Cylinder Reservoir Front Pipe - Install - Brake Pressure Modulator Valve Master Cylinder Reservoir Front Pipe Replacement
- Reposition and install the radiator surge tank. - Radiator Surge Tank Replacement
- Bleed the brake system. Antilock Brake System Automated Bleed
- Program the EBCM. Control Module References
- Center the steering angle sensor. Steering Wheel Angle Sensor Centering
