Installation Procedure

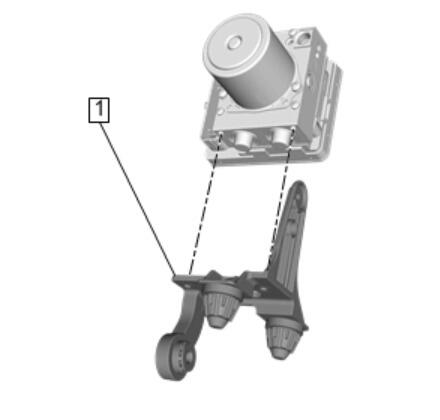

  1. GM4260199Courtesy of GENERAL MOTORS COMPANY

    Brake Pressure Modulator Valve Bracket (1) - Install

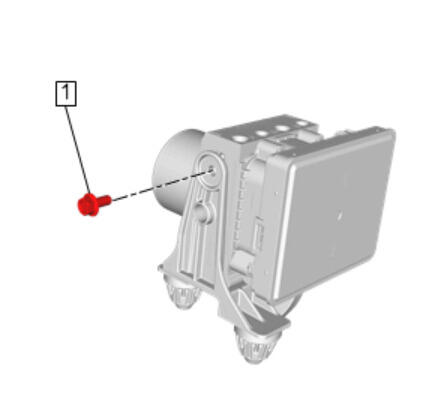

  2. GM4260207Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Brake Pressure Modulator Valve Bolt (1) - Install and tighten 11 N.m (97 lb in)

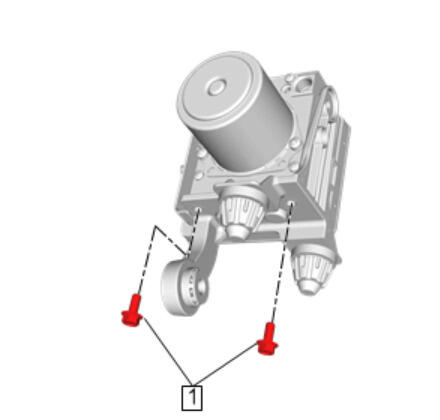

  3. GM4260202Courtesy of GENERAL MOTORS COMPANY

    Brake Pressure Modulator Valve Bolt (1) - Install and tighten 11 N.m (97 lb in) [ 2x ]

  4. Electronic Brake Control Module with Brake Pressure Modulator Valve - Install - Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement
