Installation Procedure

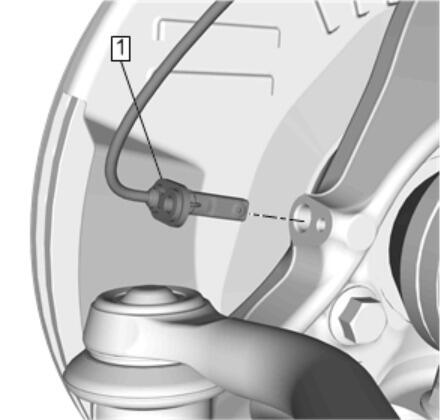

  1. GM4260246Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor (1) - Install

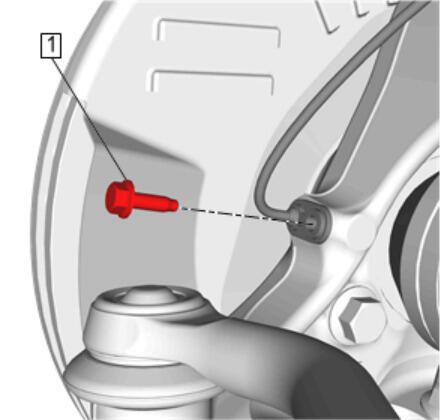

  2. GM4260243Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Wheel Speed Sensor Bolt (1) - Install and tighten 9 N.m (80 lb in)

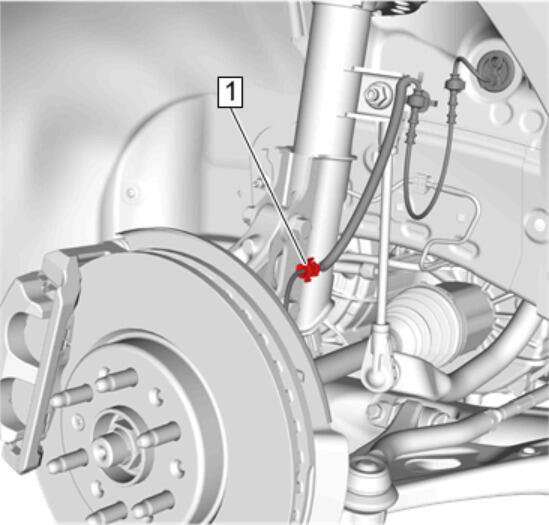

  3. GM4774040Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) @ Strut Assembly - Secure

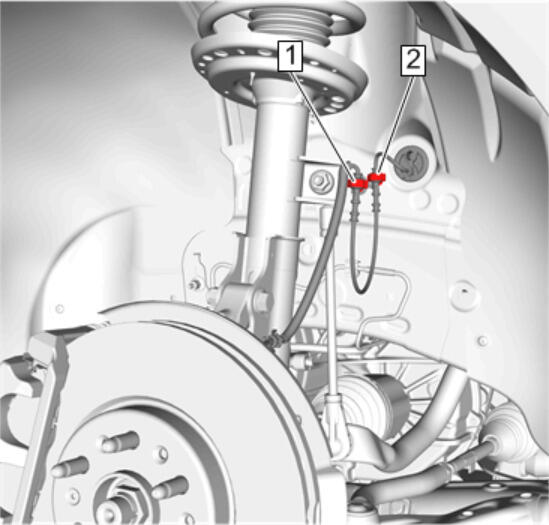

  4. GM4774037Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) @ Strut Assembly - Secure

  5. Retainer (2) @ Wheelhouse - Secure
  6. GM4774035Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor Harness Pass Through Grommet (1) - Secure

  7. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
  8. Lower the vehicle.

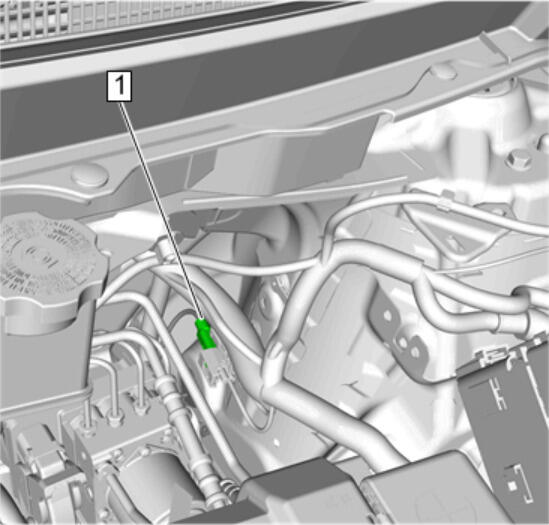

  9. GM4774031Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor Electrical Connector (1) - Connect

  10. Reposition and install the radiator surge tank. Radiator Surge Tank Replacement
  11. Verify the repair is complete. Diagnostic Repair Verification
