Installation Procedure

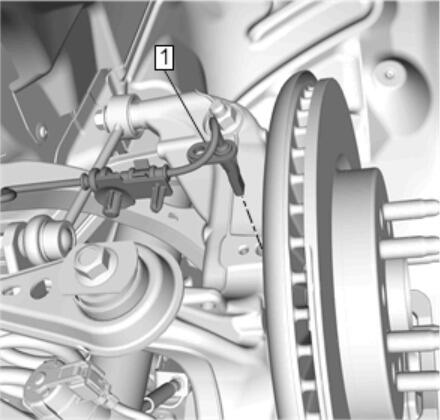

  1. GM4260267Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor (1) - Install

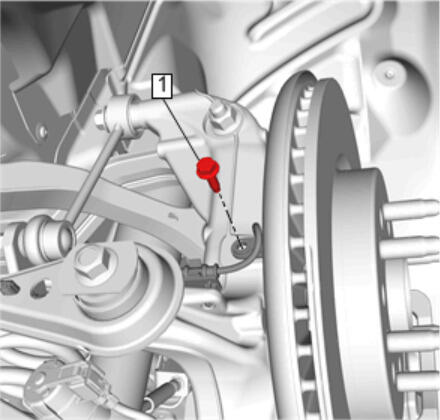

  2. GM4260264Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Wheel Speed Sensor Bolt (1) - Install and tighten 9 N.m (80 lb in)

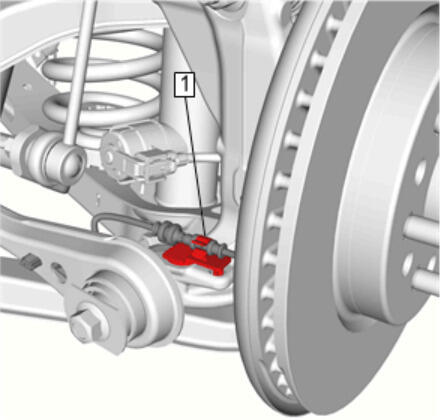

  3. GM4260262Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) @ Knuckle - Secure

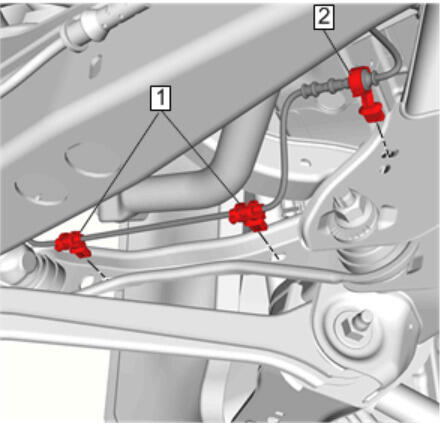

  4. GM4260257Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) @ Rear Toe Link - Secure [ 2x ]

  5. Retainer (2) @ Rear Toe Link Bracket - Secure

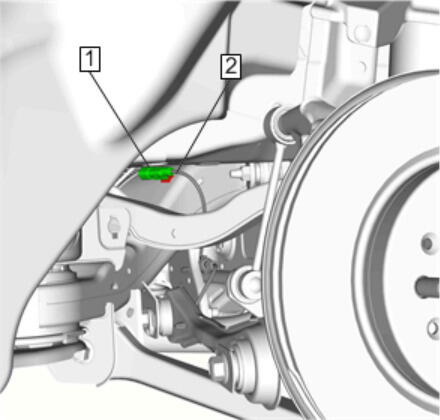

  6. GM4260253Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor Electrical Connector (1) - Connect

  7. Retainer (2) @ Rear Cradle - Secure
  8. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
  9. Verify the repair is complete. Diagnostic Repair Verification
