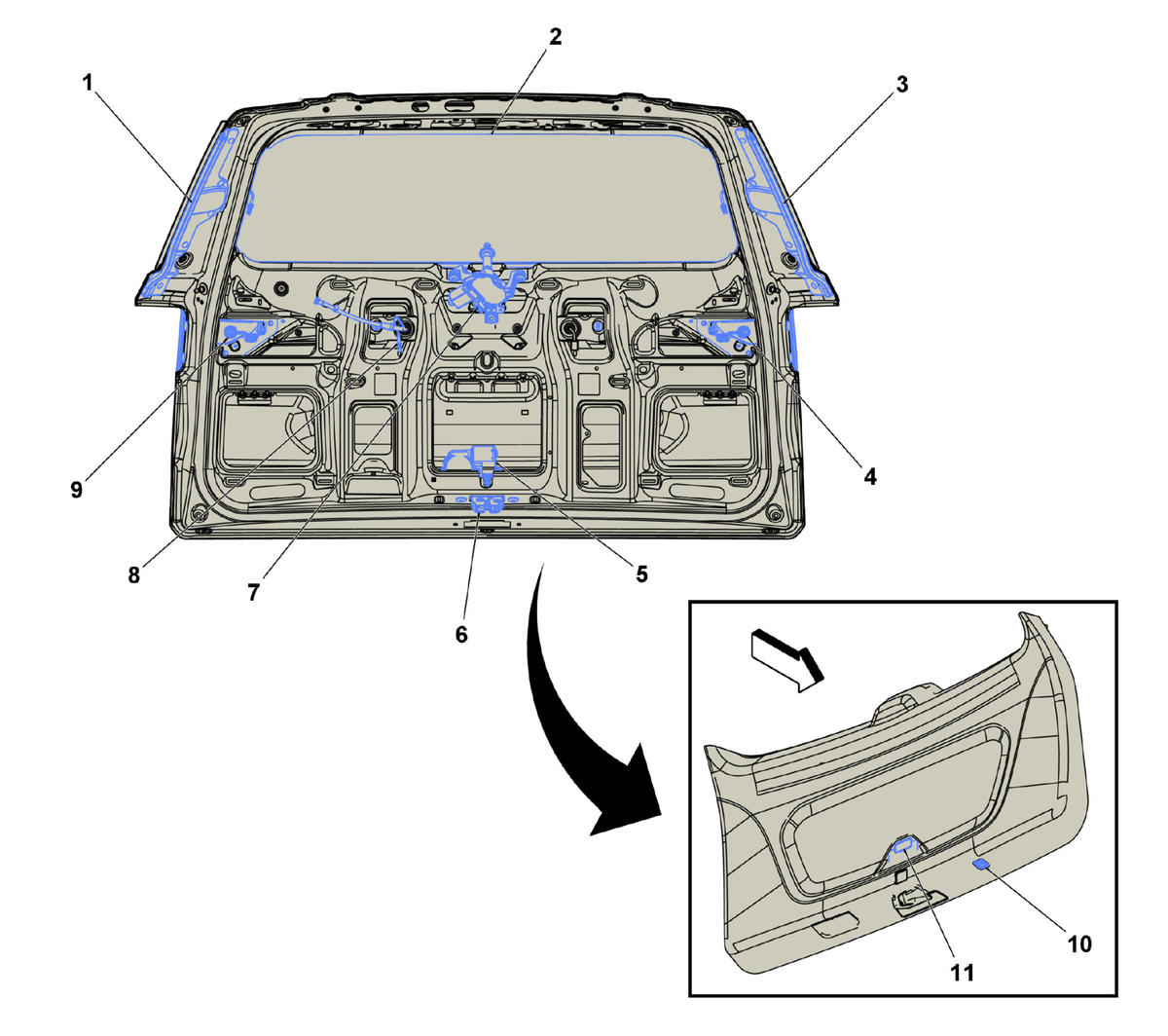

Liftgate Components
Liftgate Components
| Component Name | Callout |
|---|---|
| B71R Liftgate Object Sensor - Right (TB5 or TC2) B71R Liftgate Object Sensor - Right (TB5/TC2) | 1 |
| E18 Rear Defogger Grid E18 Rear Defogger Grid X1 , or E18 Rear Defogger Grid X2 | 2 |
| B71L Liftgate Object Sensor - Left (TB5 or TC2) B71L Liftgate Object Sensor - Left (TB5/TC2) | 3 |
| E5G Tail Lamp - Left Inner E5G Tail Lamp - Left Inner | 4 |
| A23C Liftgate Latch Assembly (TB5 or TC2) A23C Liftgate Latch Assembly | 5 |
| M30 Liftgate Latch (Without TB5 or TC2) M30 Liftgate Latch | 6 |
| M45 Rear Wiper Motor M45 Rear Wiper Motor | 7 |
| B87 Rearview Camera B87 Rearview Camera X1 (UV2) , or B87 Rearview Camera X1 (UVB) , or B87 Rearview Camera X2 (DRZ) | 8 |
| E5H Tail Lamp - Right Inner E5H Tail Lamp - Right Inner | 9 |
| B70 Liftgate Close Switch (TB5 or TC2) B70 Liftgate Close Switch | 10 |
| E33 Cargo Lamp E33 Cargo Lamp | 11 |
