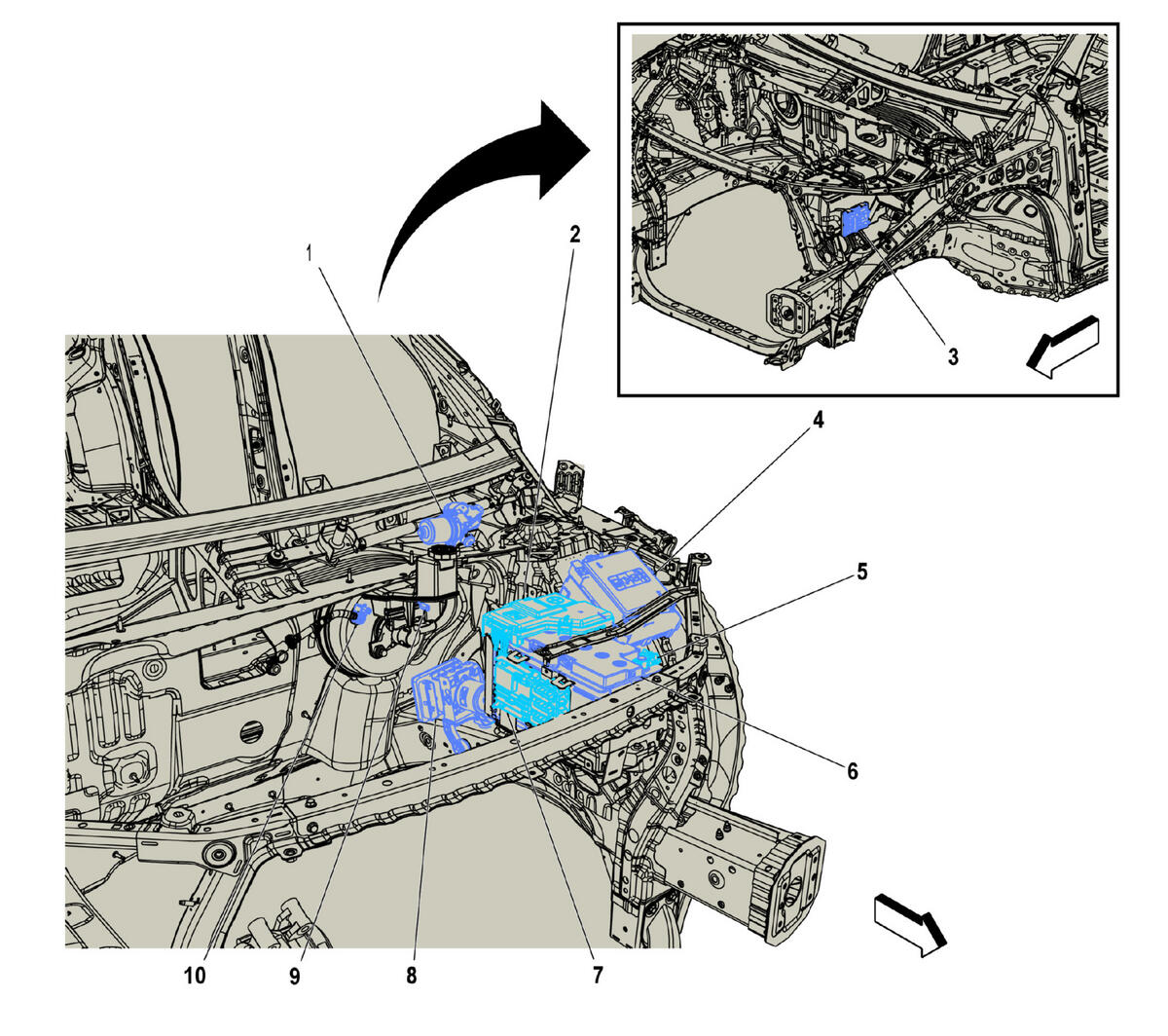

Left Side of Engine Compartment Components
 Courtesy of GENERAL MOTORS COMPANY
|
Left Side of Engine Compartment Components
| Component Name |
Callout |
| M75 Windshield Wiper Motor M75 Windshield Wiper Motor |
1 |
| X50D Fuse Block - Battery X50D Fuse Block - Battery X1
, or X50D Fuse Block - Battery X10
, or X50D Fuse Block - Battery X2
, or X50D Fuse Block - Battery X3
, or X50D Fuse Block - Battery X4
, or X50D Fuse Block - Battery X5
, or X50D Fuse Block - Battery X6
, or X50D Fuse Block - Battery X7
, or X50D Fuse Block - Battery X8 |
2 |
| K71 Transmission Control Module K71 Transmission Control Module |
3 |
| X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1
, or X50A Fuse Block - Underhood X2
, or X50A Fuse Block - Underhood X3
, or X50A Fuse Block - Underhood X4
, or X50A Fuse Block - Underhood X5 |
4 |
| B110 Battery Sensor Module B110 Battery Sensor Module X1
, or B110 Battery Sensor Module X2 |
5 |
| C1 Battery |
6 |
| K20 Engine Control Module K20 Engine Control Module X1
, or K20 Engine Control Module X2
, or K20 Engine Control Module X3 |
7 |
| K17 Electronic Brake Control Module K17 Electronic Brake Control Module |
8 |
| B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
9 |
| B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor |
10 |
