Left Side of Transmission Components

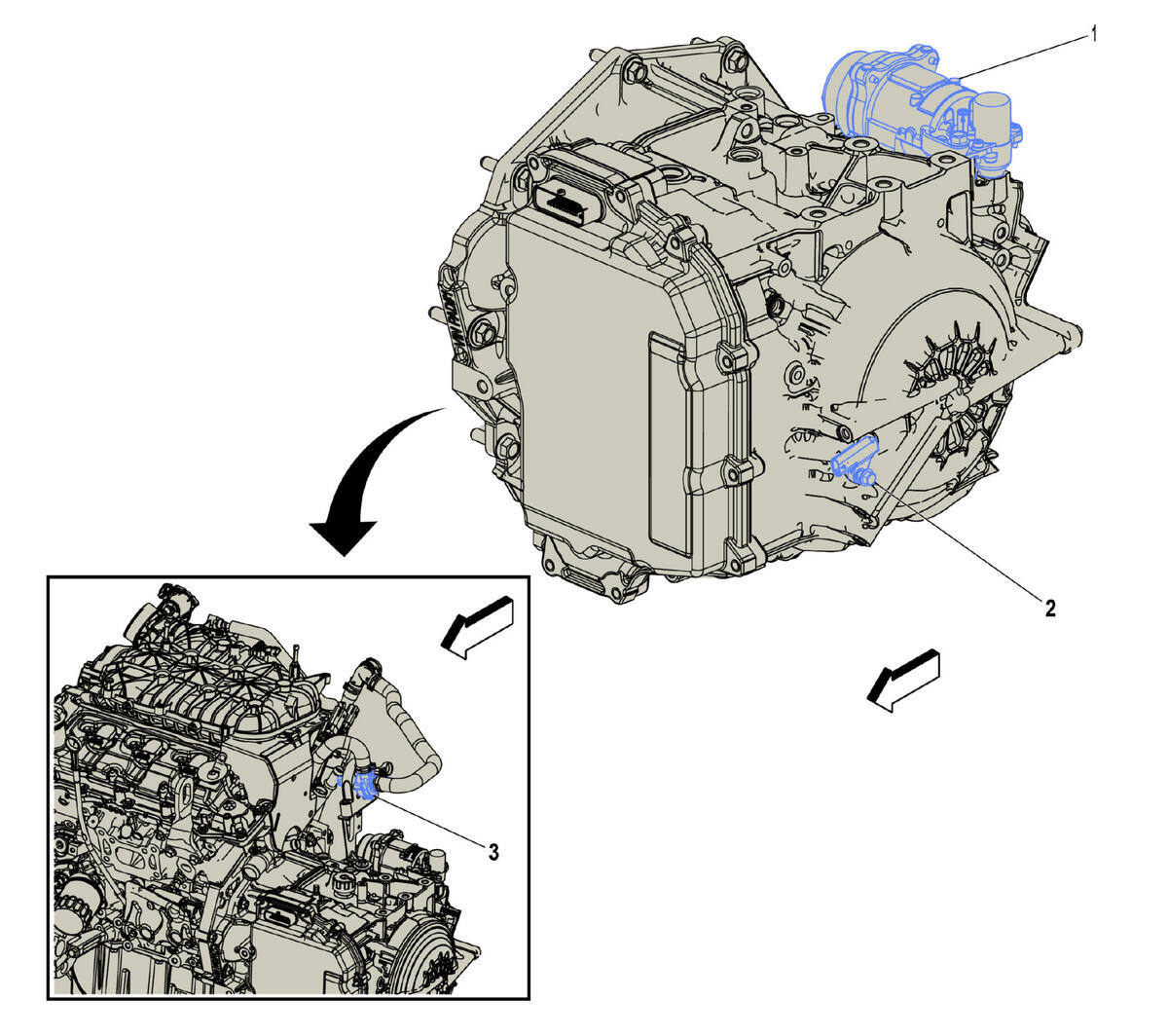

GM5701895Courtesy of GENERAL MOTORS COMPANY
Left Side of Transmission Components

Component Name Callout
B280 Automatic Transmission Accumulator Solenoid Valve B280 Automatic Transmission Accumulator Solenoid Valve 1
B14C Transmission Input Shaft Speed Sensor 2
G36 Auxiliary Heater Coolant Pump (C32) G36 Auxiliary Heater Coolant Pump 3
