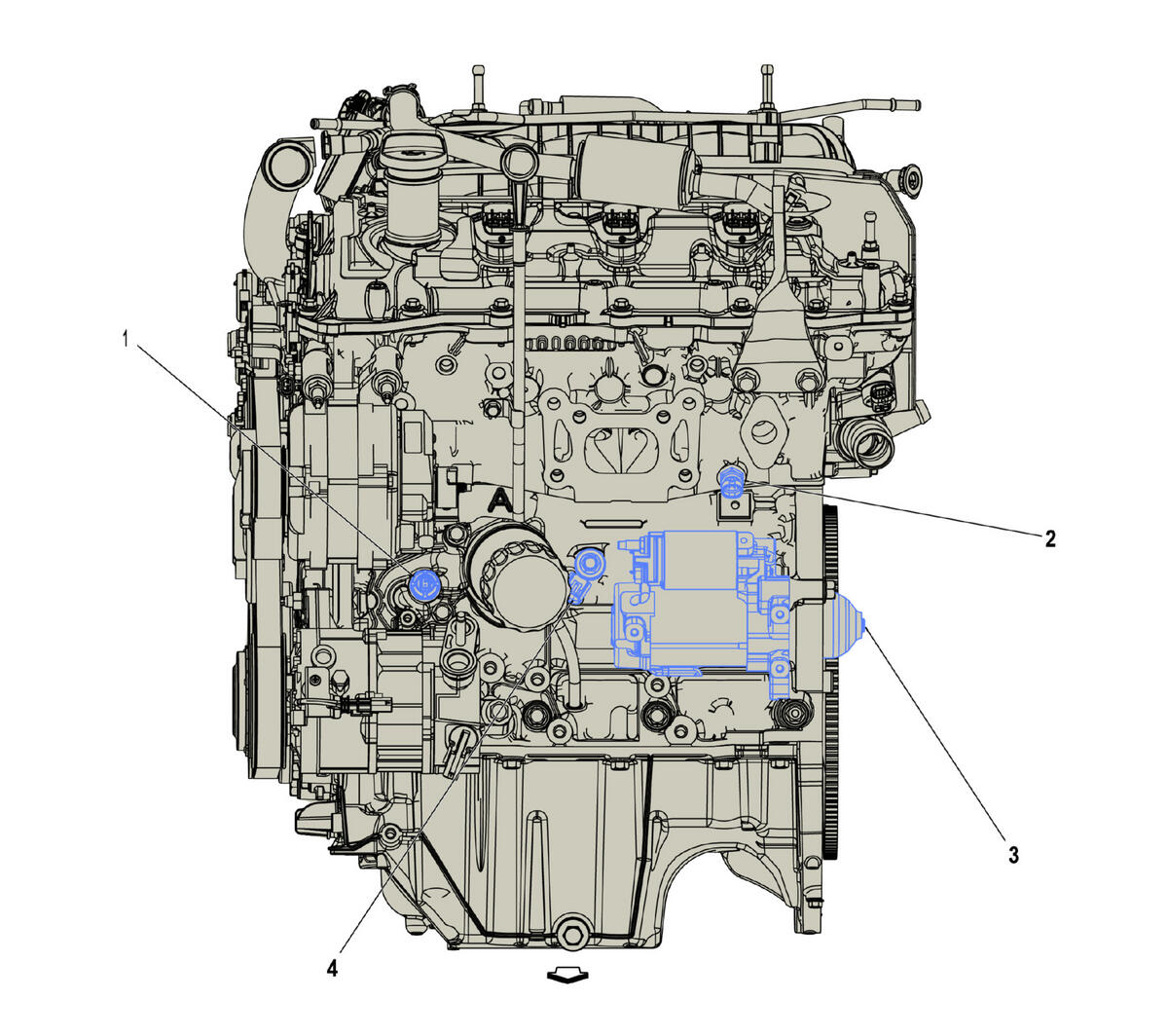

Lower Front of Engine Components
Lower Front of Engine Components
| Component Name | Callout |
|---|---|
| B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch | 1 |
| B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor | 2 |
| M64 Starter Motor M64 Starter Motor X1 , or M64 Starter Motor X2 | 3 |
| B68B Knock Sensor 2 B68B Knock Sensor 2 | 4 |
