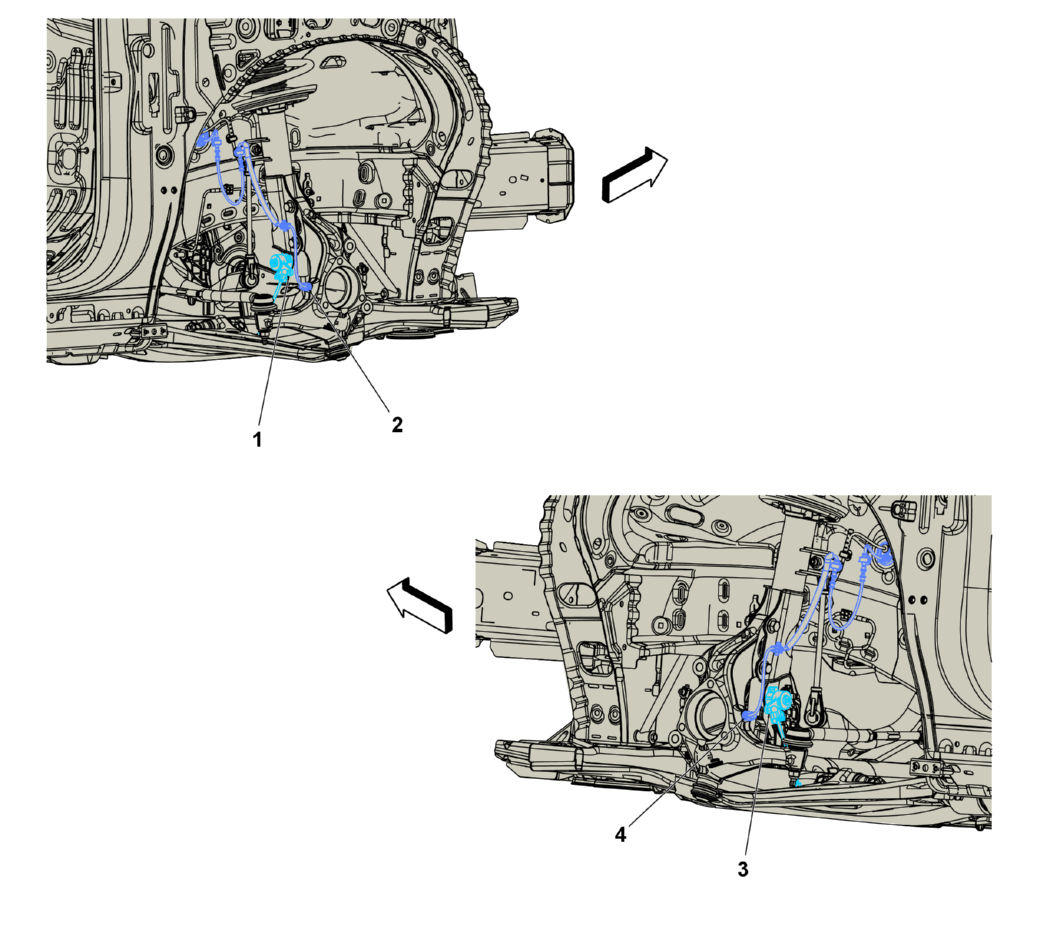

Front Wheelwell Components

GM5701921Courtesy of GENERAL MOTORS COMPANY
Front Wheelwell Components

Component Name Callout
B161RF Vertical Suspension Acceleration Sensor - Right Front 1
B5RF Wheel Speed Sensor - Right Front B5RF Wheel Speed Sensor - Right Front (J61) 2
B161LF Vertical Suspension Acceleration Sensor - Left Front 3
B5LF Wheel Speed Sensor - Left Front B5LF Wheel Speed Sensor - Left Front (J61) 4
