Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

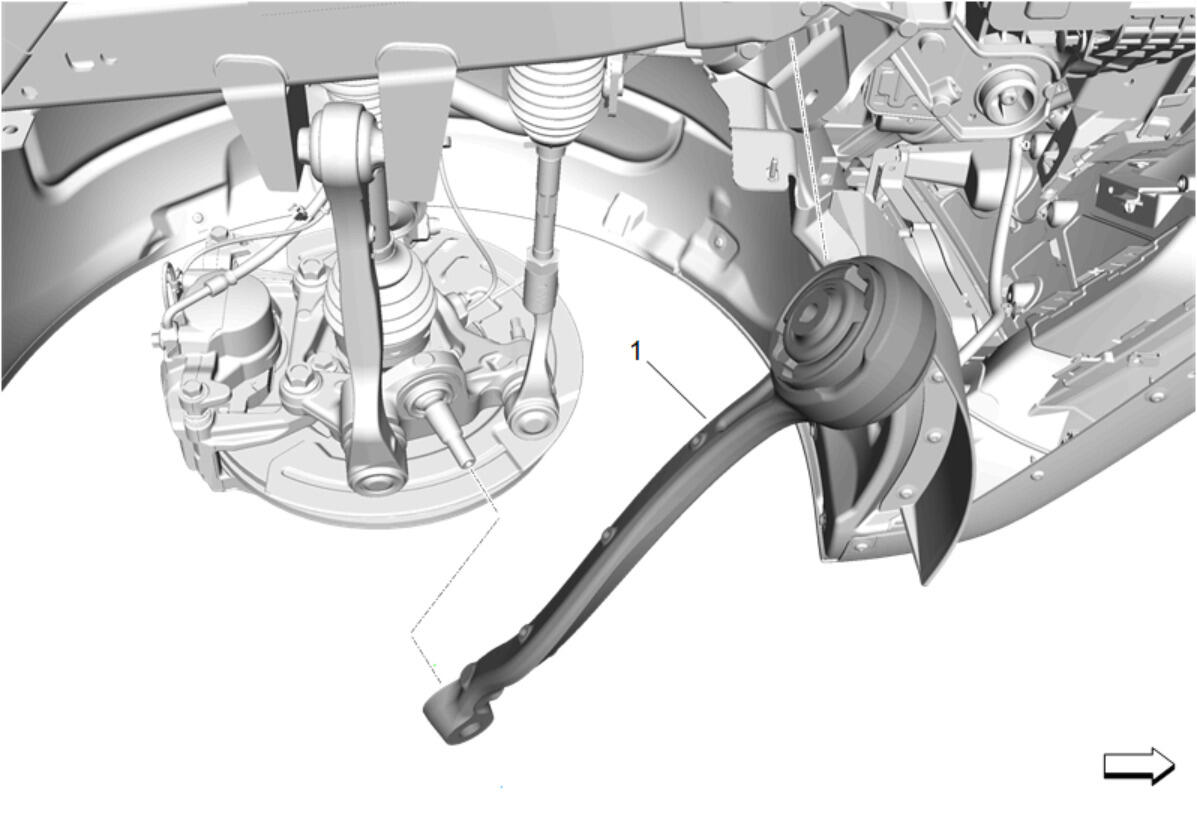

Front Lower Control Front Link (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

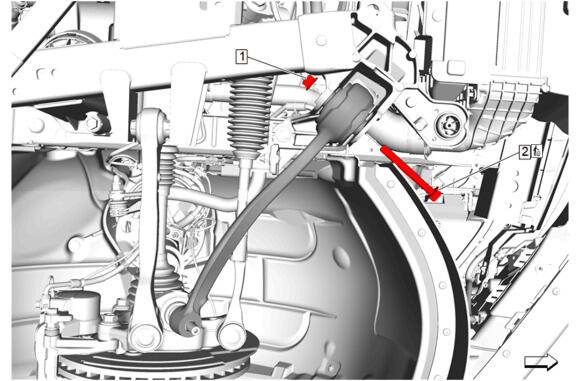

Front Lower Control Arm Front Bolt (2) - Install NEW
Front Lower Control Arm Front Nut (1) - Install

CAUTION:

Refer to Fastener Caution .

Front Lower Control Arm Front Bolt (2) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:

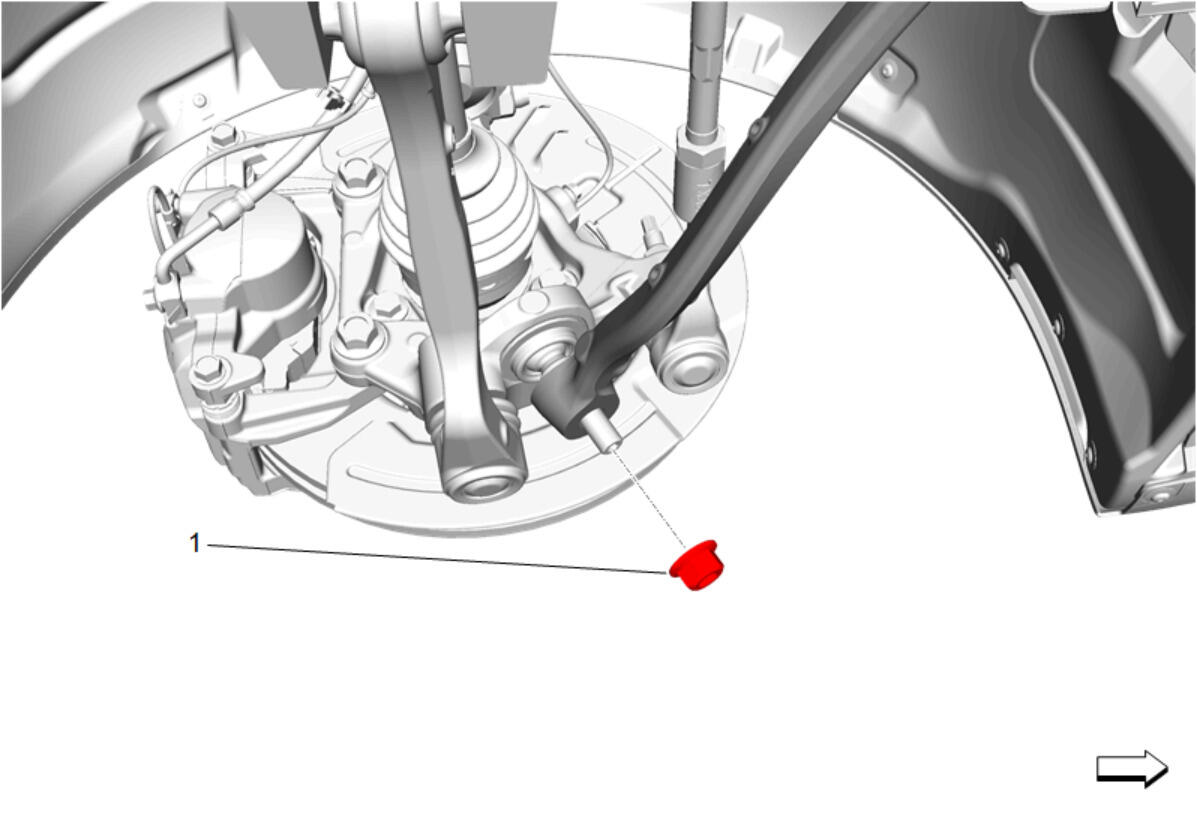

Do NOT allow the ball stud to rotate while tightening the nut.

Front Lower Control Arm Ball Stud Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

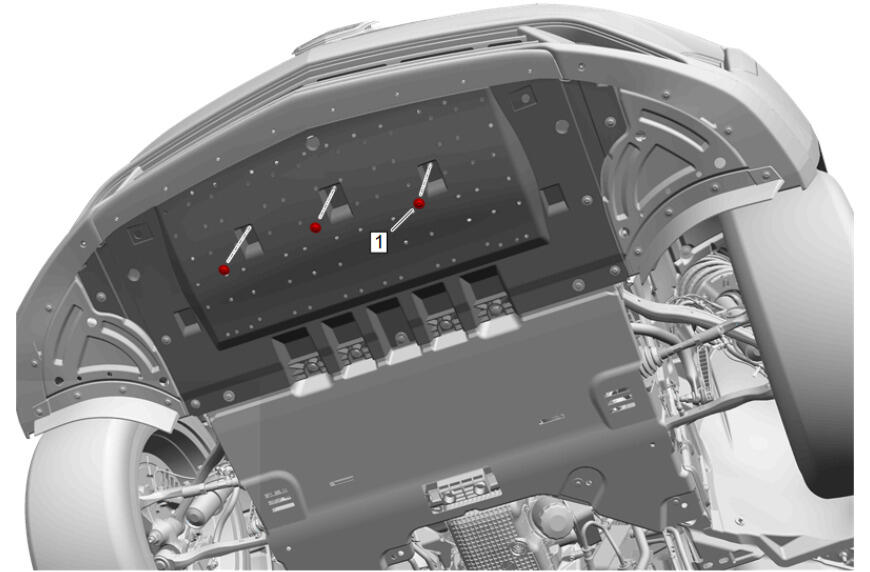

Front Compartment Air Deflector - (1)Install
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Air Deflector Bolt (1) - Install and tighten [6x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

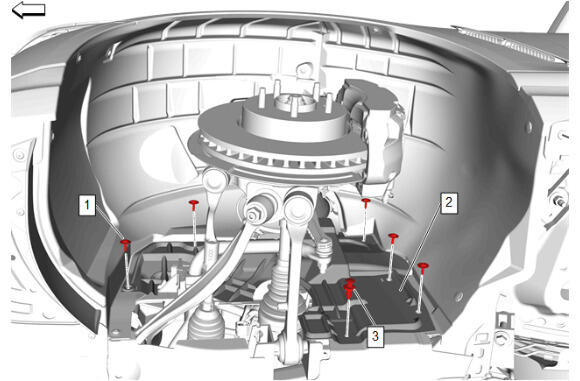

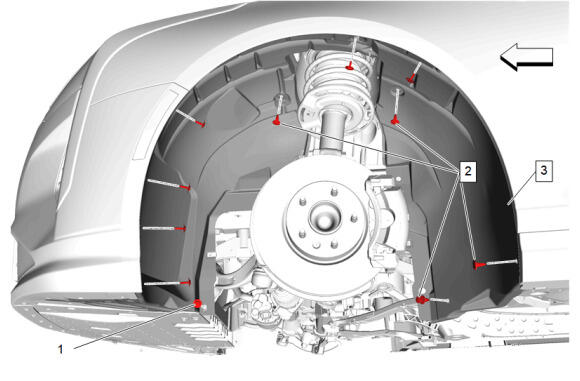

Front Wheelhouse Liner Bolt (3) - Install and tighten - Fastener Specifications

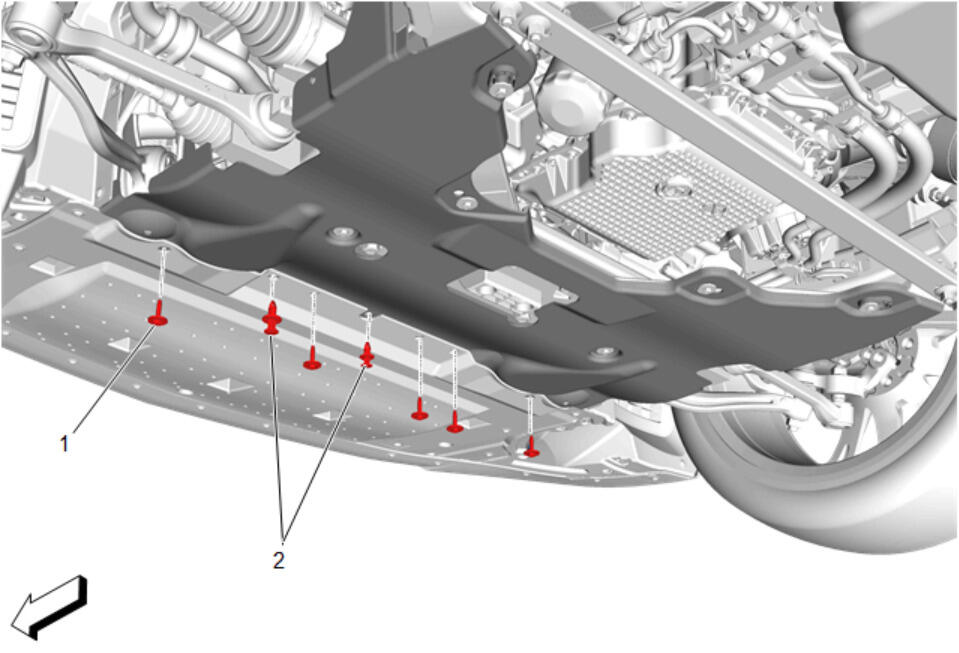

Engine Front Splash Shield Retainer (2) - Install and tighten
Engine Front Splash Shield Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

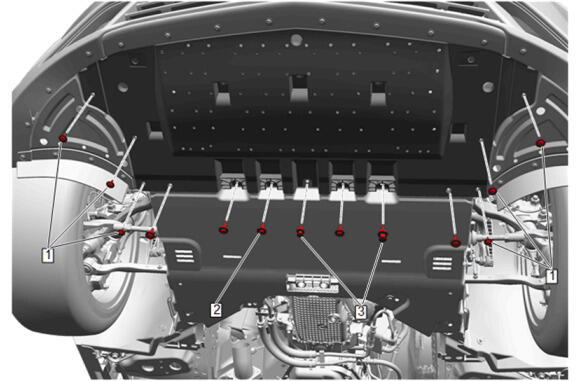

Front Bumper Fascia Center Air Deflector Bolt (1) - Install and tighten [5x] - Fastener Specifications
Front Bumper Fascia Center Air Deflector Retainer (2) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

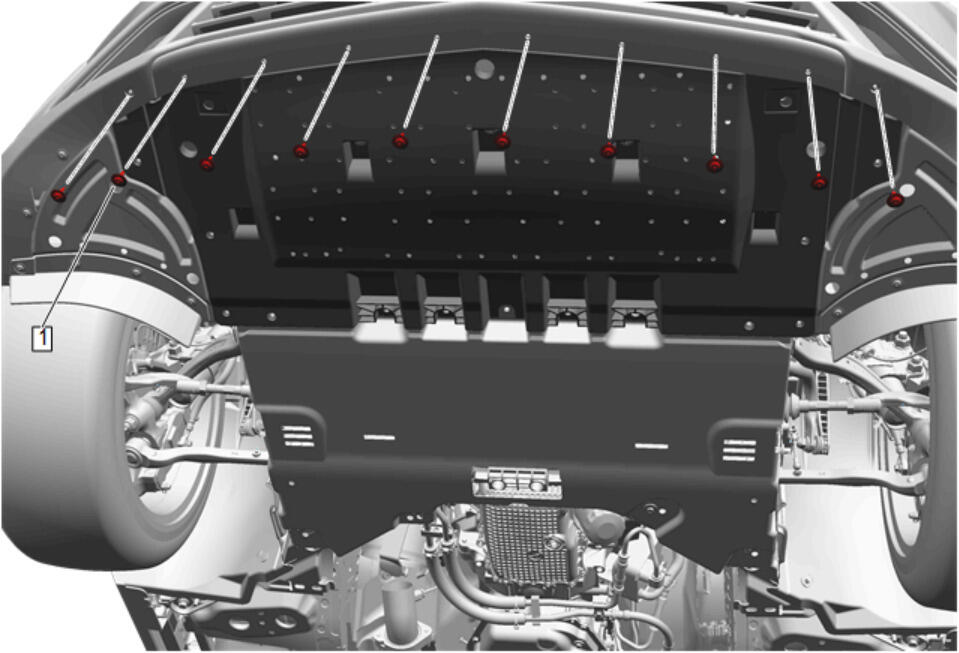

Front Wheelhouse Liner (3) - Install
Front Wheelhouse Liner Retainer (2) - Install [4x]
Front Wheelhouse Liner Bolt (1) - Install and tighten [7x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

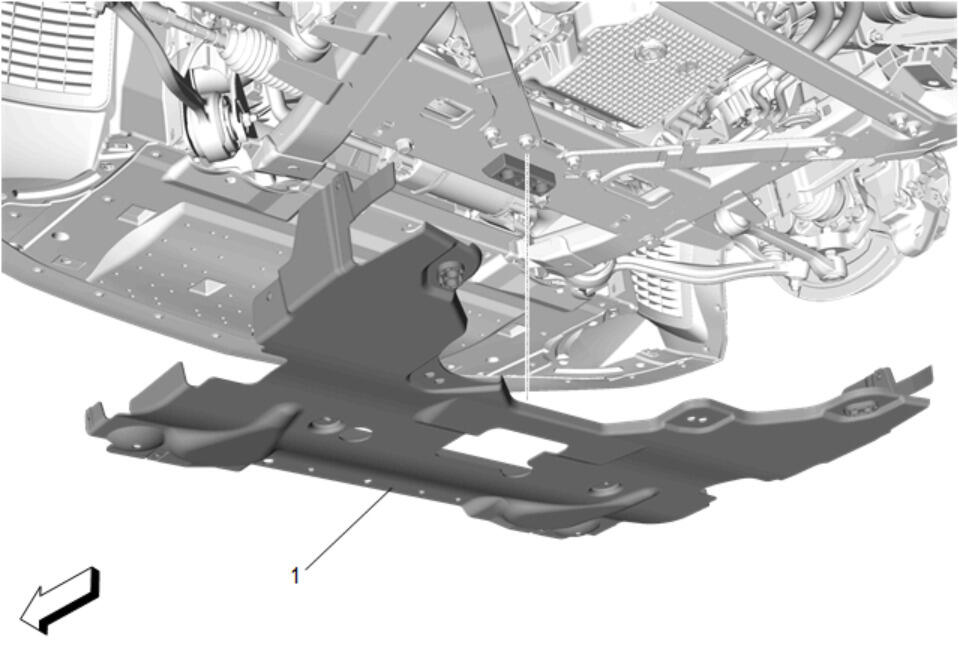

Engine Front Splash Shield (2) - Install
Engine Front Splash Shield Bolt (1) - Install and tighten [5x] - Fastener Specifications
Engine Front Splash Shield Retainer (3) - Install
Courtesy of GENERAL MOTORS COMPANY

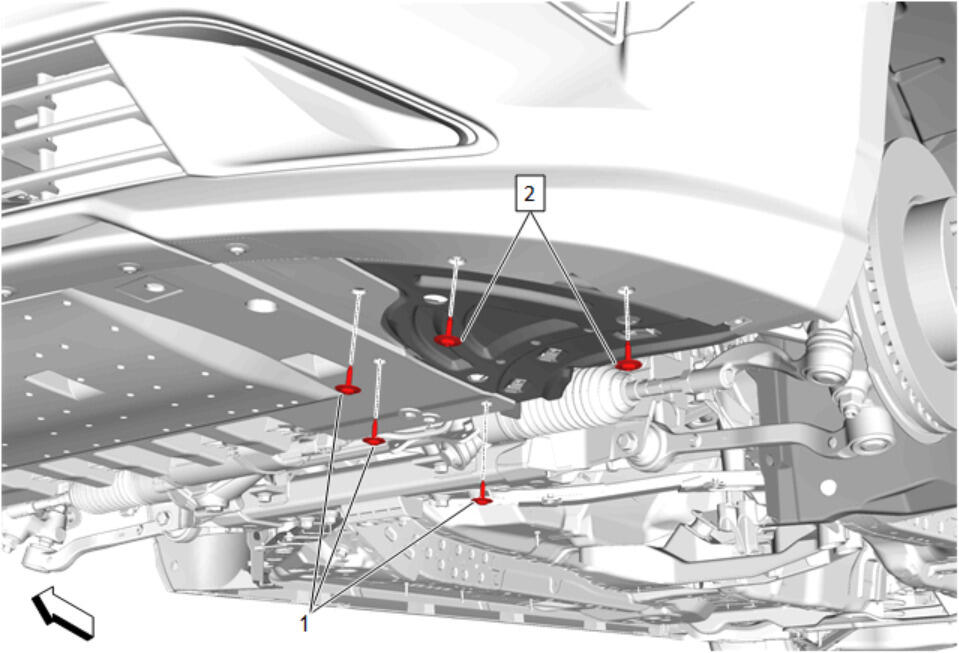

Front Bumper Fascia Air Deflector Bolt (1) - Install and tighten [3x] - Fastener Specifications
Front Bumper Fascia Bolt (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

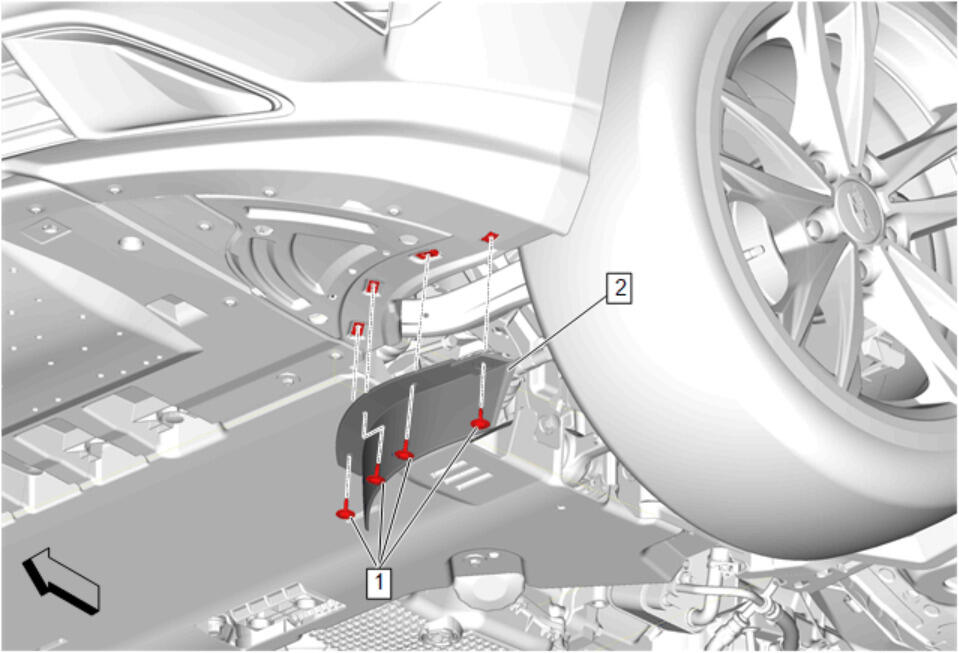

Front Tire Front Air Deflector (2) - Install
Front Tire Front Air Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

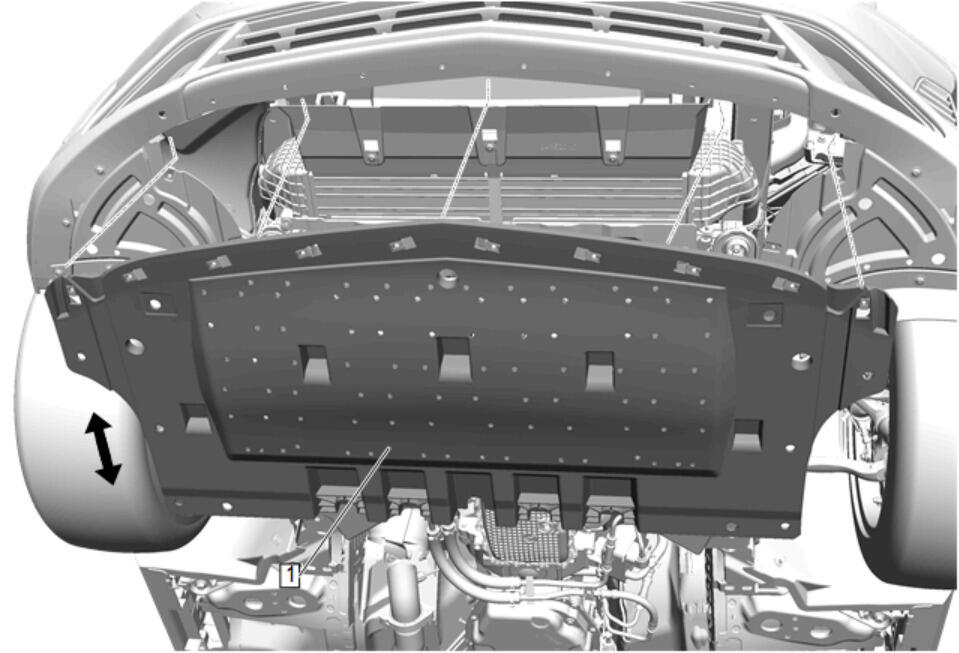

Front Bumper Fascia Center Air Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Center Air Deflector Retainer (3) - Install [2x]
Front Bumper Fascia Center Air Deflector Bolt (2) - Install and tighten [5x] Fastener Specifications
Front Bumper Fascia Center Air Deflector Screw (1) - Install and tighten [6x] Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

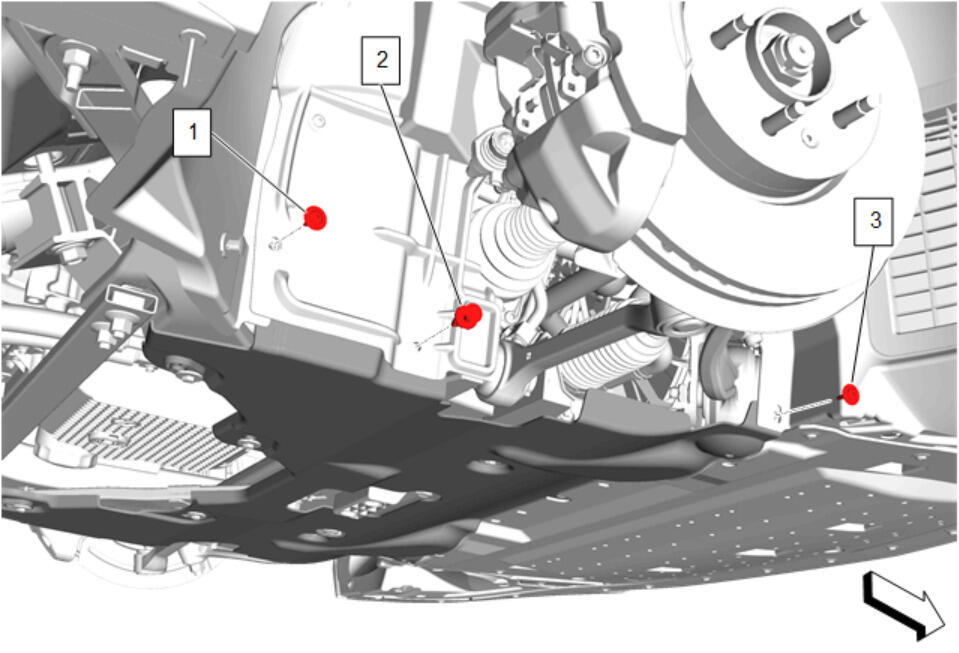

Front Bumper Fascia Center Air Deflector Screws (1) - Install and tighten [3x] Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Center Air Deflector Screws (1) - Install and tighten [10x] Fastener Specifications .
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
