Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

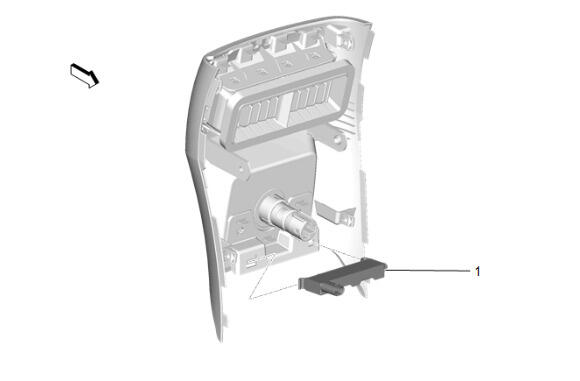

Low Frequency Console Antenna (1) - Install
Connect all electrical connectors.

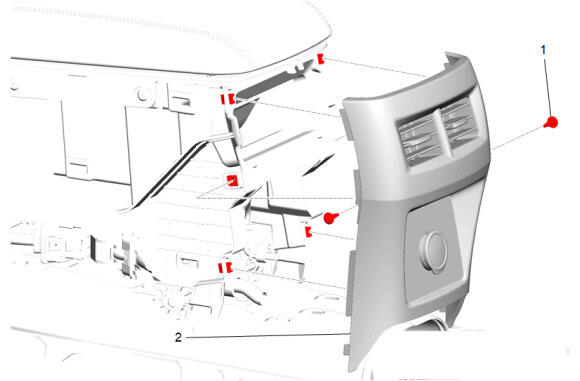

- Front Floor Console Rear Trim Panel (2) - Install
- Front Floor Console Rear Cover Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

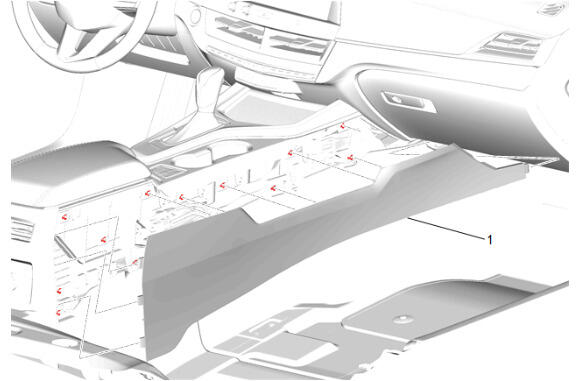

Front Floor Console Extension Panel - Left Side (1) - Install
- Return the seat to its original position.

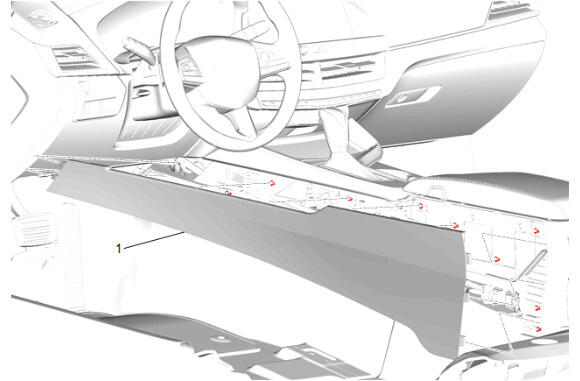

Front Floor Console Extension Panel - Right Side (1) - Install
- Return the seat to its original position.
CAUTION:
Refer to Fastener Caution .
