Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Engage the retaining tabs.

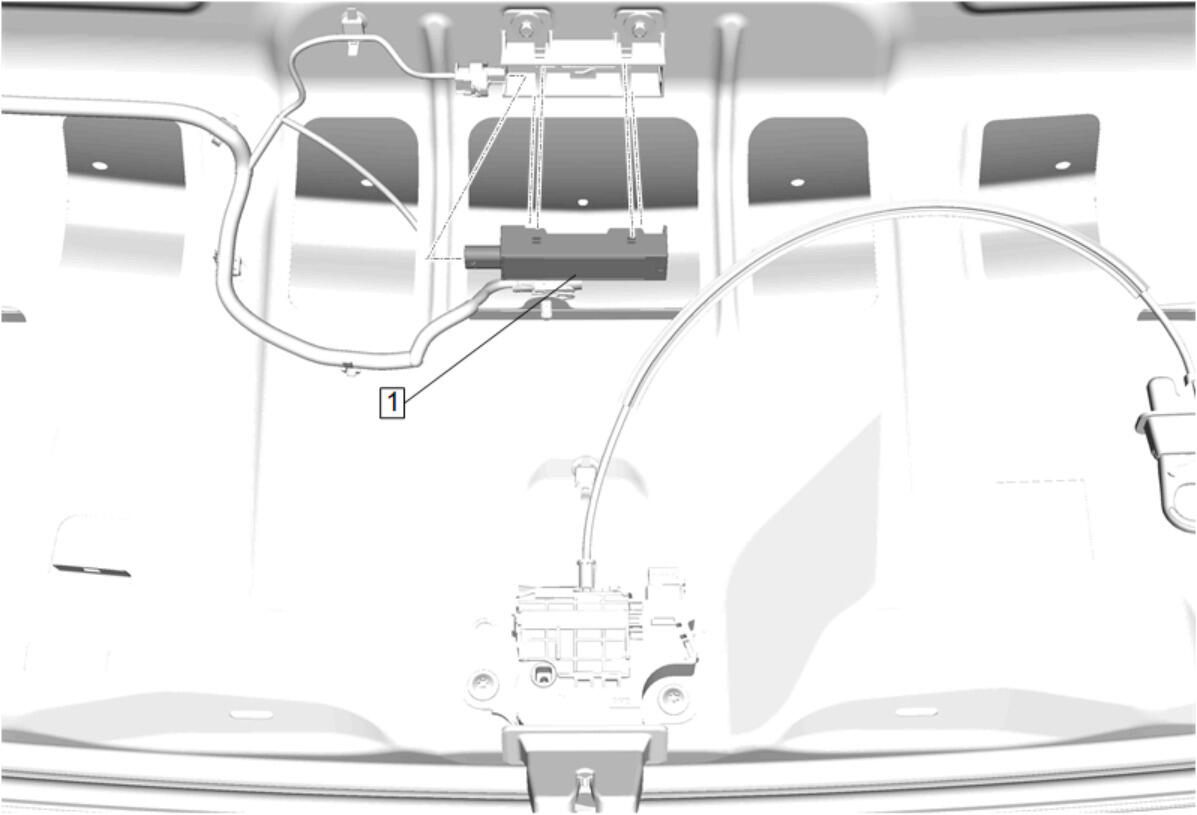

Low Frequency Rear Compartment Antenna (1) - Install
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the auxiliary rear compartment latch release handle is routed through the rear compartment lid inner panel trim.

Rear Compartment Lid Inner Panel Trim (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Lid Hinge Cover (1) - Reposition [ 2x ]
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Lid Latch Cover (1) - Install
