Removal Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to SIR Warning .
- Disable the SIR system. SIR Disabling and Enabling
- NOTE:
Left side shown, right side similar.
Fold the rear seat back to the downward position.

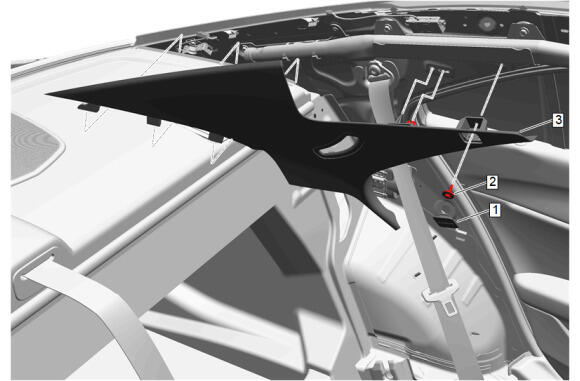

- Use a flat bladed plastic trim tool to remove the quarter window trim finish panel bolt cap (1) on the right side.
- Quarter Window Trim Finish Panel Bolt- Right Side (2) - Remove
- Disengage the retainers, starting at the front and working rearward.
- Quarter Upper Trim Panel- Right Side (3) - Reposition
Using a suitable plastic trim tool, release the retaining tabs.
- Disconnect the electrical connector.

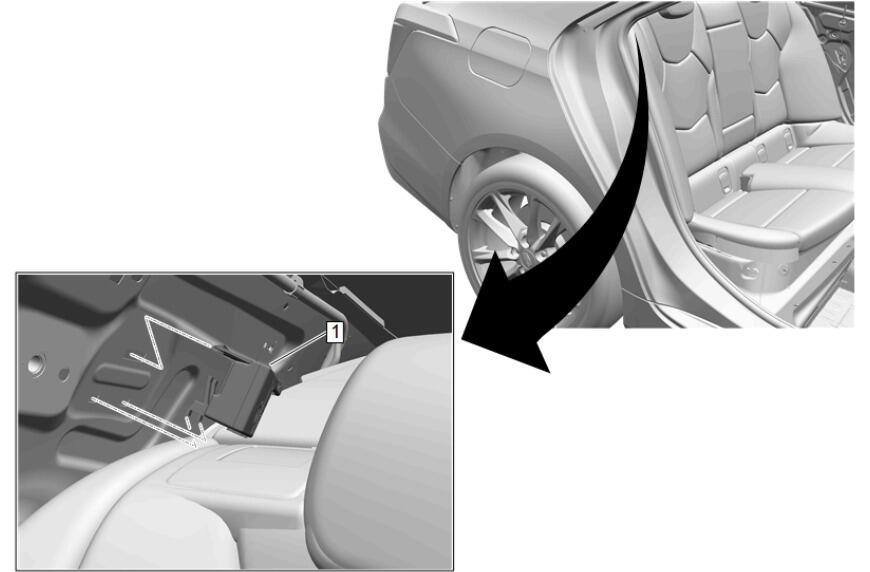

- Remote Function Actuator Module (1) - Remove
NOTE:
The Quarter Upper Trim Panel does not need to be fully removed from the vehicle.
