Restraints Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

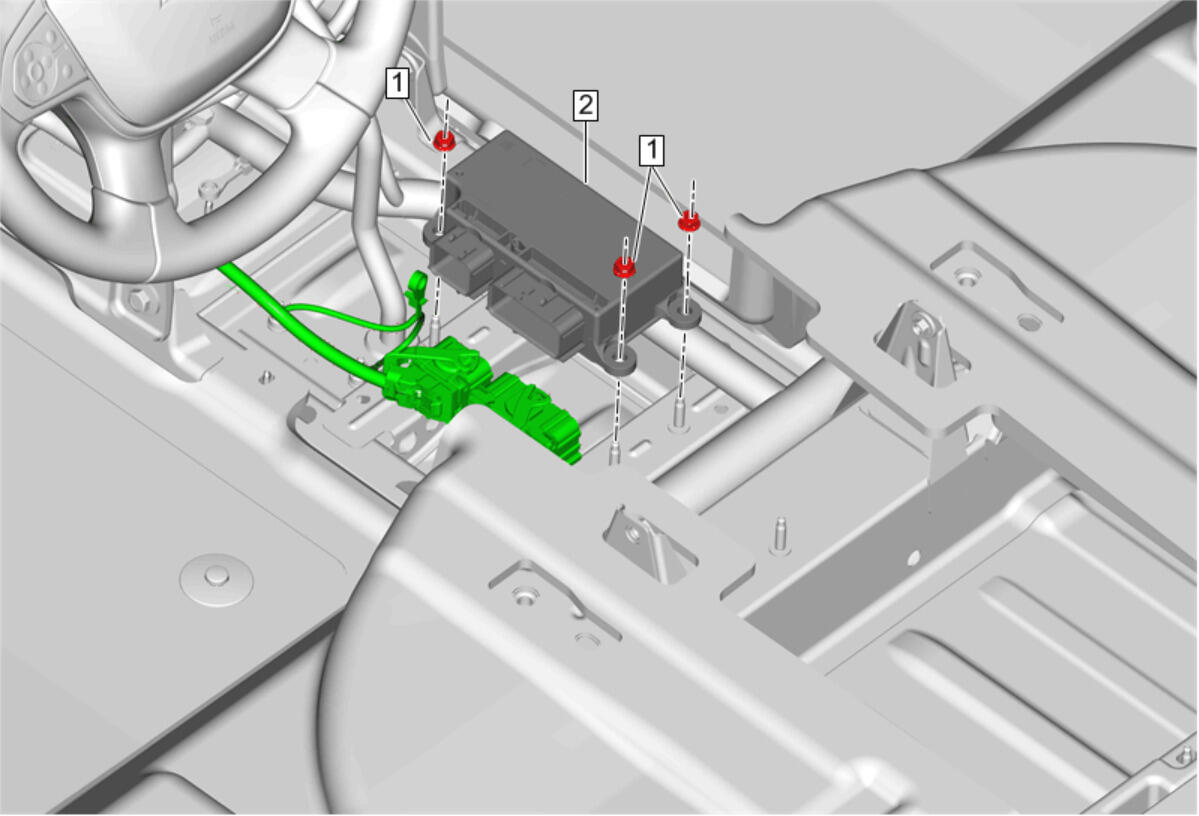

Callout	Component Name
WARNING: Do not strike or jolt the Restraints Control Module (RCM). Before applying power to the RCM, make sure that it is securely fastened. Failure to observe the correct installation procedure could cause Supplemental Inflatable Restraint (SIR) deployment, personal injury, or unnecessary SIR system repairs. WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Floor Rear Air Outlet Duct Replacement - Left Side Floor Rear Air Outlet Duct Replacement - Right Side
1	Airbag Sensing and Diagnostic Module Nut [ 3x ] CAUTION: Refer to Fastener Caution . Procedure Move the tie strap to the side to access one of the nuts. Tighten 9 N.m (80 lb in)
2	Restraints Control Module Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

WARNING:

Do not strike or jolt the Restraints Control Module (RCM). Before applying power to the RCM, make sure that it is securely fastened. Failure to observe the correct installation procedure could cause Supplemental Inflatable Restraint (SIR) deployment, personal injury, or unnecessary SIR system repairs.

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. SIR Disabling and Enabling
Floor Rear Air Outlet Duct Replacement - Left Side
Floor Rear Air Outlet Duct Replacement - Right Side

Airbag Sensing and Diagnostic Module Nut [ 3x ]

CAUTION:

Refer to Fastener Caution .

Procedure
Move the tie strap to the side to access one of the nuts.
Tighten
9 N.m (80 lb in)

Restraints Control Module

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
Enable the SIR System. SIR Disabling and Enabling
