Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

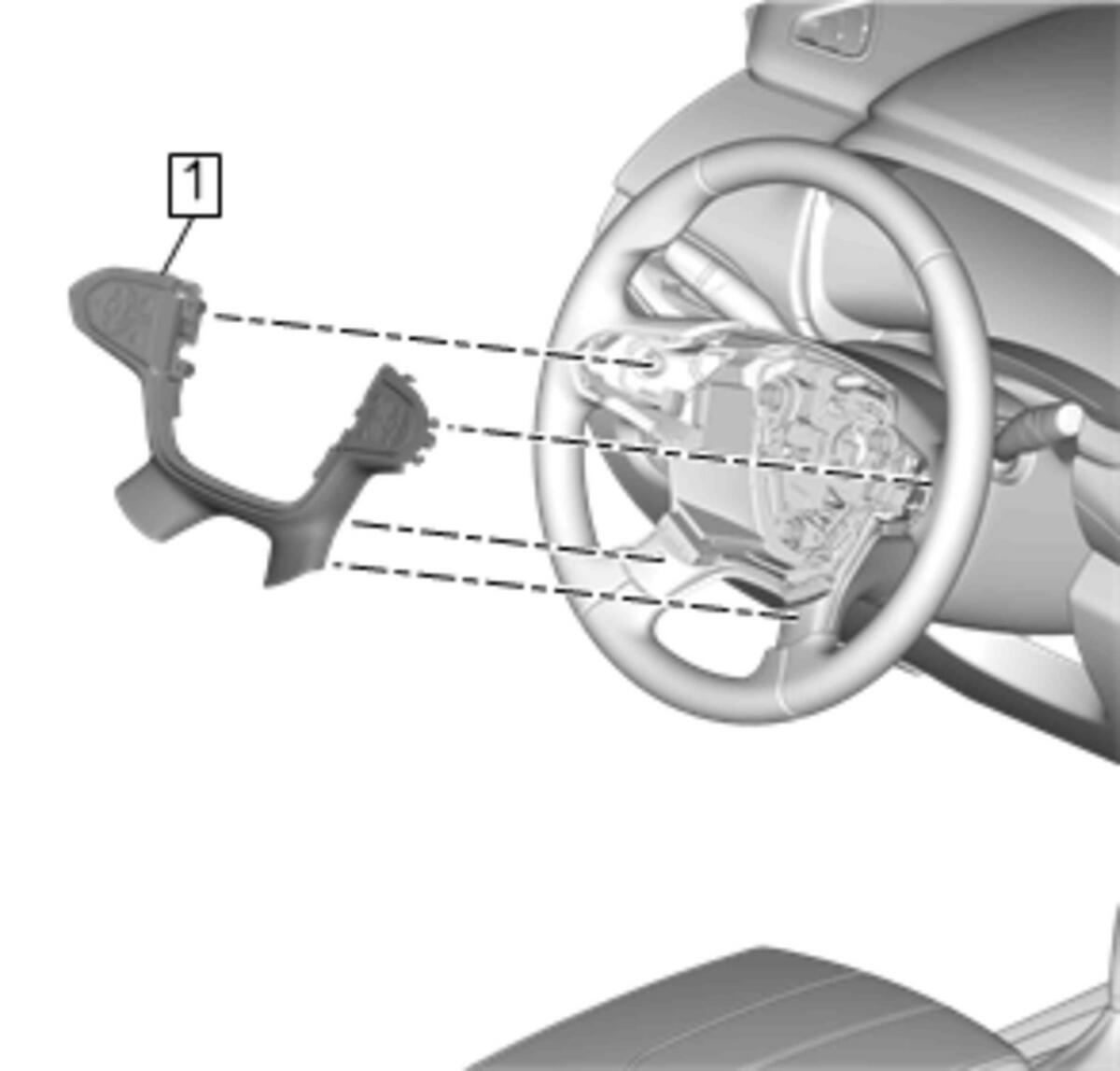

Perform the following steps to install the steering wheel spoke cover (1):

1. Connect the electrical connectors.
2. Secure the steering wheel spoke cover, cruise control switch, and radio control switch to the steering wheel.

Courtesy of GENERAL MOTORS COMPANY

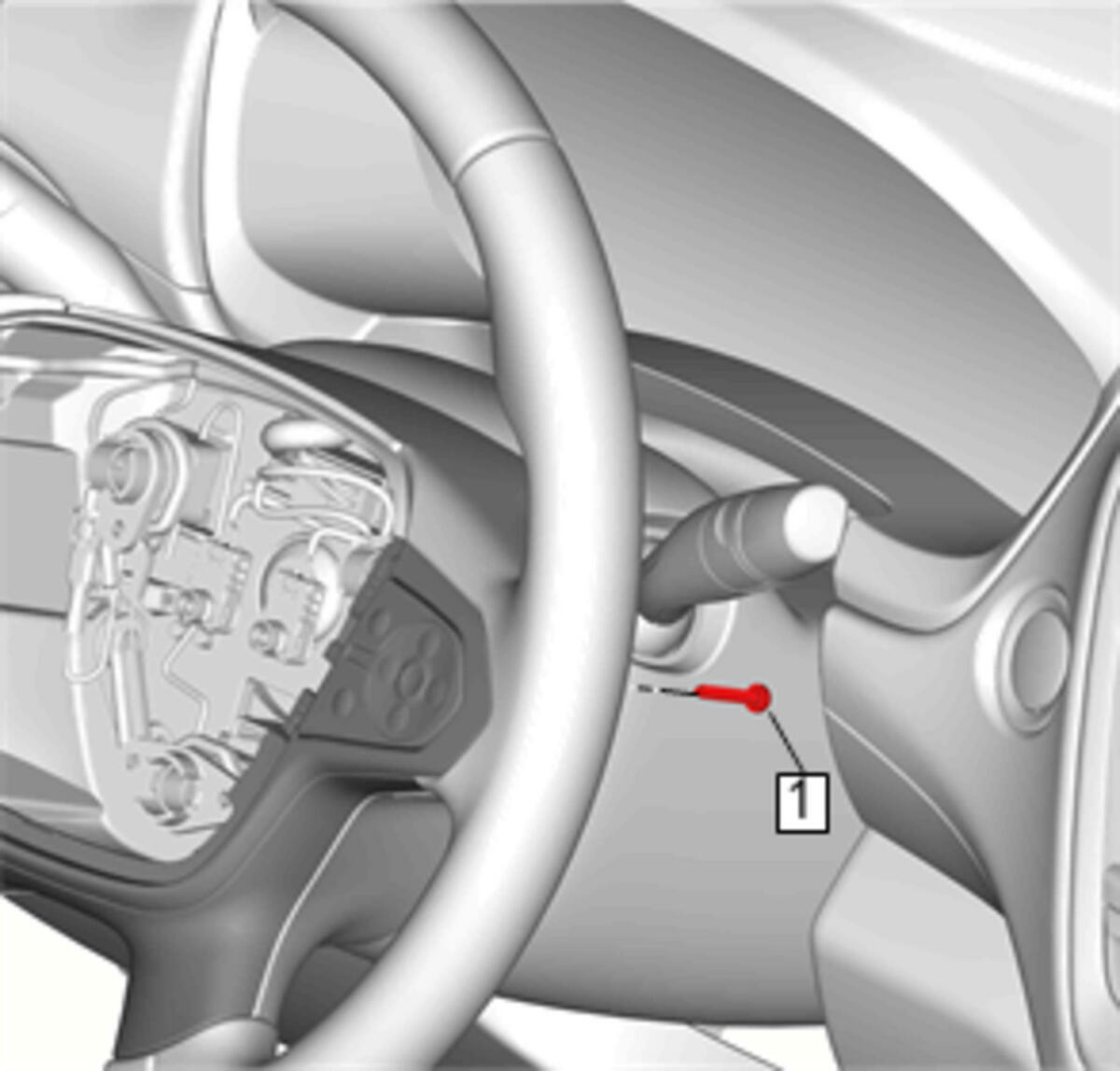

Steering Wheel Spoke Cover Fastener-Right Rear (1) - Install and tighten 2.5 N.m (22 lb in)

Courtesy of GENERAL MOTORS COMPANY

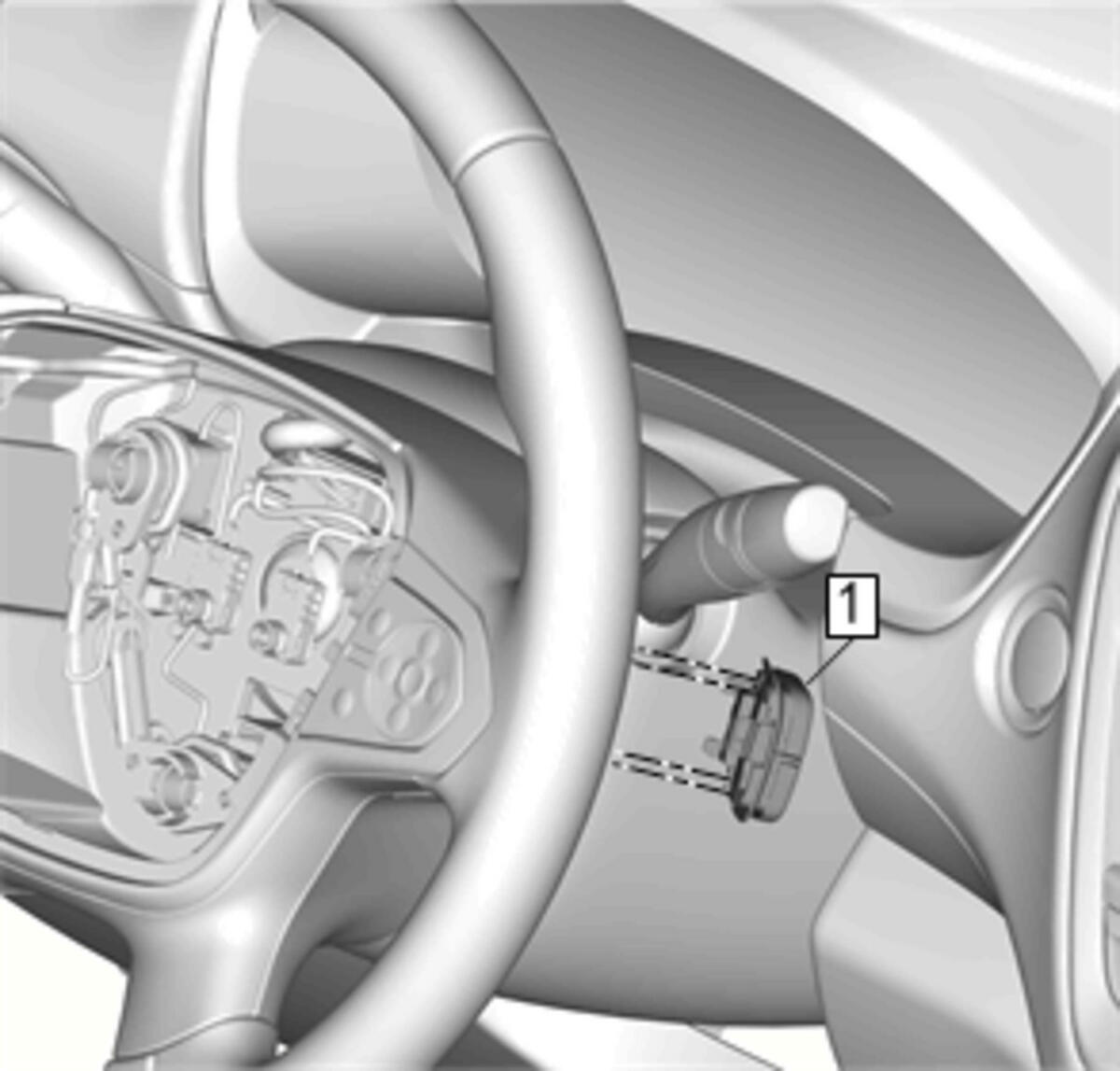

Radio Control Switch - Steering Wheel-Right Rear (1) - Install - Radio Control Switch Replacement - Steering Wheel (Right Rear) , or Radio Control Switch Replacement - Steering Wheel (Left Rear) , or Radio Control Switch Replacement - Steering Wheel (Right Front)

Courtesy of GENERAL MOTORS COMPANY

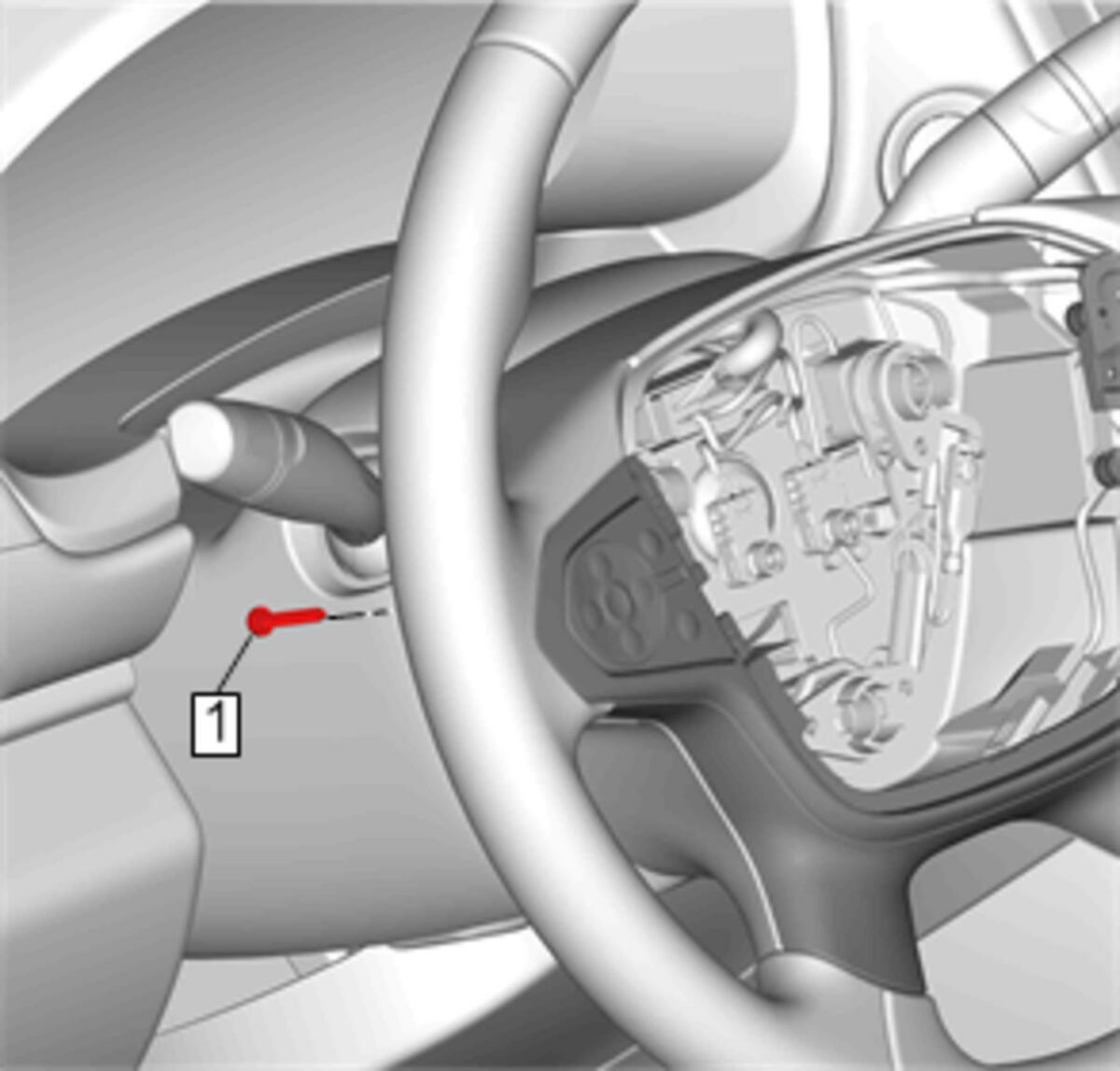

Steering Wheel Spoke Cover Fastener-Left Rear (1) - Install and tighten 2.5 N.m (22 lb in)

Courtesy of GENERAL MOTORS COMPANY

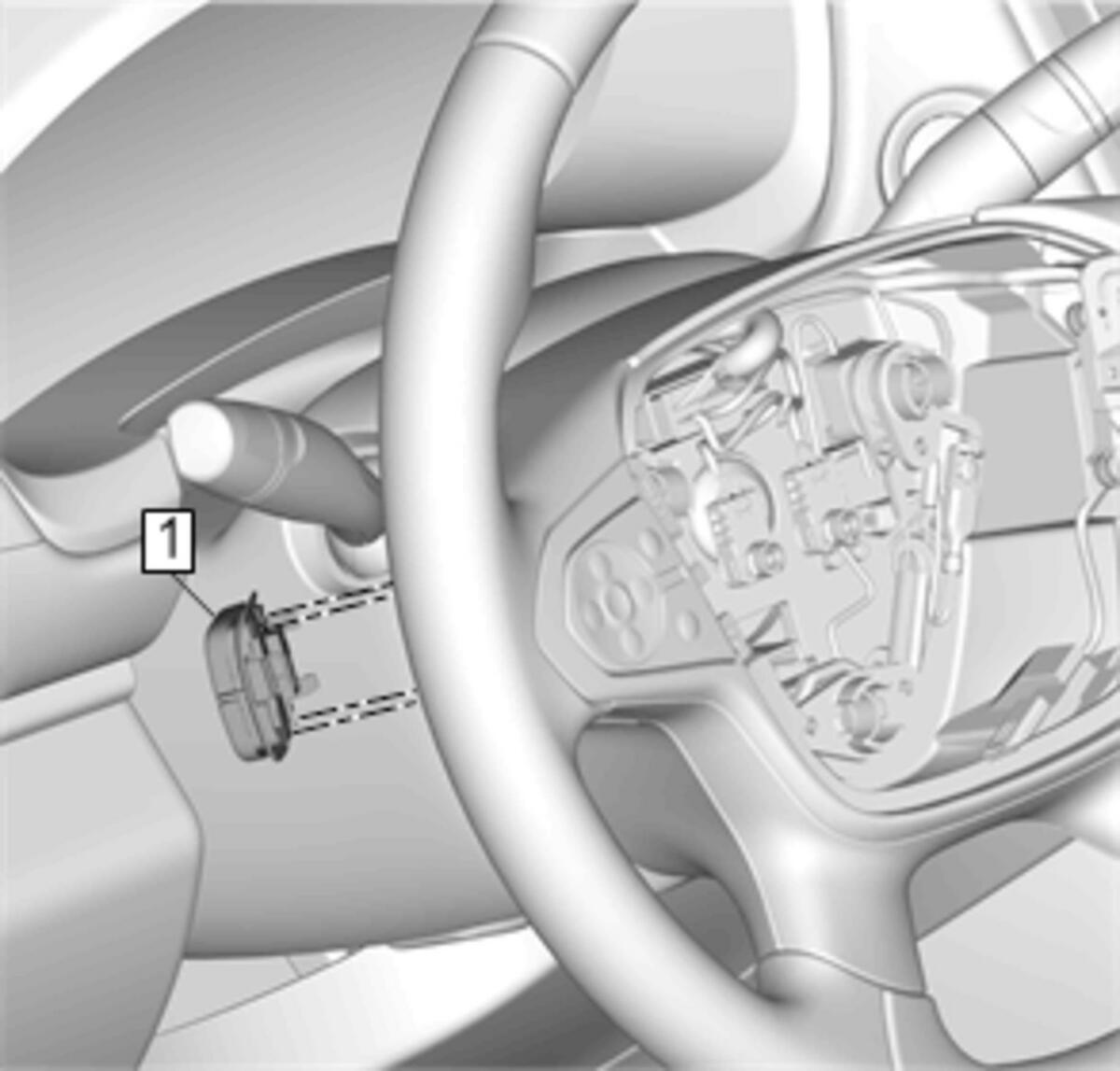

Radio Control Switch - Steering Wheel-Left Rear (1) - Install - Radio Control Switch Replacement - Steering Wheel (Right Rear) , or Radio Control Switch Replacement - Steering Wheel (Left Rear) , or Radio Control Switch Replacement - Steering Wheel (Right Front)

Courtesy of GENERAL MOTORS COMPANY

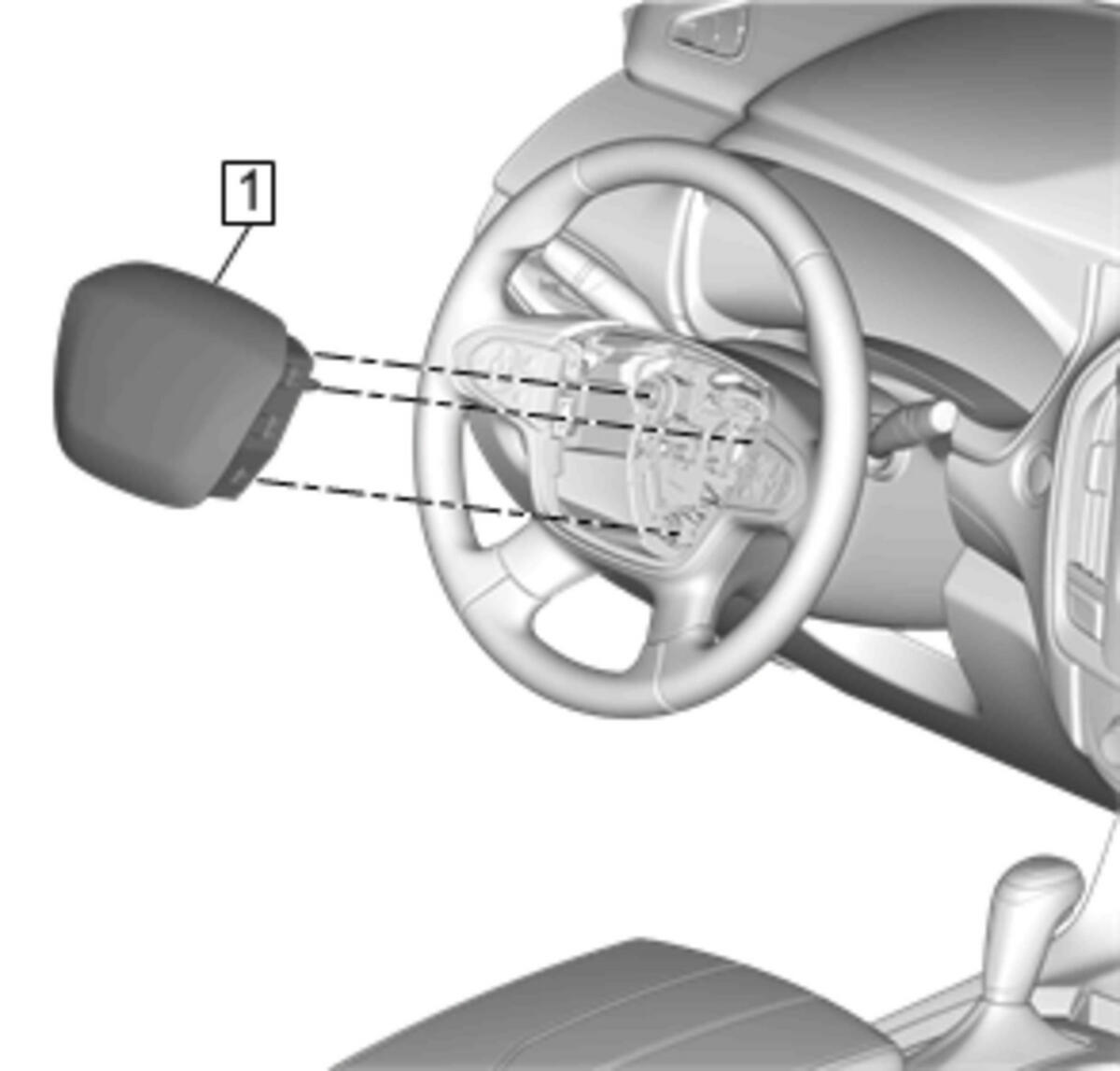

Steering Wheel Airbag (1) - Install- Steering Wheel Airbag Replacement
