Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

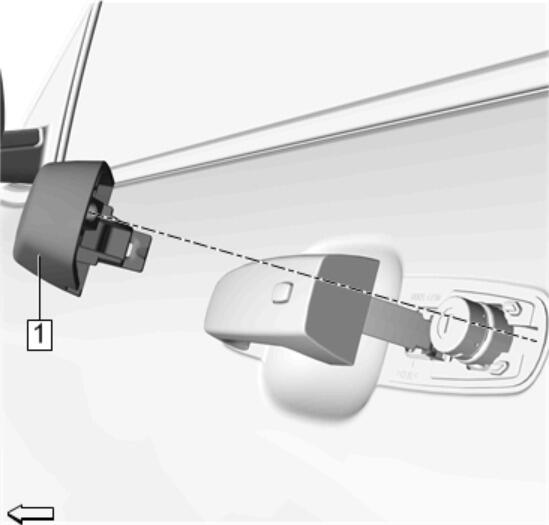

Install the front part of the front side door outside handle (1) into the front side door outside handle bracket.

Courtesy of GENERAL MOTORS COMPANY

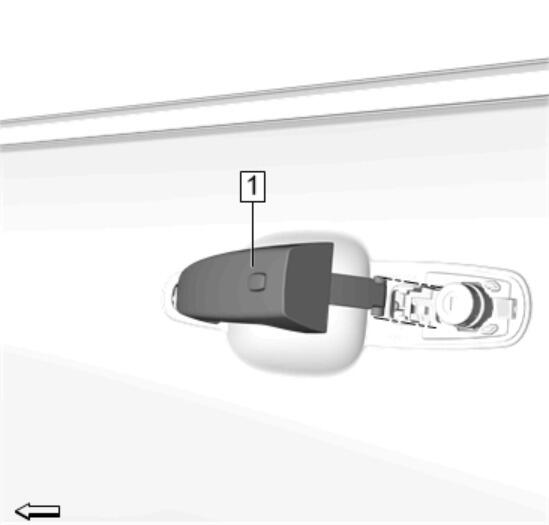

Install the rear part of the front side door outside handle (1) into the front side door outside handle bracket and slide the front side door outside handle forward.

Courtesy of GENERAL MOTORS COMPANY

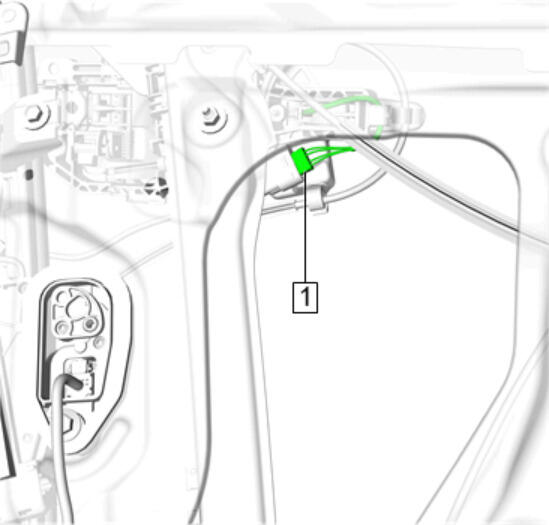

Connect the electrical connector.(1)

Courtesy of GENERAL MOTORS COMPANY

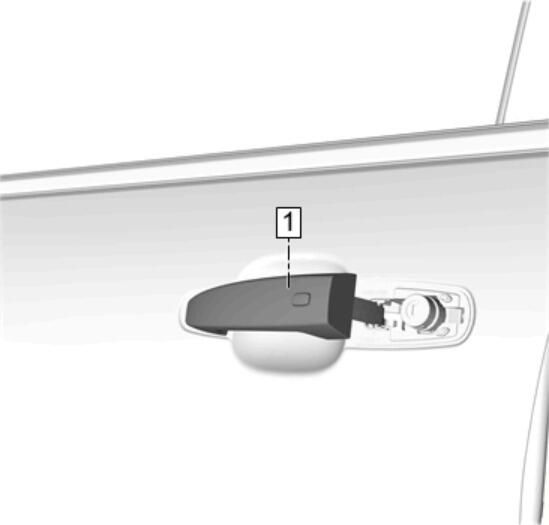

Pull the front side door outside handle (1) to the open position.

Courtesy of GENERAL MOTORS COMPANY

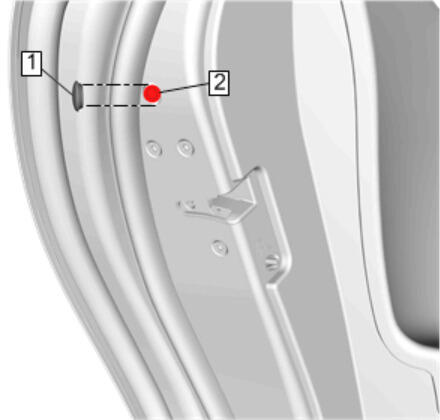

Front Side Door Lock Cylinder Opening Cover (1) - Install - Front Side Door Lock Cylinder Opening Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Cylinder Opening Cover Screw (2) - Tighten 4 N.m (31 lb in)
