Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

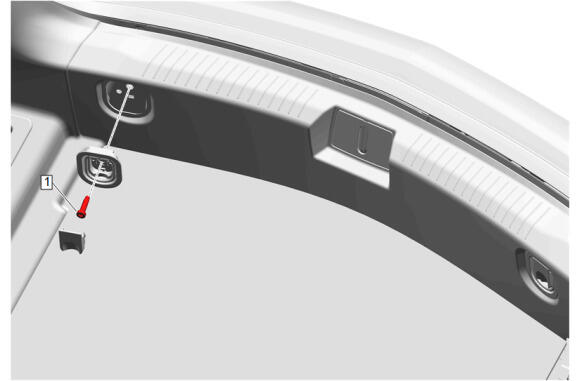

Cargo Tie Down Loop
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Cargo Tie Down Loop Bolt | - | - | 20 (15 lb ft) | Cargo Tie Down Loop Replacement |
Front Side Door Armrest Switch Mount Plate
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Side Door Trim Bolt | - | - | 2.5 (22 lb in) | Front Side Door Armrest Switch Mount Plate Replacement - Driver Side |
| Front Side Door Armrest Switch Mount Plate Replacement - Passenger Side |

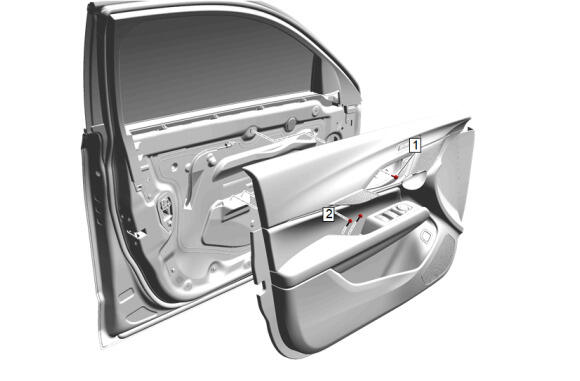

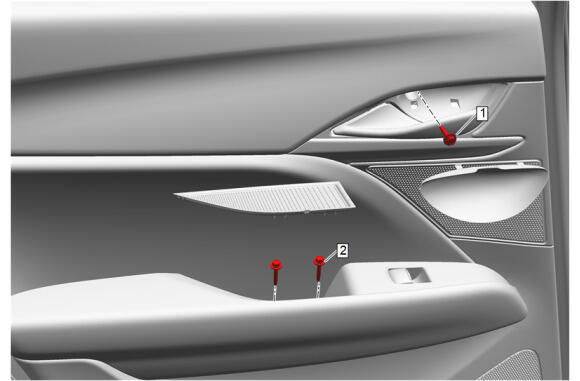

Front Side Door Trim
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Side Door Inside Handle Bolt | - | - | 2.5 (22 lb in) | Front Side Door Trim Removal and Installation |
| 2 | Front Side Door Armrest Pull Cup Bolt [ 2x ] | - | - | 2.5 (22 lb in) | Front Side Door Trim Removal and Installation |

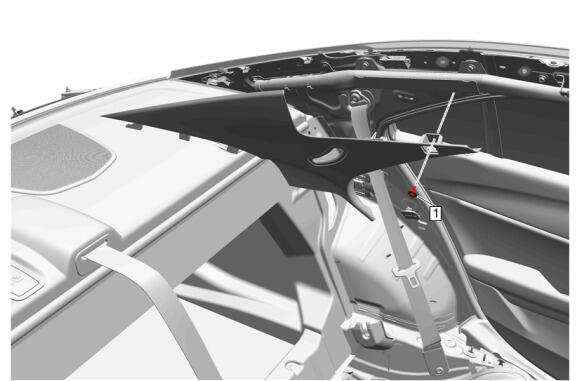

Quarter Upper Trim Panel
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Quarter Window Trim Finish Panel Bolt | - | - | 2.5 (22 lb in) | Quarter Upper Trim Panel Replacement |
Rear Side Door Armrest Switch Mount Plate
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Side Door Trim Bolt | - | - | 2.5 (22 lb in) | Rear Side Door Armrest Switch Mount Plate Replacement |

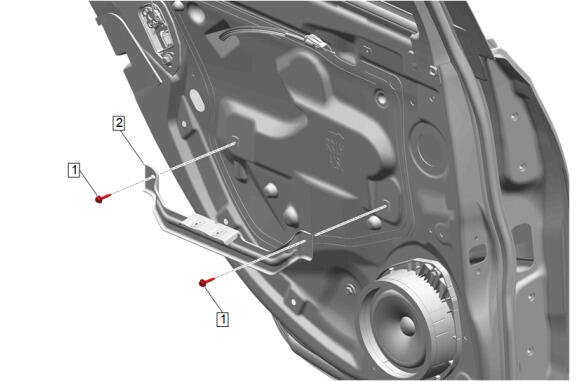

Rear Side Door Pull Handle Bracket
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Side Door Trim Bolt [ 2x ] | - | - | 2.5 (22 lb in) | Rear Side Door Pull Handle Bracket Replacement |
Rear Side Door Trim
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Side Door Inside Handle Bolt | - | - | 2.5 (22 lb in) | Rear Side Door Trim Removal and Installation |
| 2 | Rear Side Door Armrest Pull Cup Bolt [ 2x ] | - | - | 2.5 (22 lb in) | Rear Side Door Trim Removal and Installation |

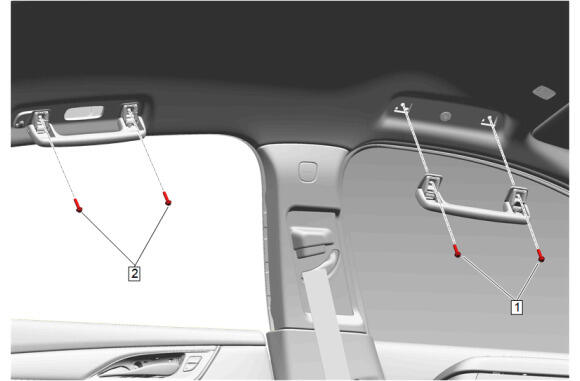

Roof Rail Front and Rear Assist Handle
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Roof Rail Assist Handle Bolt [ 2x ] | - | - | 6 (53 lb in) | Roof Rail Assist Handle Replacement |
| 2 | Roof Rail Rear Assist Handle [ 2x ] | - | - | 6 (53 lb in) | Roof Rail Rear Assist Handle Replacement |

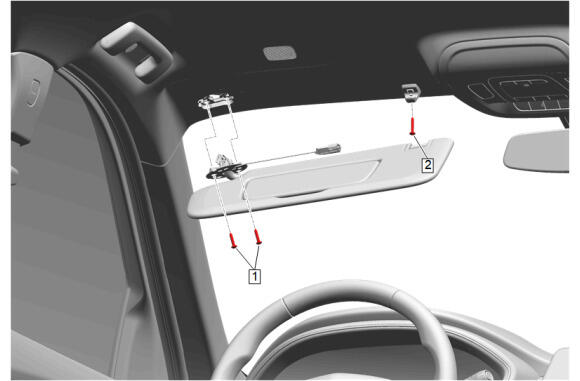

Sunshade and Sunshade Support
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Sunshade Bolt [ 2x ] | - | - | 2 (18 lb in) | Sunshade Replacement |
| 2 | Sunshade Support Bolt | - | - | 2 (18 lb in) | Sunshade Support Replacement |

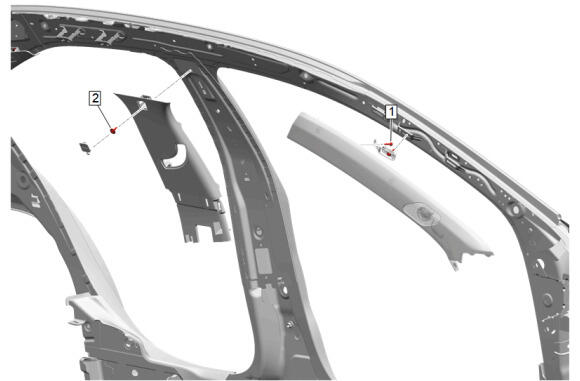

Windshield Garnish Molding/Center Pillar Upper
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Windshield Garnish Molding Bolt [ 2x ] | - | - | 2.5 (22 lb in) | Windshield Garnish Molding Replacement |
| 2 | Center Pillar Upper Garnish Molding Bolt | - | - | 2.5 (22 lb in) | Center Pillar Upper Trim Panel Replacement |
