Traverse LS, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Power Transfer Unit AAM
>>
Power Transfer Unit Case Disassembled View
>>
Power Transfer Unit Mounting
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

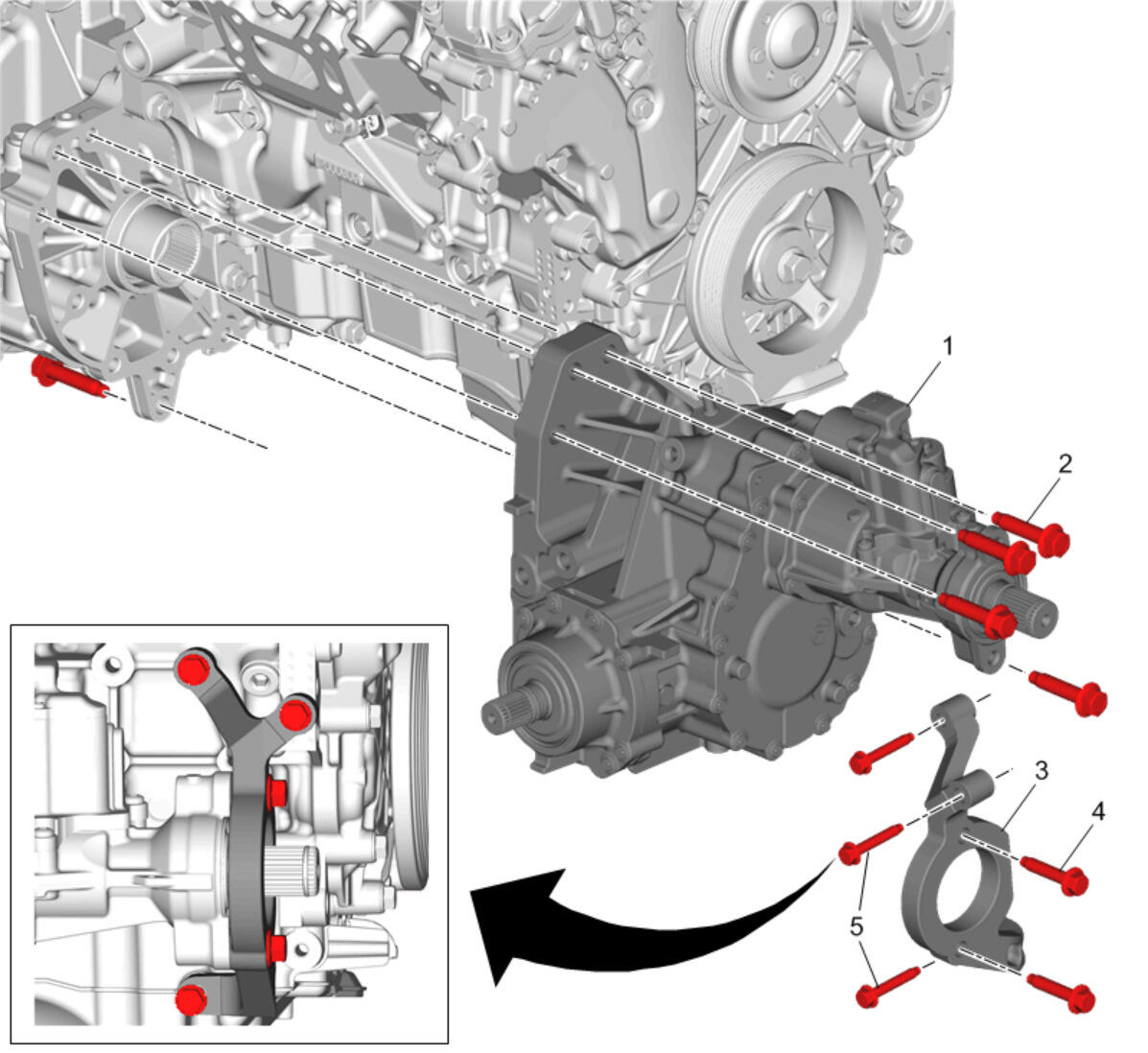

Power Transfer Unit Mounting
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Power Transfer Unit Case
2
Power Transfer Unit Bolt [ 5x ]
3
Transfer Case Bracket
4
Transfer Case Bracket Bolt @ Power Transfer Unit Extension Housing [ 2x ]
5
Transfer Case Bracket Bolt @ Engine [ 3x ]
