Door Lock Switch Replacement - Driver Side

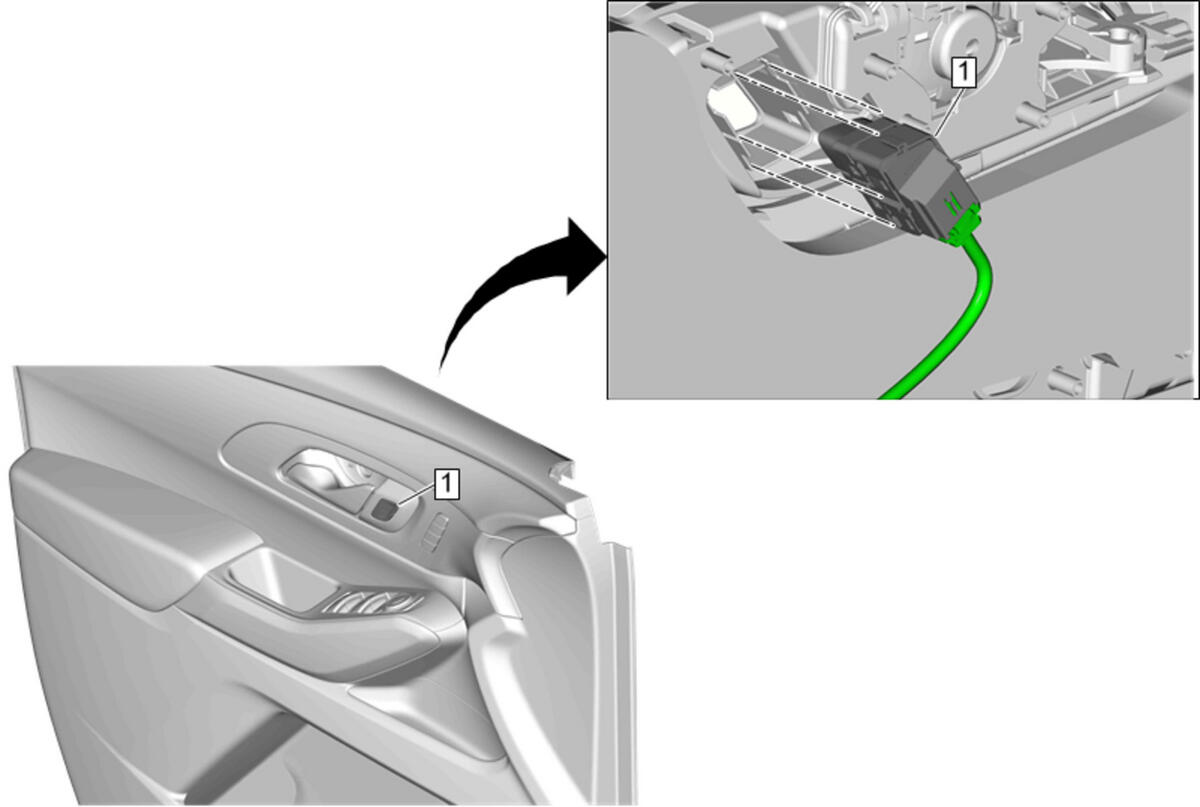

GM4753799Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Side Door Trim Replacement
  2. Reposition insulator, as required.
1 Door Lock Switch - Driver Side

Procedure

  1. From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim.
  2. Disconnect the electrical connector.
