Theft Deterrent Module Replacement

Courtesy of GENERAL MOTORS COMPANY

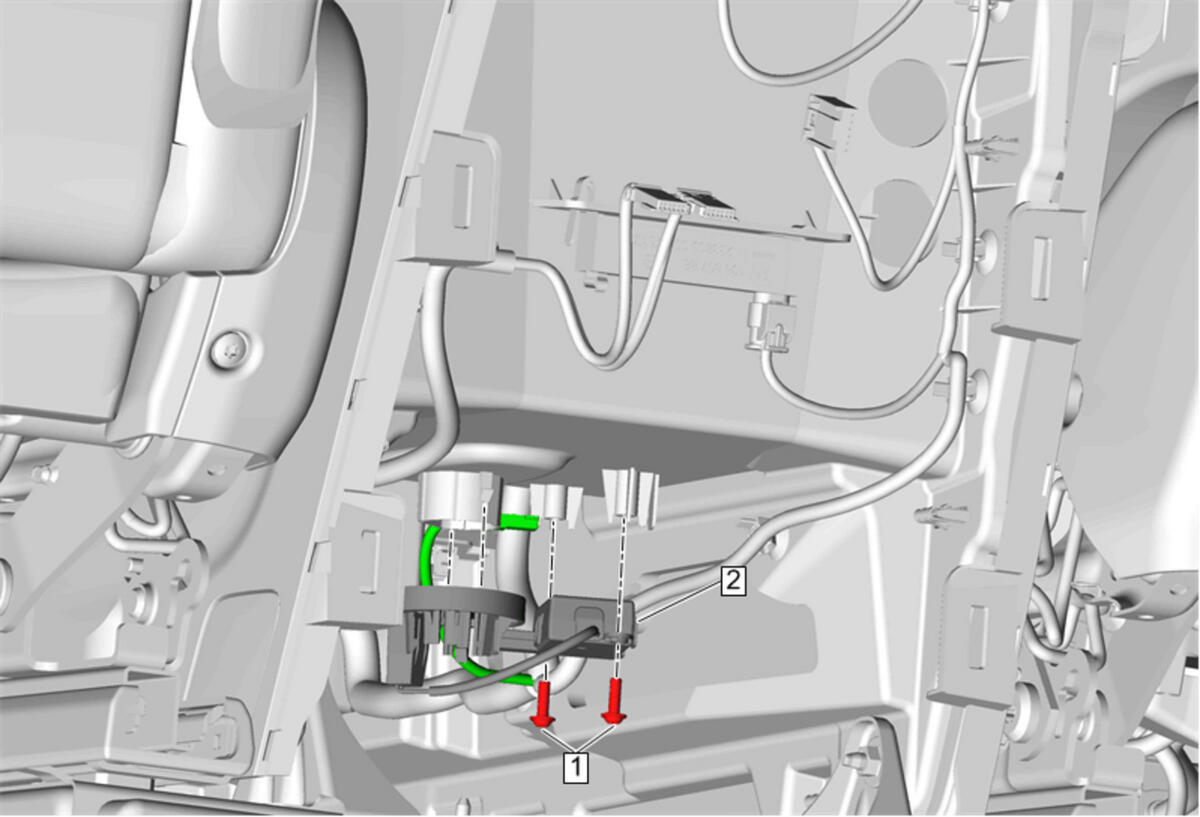

Callout	Component Name
Preliminary Procedure Front Floor Console Rear Trim Panel Replacement
1	Theft Deterrent Module Bolt [ 2x ] CAUTION: Fastener Caution Tighten 1 N.m (9 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Theft Deterrent Module Bolt [ 2x ]

CAUTION:

Tighten
1 N.m (9 lb in)

Theft Deterrent Module

Procedure
