Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

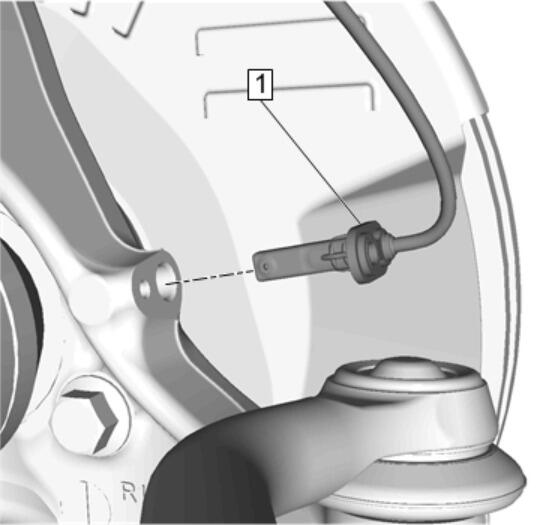

Wheel Speed Sensor (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

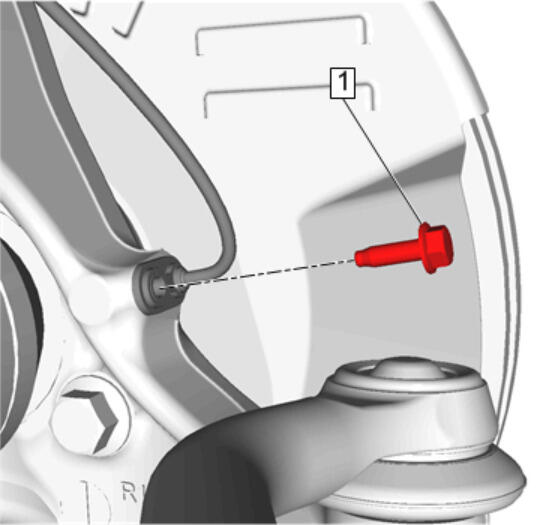

Wheel Speed Sensor Bolt (1) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

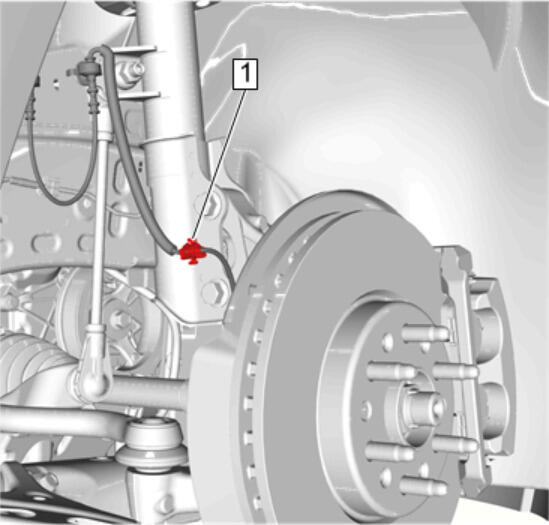

Retainer (1) @ Strut Assembly - Secure
Courtesy of GENERAL MOTORS COMPANY

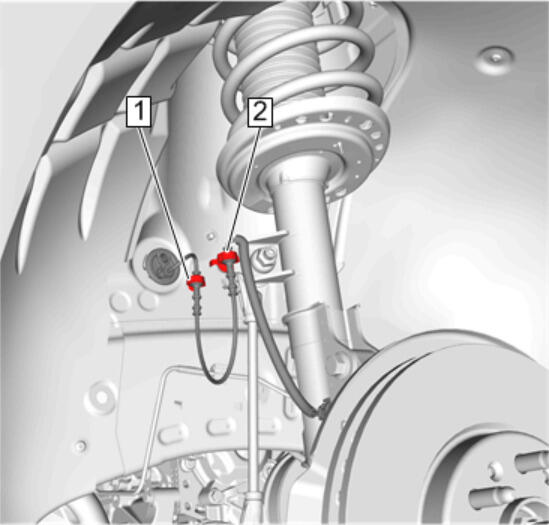

Retainer (1) @ Wheelhouse - Secure
Retainer (2) @ Strut Assembly - Secure
Courtesy of GENERAL MOTORS COMPANY

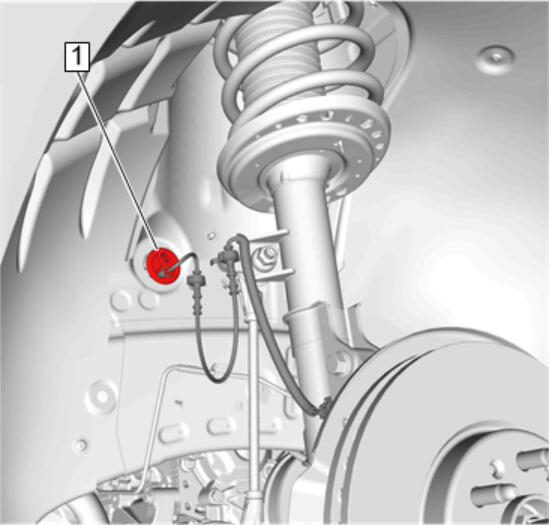

Wheel Speed Sensor Harness Pass Through Grommet (1) - Secure
Install the tire and wheel assembly. Tire and Wheel Removal and Installation
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

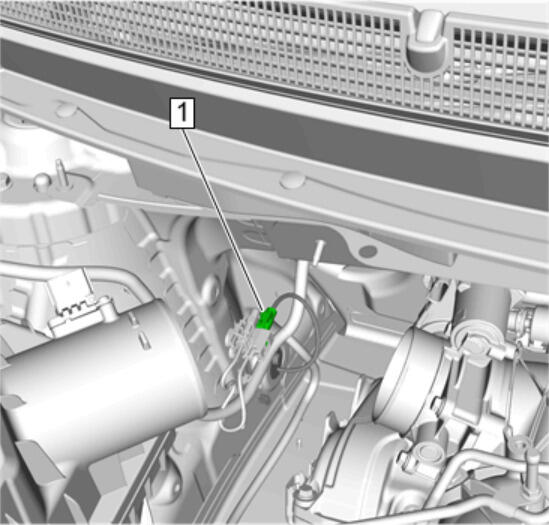

Wheel Speed Sensor Electrical Connector (1) - Connect
Air Cleaner Outlet Duct - Install - Air Cleaner Outlet Duct Replacement
Verify the repair is complete. Diagnostic Repair Verification
