X50D Fuse Block - Battery X1

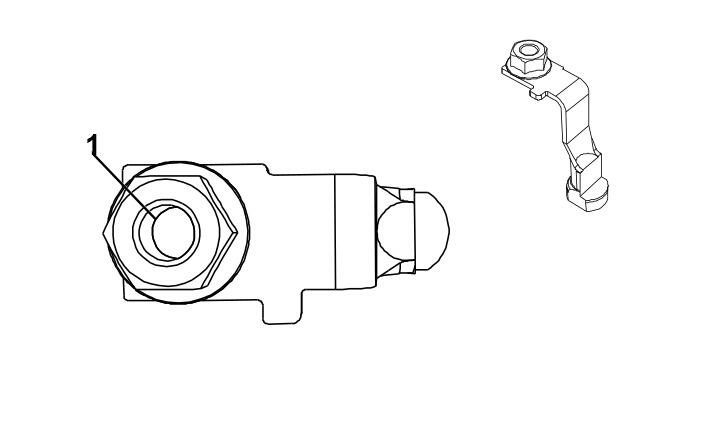

GM4288882Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13595262
  • Service Connector: Service by Cable Assembly - See Part Catalog
  • Description: 1 -Way Ring Terminal
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I Not required No Tool Required No Tool Required
Pin Size Color Circuit Function Terminal Type ID Option
1 20 RD / VT 1242 Battery Positive Voltage I -
