Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

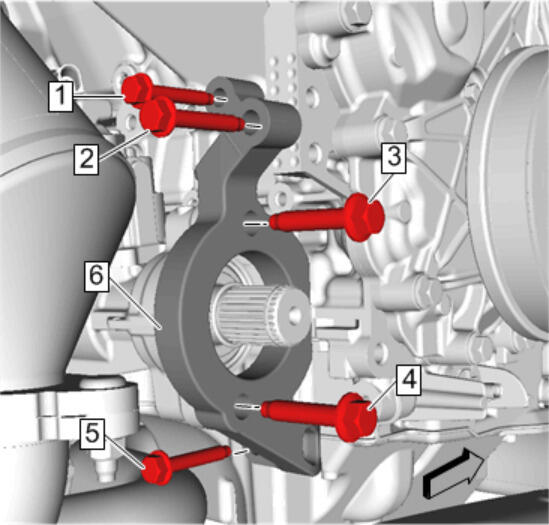

Position the bracket (6) to the transfer case.
Install all bolts (1, 2, 3, 4, 5) finger tight.

CAUTION:

Tighten bolts (1, 2, 5) to 22 N.m (16 lb ft).
Tighten bolts (3, 4) to 58 N.m (43 lb ft).
Install the right wheel drive shaft. Front Wheel Drive Half Shaft Replacement - Right Side (AWD)
