Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

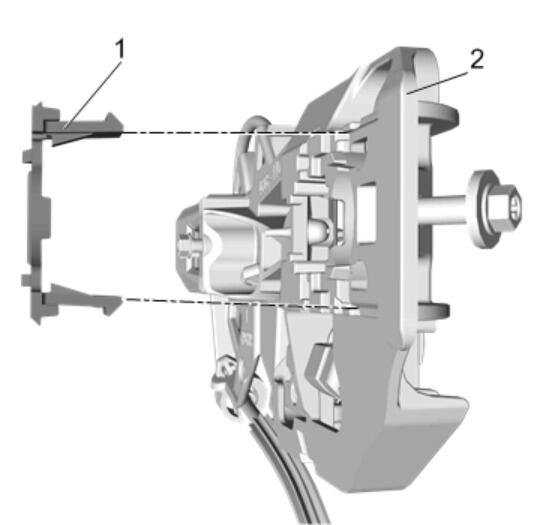

Install the front side door lock cylinder retainer (1) into the front side door outside handle bracket.(2)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure that the front side door lock cylinder is engage all the way into the front side door outside handle bracket and front side door lock cylinder retainer. Insert the key into the front side door lock cylinder, turn left to right checking for binding before install the assembly to the vehicle.

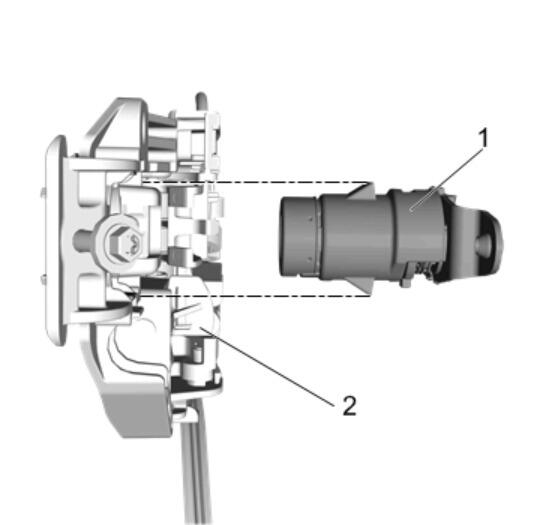

Push forward locking the front side door lock cylinder (1) into the front side door outside handle bracket.(2)
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Cylinder Rod (1) @ Front Side Door Lock Cylinder - Install
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Latch (2) - Install - Front Side Door Latch Replacement
Ensure that the door lock system operates properly before installing the trim.
