Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

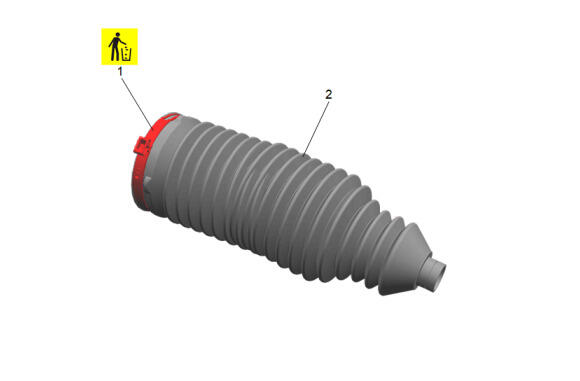

Position a NEW steering gear boot clamp (1) on the steering gear boot (2).
Courtesy of GENERAL MOTORS COMPANY

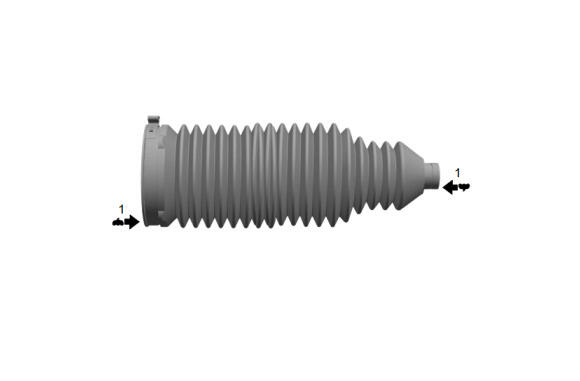

Apply a small layer of grease to the inner mating surfaces (1) of the steering gear boot before installation. Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

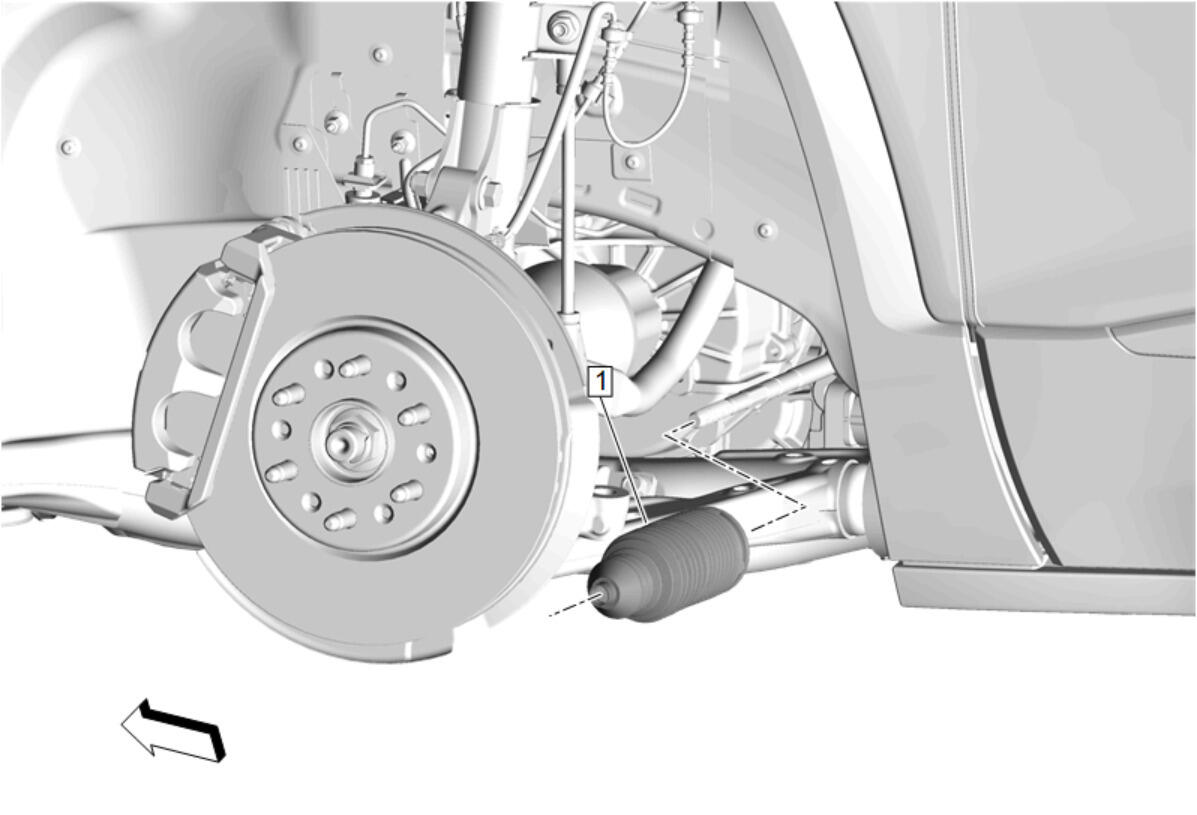

Steering Gear Boot (1) - Install
Using a suitable tool, tighten the steering gear boot clamp.
Courtesy of GENERAL MOTORS COMPANY

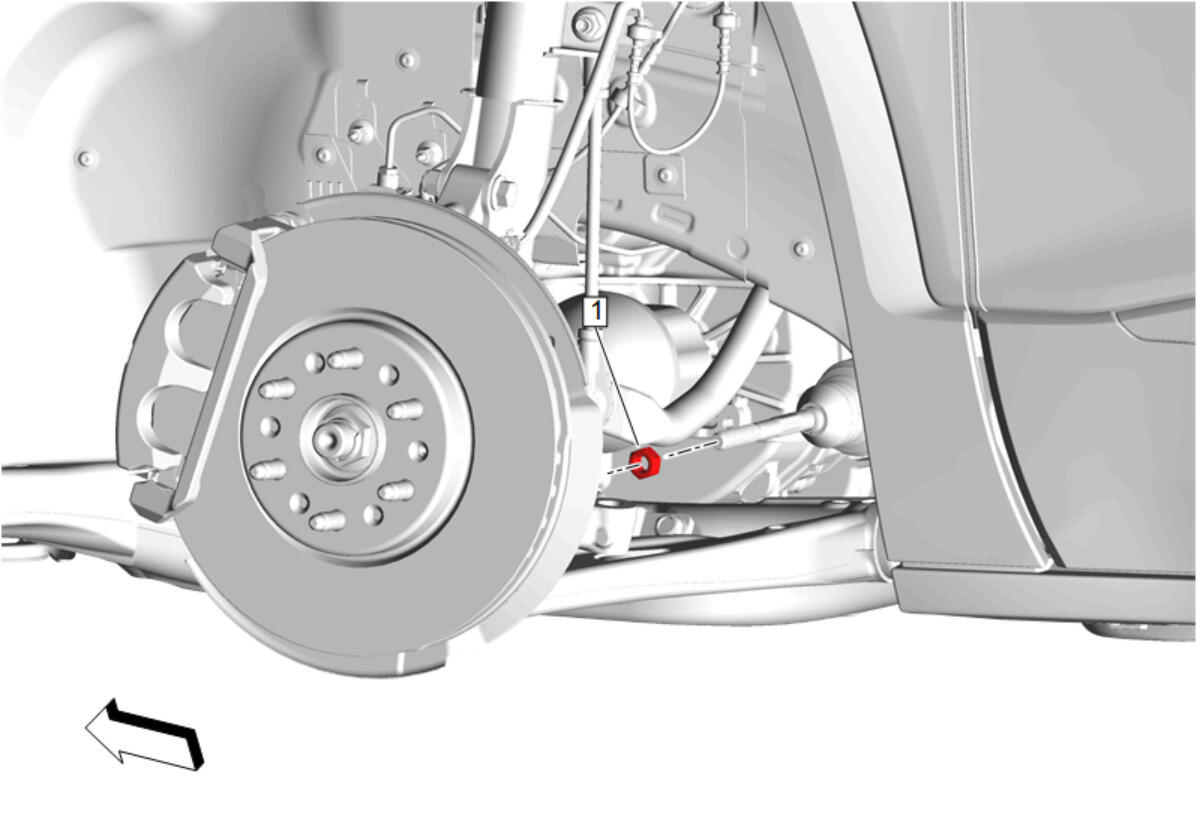

Steering Gear Boot Clamp- Outer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:

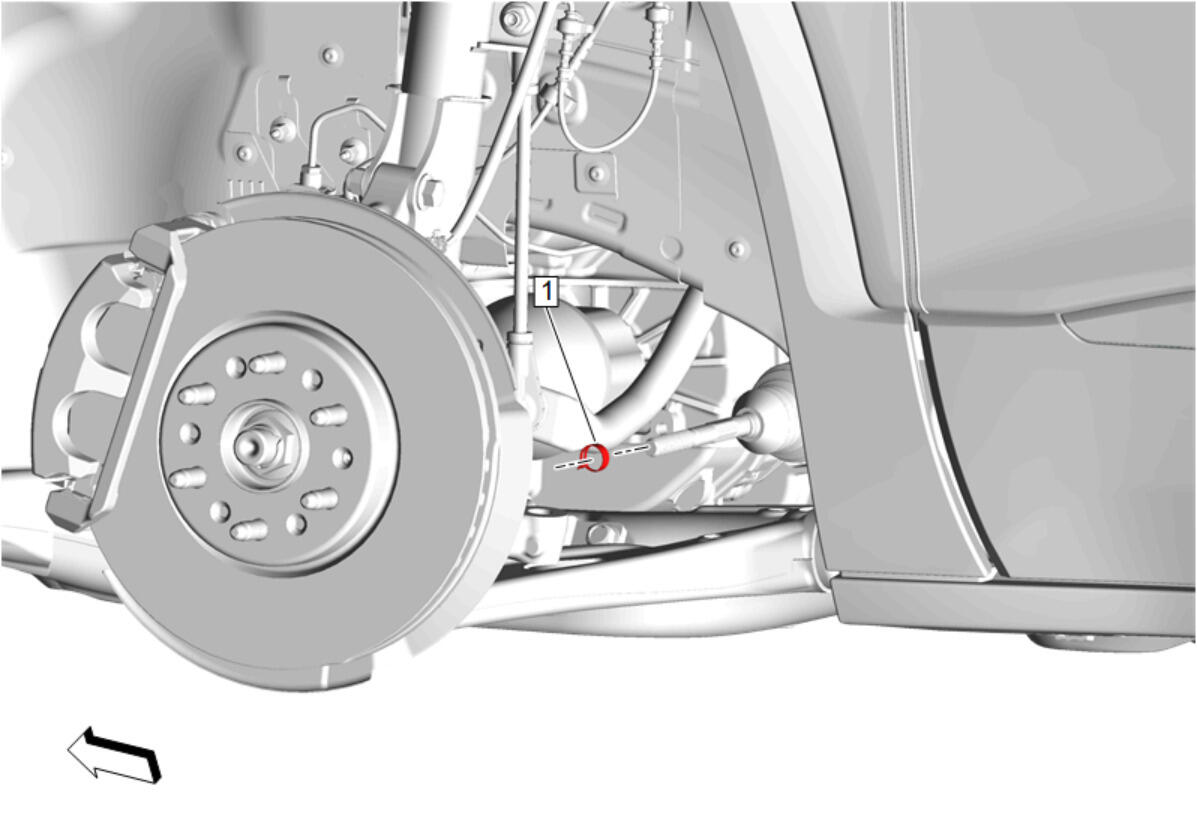

Tighten the steering linkage inner tie rod nut (1) during the front toe adjustment procedure.

Install the steering linkage inner tie rod nut (1) until aligned with the previously placed matched mark on the steering linkage inner tie rod.
Courtesy of GENERAL MOTORS COMPANY

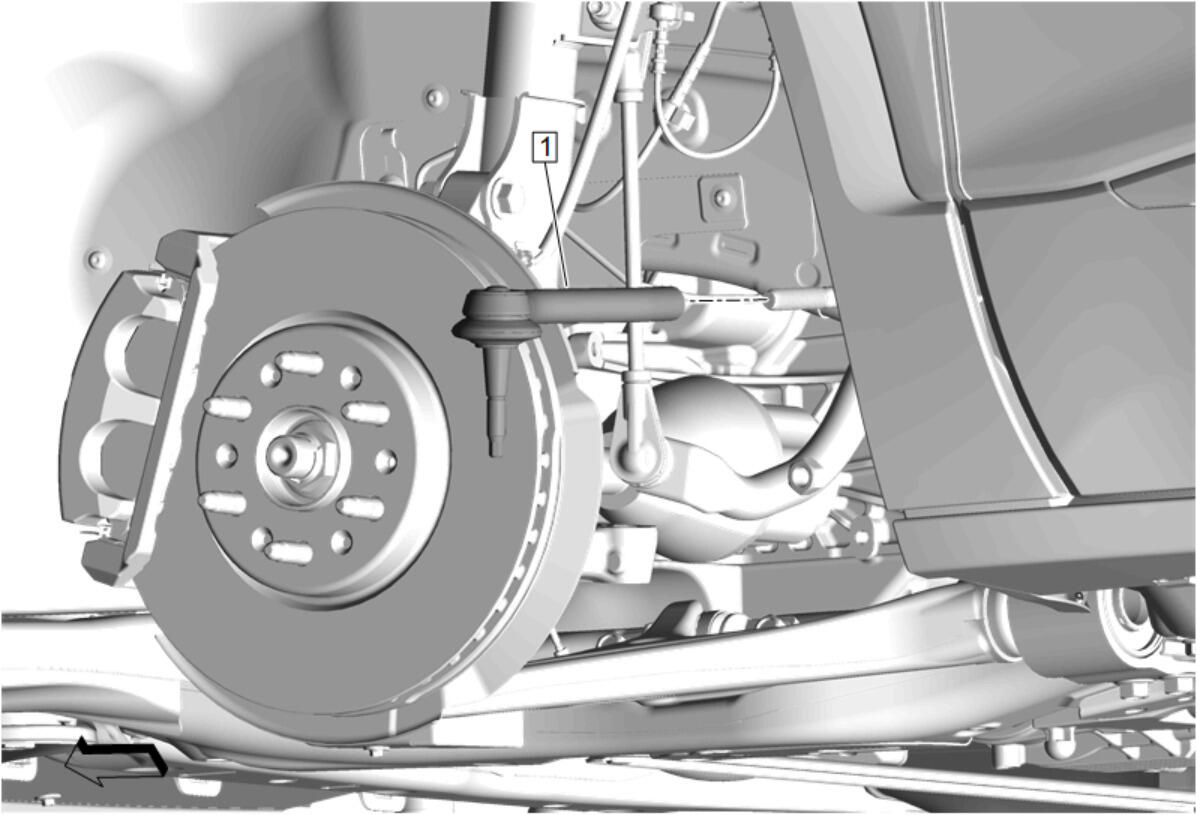

Steering Linkage Outer Tie Rod (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Ensure the Outer Tie Rod Boot is not twisted or deformed during assembly. If the boot is twisted or deformed, damage to the boot will occur.

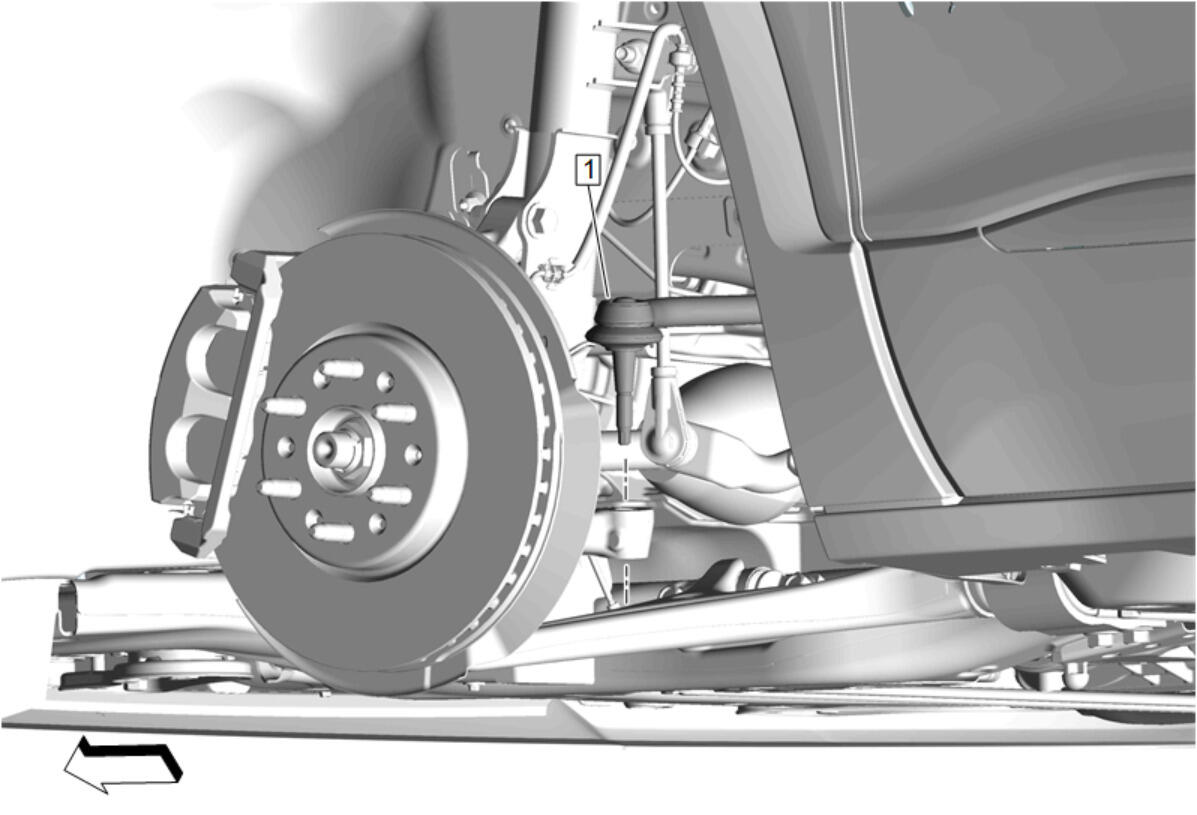

Steering Linkage Outer Tie Rod (1) @ Steering Knuckle - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution .

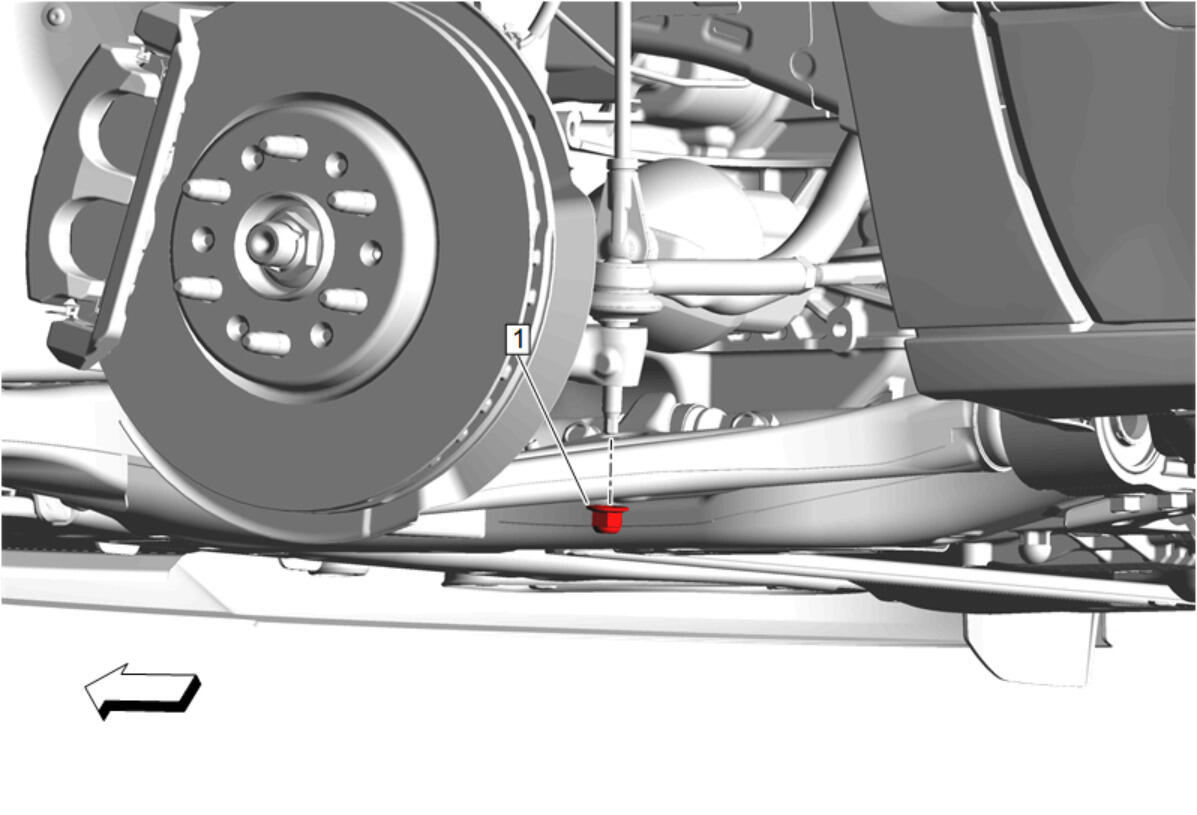

Steering Linkage Outer Tie Rod Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

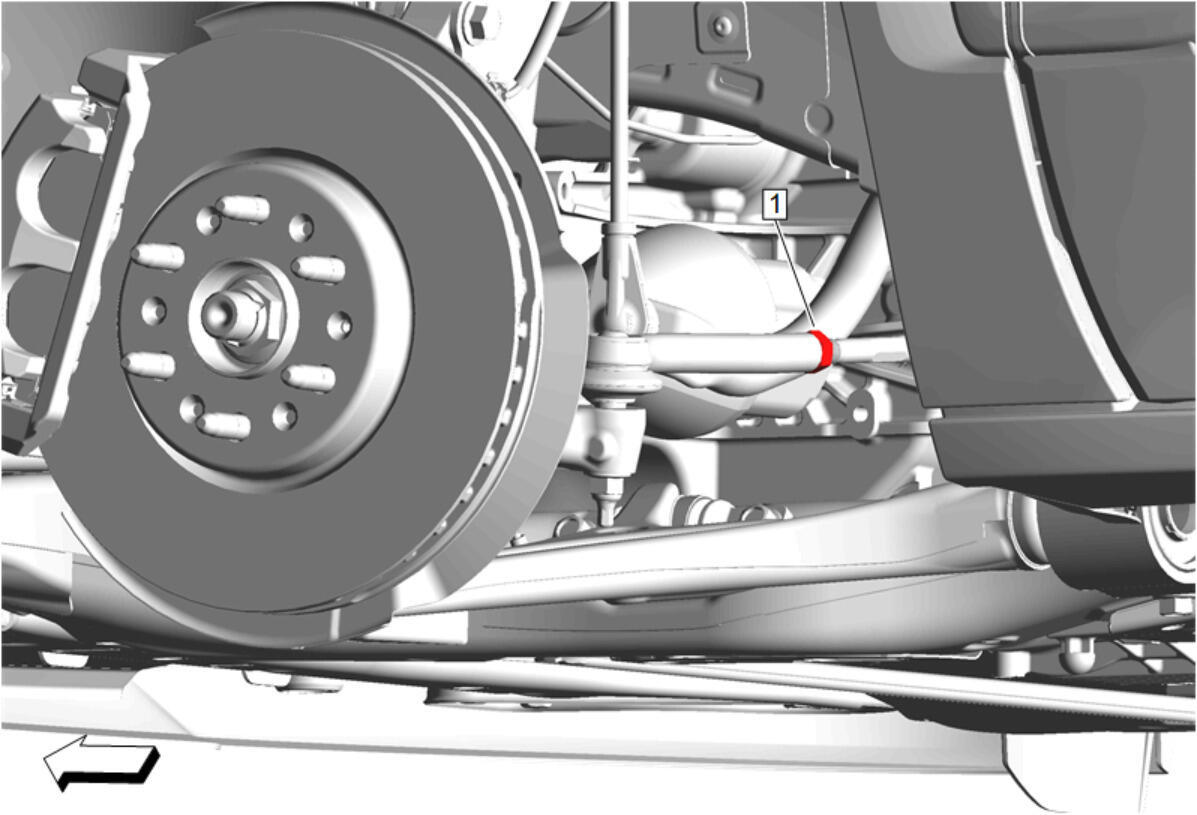

Tighten the steering linkage inner tie rod nut (1) during the front toe adjustment procedure.
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and / or Front Toe Adjustment
