Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

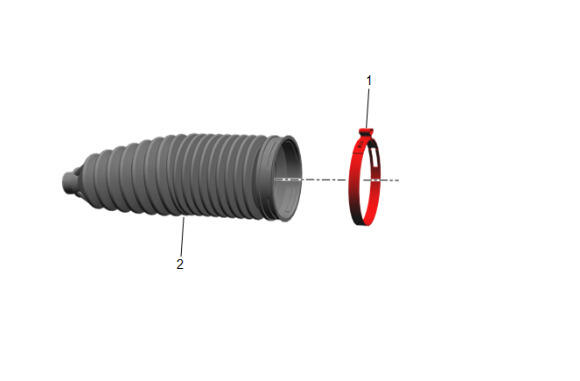

Position a NEW steering gear boot inner clamp (1) on the steering gear boot (2).
Courtesy of GENERAL MOTORS COMPANY

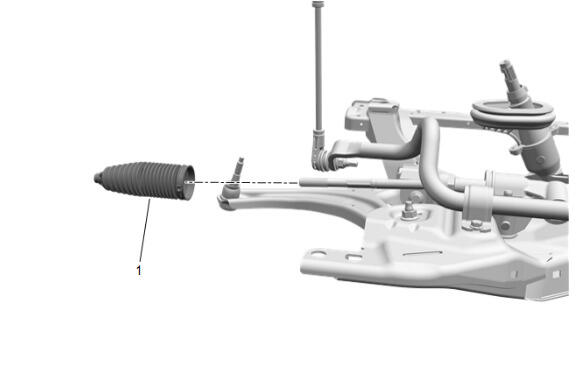

Steering Gear Boot (1) - Install
Courtesy of GENERAL MOTORS COMPANY

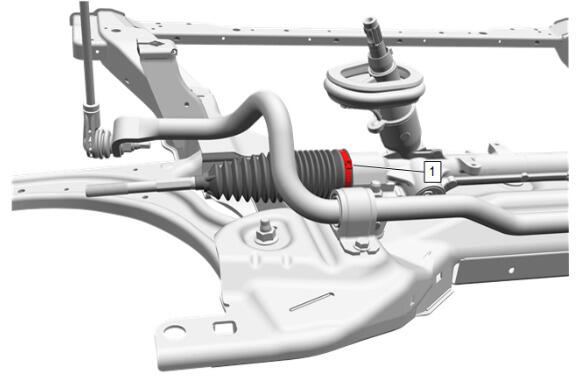

Steering Gear Boot Inner Clamp - Large Clamp (1) - Tighten

Use the CH-804 Boot Clamp Plier.
Courtesy of GENERAL MOTORS COMPANY

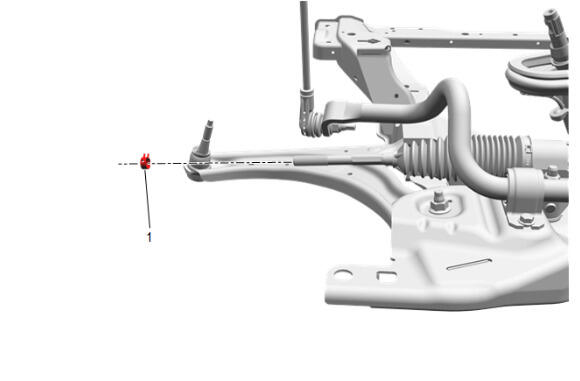

Steering Gear Boot Inner Clamp - Small Clamp (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:

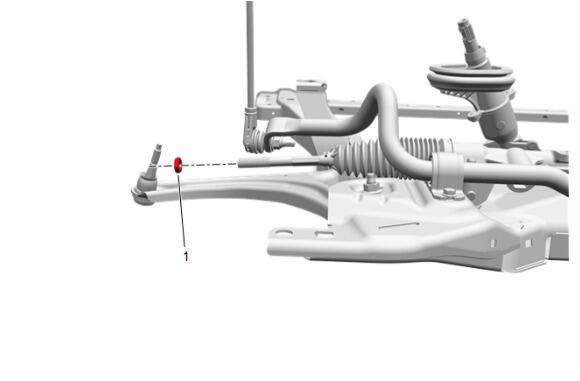

Tighten the steering linkage tie rod adjuster nut (1) during the front toe adjustment procedure.

Install the steering linkage tie rod adjuster nut (1) until aligned with the previously placed matched mark on the steering linkage inner tie rod.
Courtesy of GENERAL MOTORS COMPANY

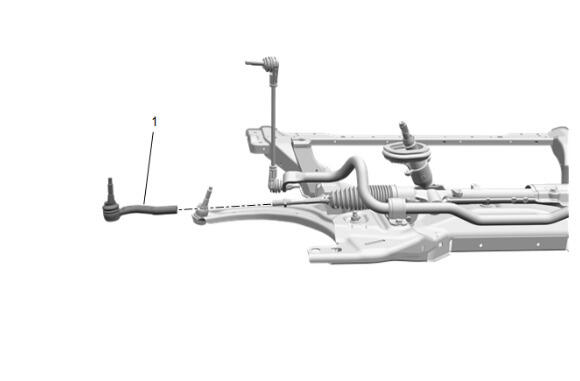

Steering Linkage Outer Tie Rod (1) - Install
Drivetrain and Front Suspension Cradle - Install - Drivetrain and Front Suspension Cradle Removal and Installation
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Lower the vehicle.
Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
