Installation Procedure

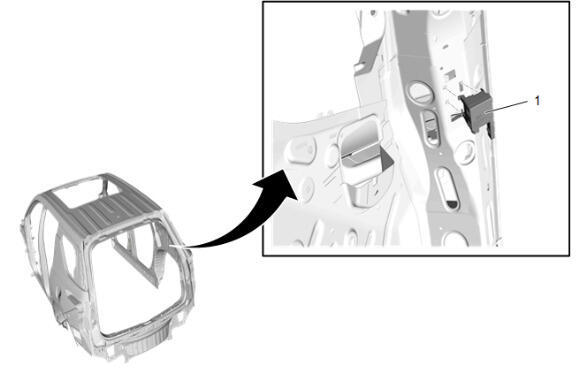

  1. GM6380201Courtesy of GENERAL MOTORS COMPANY

    Remote Function Actuator Module(1) - Install

  2. Ensure that the retaining tabs are fully secured.
  3. Connect the electrical connectors.

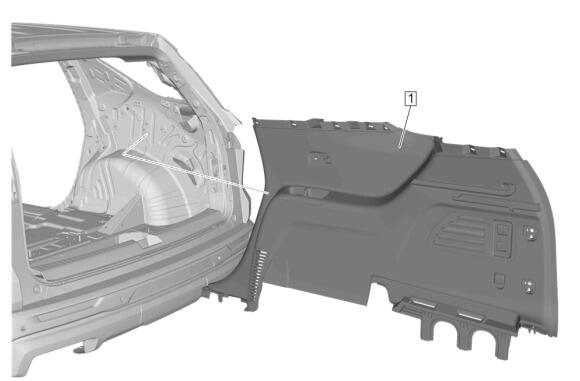

  4. GM6399526Courtesy of GENERAL MOTORS COMPANY

    Quarter Lower Rear Trim Panel- Right Side(1) - Install

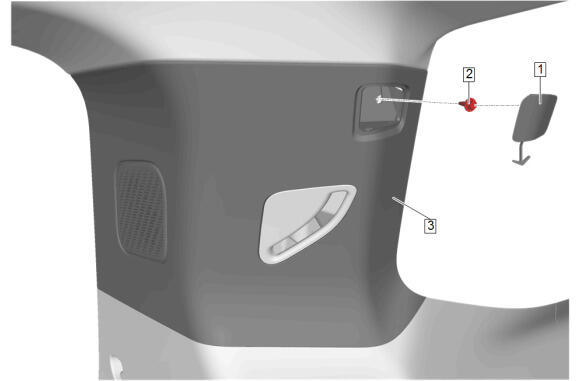

  5. GM6399466Courtesy of GENERAL MOTORS COMPANY

    Body Rear Corner Upper Garnish Molding- Right Side(3) - Install

    6. CAUTION:

    Refer to Fastener Caution .

  6. Body Rear Corner Upper Garnish Molding Bolt- Right Side(2) - Install and tighten - Fastener Specifications
  7. Body Rear Corner Upper Garnish Molding Cap - Right Side(1) - Install
  8. Enable the SIR System. SIR Disabling and Enabling
