Removal Procedure

    NOTE:

    The headlining trim panel does not need to be fully removed from the vehicle.

  1. Headlining Trim Panel - Remove Headlining Trim Panel Removal and Installation (CAJ)Headlining Trim Panel Removal and Installation (-CAJ)

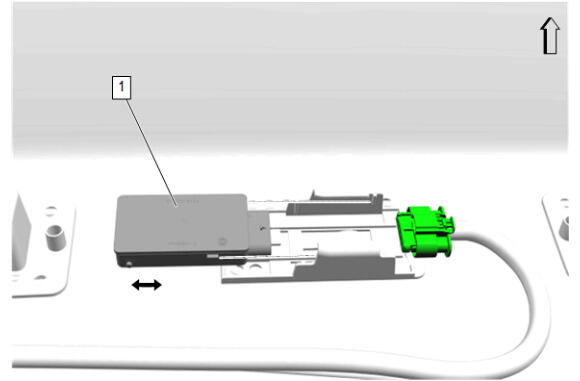

  2. GM6408326Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  3. Release the retaining tabs.
  4. UHF Low Energy Remote Control Access Sensor Transceiver(1) - Remove
