Installation Procedure

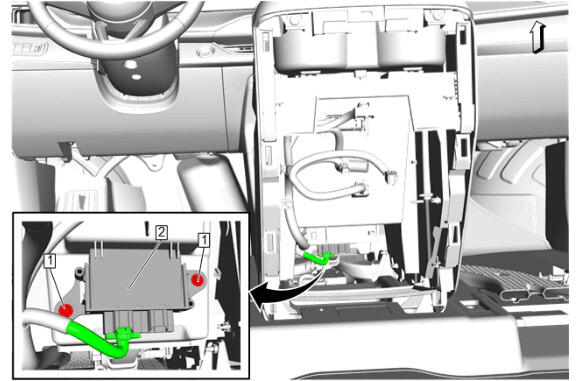

Courtesy of GENERAL MOTORS COMPANY

UHF Short Range Low Energy Remote Control Access Transceiver(2) - Install

CAUTION:

Refer to Fastener Caution .

UHF Short Range Low Energy Remote Control Access Transceiver Bolt (1) - Install and tighten[2x] - Fastener Specifications
Connect the electrical connector.

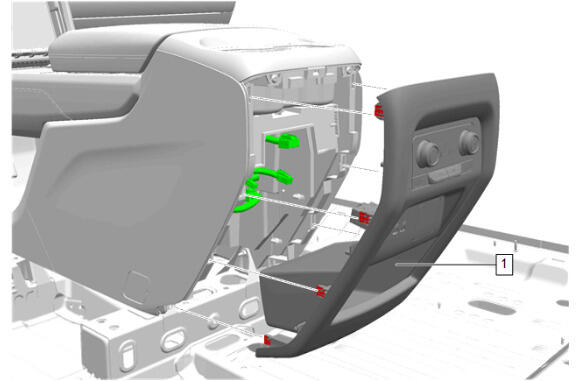

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Front Floor Console Rear Trim Panel(1) - Install
