Fastener Specifications
NOTE:
Callout items in the following chart represent components shown in graphic above.

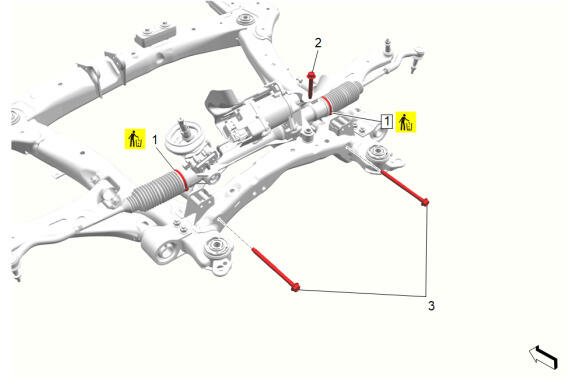

Electric Belt Drive Rack and Pinion Steering Gear
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Gear Boot Inner Clamp [2x] | Yes | - | - | Steering Gear Boot Replacement |
| 2 | Steering Gear Bolt | - | - | 100 N.m (74 lb ft) | Electric Belt Drive Rack and Pinion Steering Gear Replacement |
| 3 | Steering Gear Bolt [2x] | - | - | First Pass: 100 N.m (74 lb ft) Final Pass: (45 - 60) degrees |
Electric Belt Drive Rack and Pinion Steering Gear Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

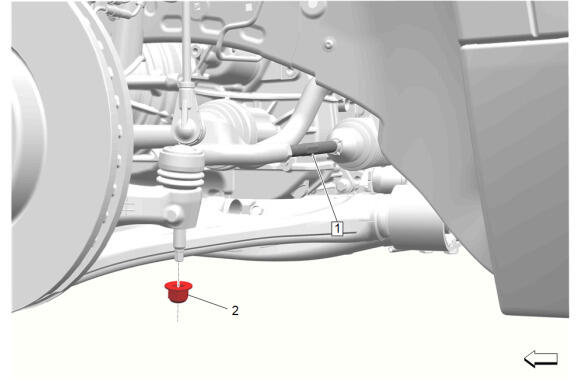

Steering Linkage
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Linkage Inner Tie Rod | - | - | 100 N.m (74 lb ft) | Steering Linkage Inner Tie Rod Replacement |
| 2 | Steering Linkage Outer Tie Rod Nut | - | - | First Pass: 35 N.m (26 lb ft) Final Pass: (90 - 100) degrees |
Steering Linkage Outer Tie Rod Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

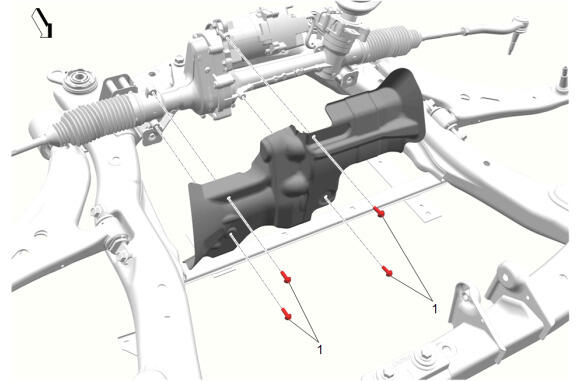

Steering Gear Heat Shield
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Gear Heat Shield Bolt | - | - | 10 N.m (89 lb in) | Power Steering Assist Motor Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

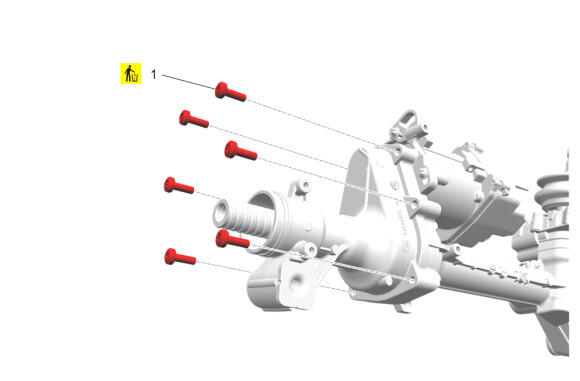

Power Steering Assist Motor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Gear Housing Cover Bolt [6x] | Yes | - | 25 N.m (18 lb ft) | Power Steering Assist Motor Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

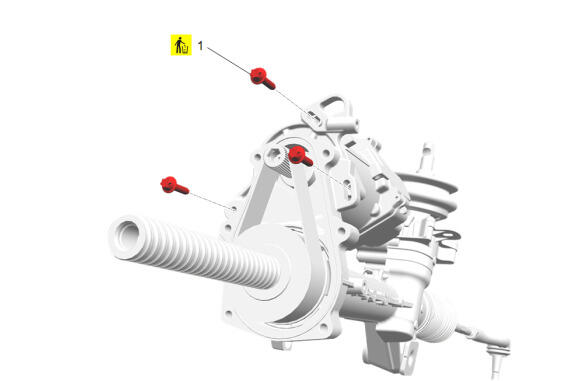

Power Steering Assist Motor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Power Steering Assist Motor Pivot Bolt [3x] | Yes | - | 10 N.m (89 lb in) | Power Steering Assist Motor Replacement |
